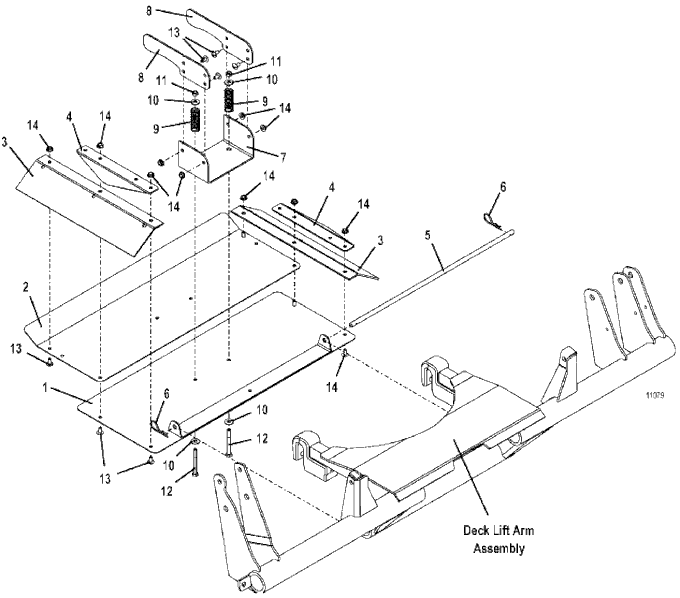

3461R Rear Discharge Deck Discharge Shield Assembly - 2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645763 - 3552/61 Discharge Shield | Add To Cart | |
| 2 | 722961 - 35 Series Rear Discharge Shield | Add To Cart | |
| 3 | 424170 - 3552/61 Discharge Shield Flap | Add To Cart | |
| 4 | 724972 - 35 R Discharge Flap Support | Call For Details | |
| 5 | 780425 - Rear Discharge Shield Pin | Add To Cart | |
| 6 | 260523 - Hair Pin | Add To Cart | |
| 7 | 724764 - 35 Series Short Shield Holder | Call For Details | |
| 8 | 774346 - Shield Support Arm Plate | Call For Details | |
| 9 | 283320 - Compression Spring | Add To Cart | |
| 10 | 257020 - Washer | Add To Cart | |
| 11 | 253440 - Nylon Insert Nut | Add To Cart | |
| 12 | 243050 - Hex Bolt | Add To Cart | |
| 13 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 14 | 253025 - Whiz Nut | Add To Cart |
