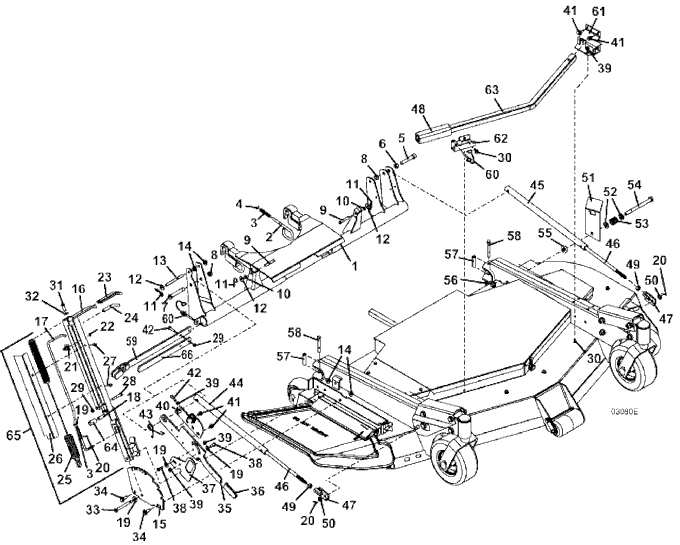

3461R Rear Discharge Decks Lift Arm & Linkage Assembly - 2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 604547 - 3452 Lift Arm Assembly | Add To Cart | |
| - | 604549 - 3461 Lift Arm Assembly | Call For Details | |
| 2 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 3 | 283285 - Compression Spring | Add To Cart | |
| 4 | 263490 - External Retainer | Add To Cart | |
| 5 | 259640 - Socket Head Screw | Add To Cart | |
| 6 | 902282 - Actuator Stop Spacer | Add To Cart | |
| 7 | 243609 - Hex Bolt | Add To Cart | |
| 8 | 253930 - Lock Nut | Add To Cart | |
| 9 | 261362 - Clevis Pin | Add To Cart | |
| 10 | 262950 - Push-On Retainer | Add To Cart | |
| 11 | 260523 - Hair Pin | Add To Cart | |
| 12 | 257040 - Washer | Add To Cart | |
| 13 | 830037 - Drilled Stud | Add To Cart | |
| 14 | 253043 - Whiz Nut | Add To Cart | |
| 15 | 726036 - 3461 Lever Mount | Add To Cart | |
| - | 162188 - 33/34 Series Cutting Height Decal | Add To Cart | |
| 16 | 824578 - 3452/3461 Lift Lever | Add To Cart | |
| 17 | 730375 - Lever Assist Rod | Add To Cart | |
| 18 | 902273 - Lift Lever Bolt Sleeve | Add To Cart | |
| 19 | 257030 - Washer | Add To Cart | |
| 20 | 260650 - Cotter Pin | Add To Cart | |
| 21 | 423110 - Rod Retainer | Add To Cart | |
| 22 | 252041 - #8 Screw | Add To Cart | |
| 23 | 422155 - Handle Grip | Add To Cart | |
| 24 | 422158 - Handle Grip | Add To Cart | |
| 25 | 604518 - Lift Assist Spring Assembly | Add To Cart | |
| 26 | 722716 - Lever Assist Spring Shield | Add To Cart | |
| 27 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 28 | 243225 - Hex Bolt | Add To Cart | |
| 29 | 253450 - Nylon Insert Nut | Add To Cart | |
| 30 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 31 | 243330 - Hex Bolt | Add To Cart | |
| 32 | 257412 - Lock Washer | Add To Cart | |
| 33 | 243380 - Hex Bolt with Shank | Add To Cart | |
| 34 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 35 | 824174 - 33 Series F/A Lift Connecting Arm | Add To Cart | |
| 36 | 422153 - Black Handle Grip | Add To Cart | |
| 37 | 783063 - L48 Latch Connecting Arm | Add To Cart | |
| 38 | 259722 - Shoulder Bolt | Add To Cart | |
| 39 | 253035 - Whiz Nut | Add To Cart | |
| 40 | 824566 - Lift Linkage Adjustment Bracket | Add To Cart | |
| 41 | 253189 - Whiz Bolt | Add To Cart | |
| 42 | 243205 - Hex Bolt | Add To Cart | |
| 43 | 284423 - Torsion Spring | Add To Cart | |
| 44 | 644472 - 3452 right Linkage | Add To Cart | |
| - | 644547 - Lift Linkage Tube - 3452 left / 3462 right | Add To Cart | |
| 45 | 644547 - Lift Linkage Tube - 3452 left / 3462 right | Add To Cart | |
| - | 644548 - left Lift Linkage Tube - 3461 | Add To Cart | |
| 46 | 243667 - 3452 / 3461 Round Head Bolt(for decks with serial number 5541833 and above)NOTE: Order this part if your bolt measures 12 inch | Add To Cart | |
| 47 | 644068 - Lift Rod Bracket | Add To Cart | |
| 48 | 422177 - Foam Grip | Add To Cart | |
| 49 | 254470 - Nut | Add To Cart | |
| 50 | 257063 - Washer | Add To Cart | |
| 51 | 729237 - 3452 / 3461 Deck Latch | Add To Cart | |
| 52 | 257067 - Washer | Add To Cart | |
| 53 | 283332 - Compression Spring | Add To Cart | |
| 54 | 243640 - Hex Bolt | Add To Cart | |
| 55 | 902292 - Tilt Latch Spacer | Add To Cart | |
| 56 | 253067 - Spiral Flange Lock Nut | Add To Cart | |
| 57 | 902284 - Roller Mount Spacer | Add To Cart | |
| 58 | 243365 - Hex Bolt | Add To Cart | |
| - | 253890 - Lock Nut | Add To Cart | |
| 59 | 643944 - Offset Traction Kit Tool | Add To Cart | |
| - | 604843 - Traction Kit Lever Assembly | Add To Cart | |
| 60 | 261624 - Linch Pin | Add To Cart | |
| 61 | 644060 - Lift Assist Bar Bracket | Call For Details | |
| 62 | 729330 - Lift Bar Mount Bracket | Add To Cart | |
| 63 | 944050 - 3452 Lift Bar | Add To Cart | |
| - | 944055 - 3461 Lift Bar | Add To Cart | |
| 64 | 942158 - Lift Lever Bolt Outer Sleeve | Add To Cart | |
| 65 | 606521 - 3452 / 3461 Lift Lever Assembly | Add To Cart | |
| 66 | 782979 - External Traction Kit Lever | Add To Cart |
