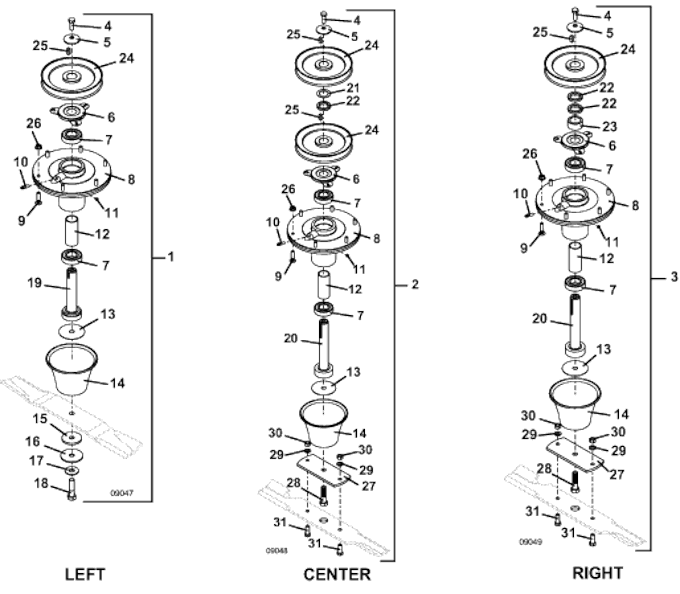

3552R Rear Discharge Deck Blade Spindle Assembly - 2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623763 - Left Spindle Assembly (includes items 4-19) | Add To Cart | |
| 2 | 623752 - Center Spindle Assembly (includes items 3-14, 20-22, & 27-31) | Add To Cart | |
| 3 | 623752 - Right Center Spindle Assembly (includes items 4-14, 20, 22-23, & 27-31) | Add To Cart | |
| 4 | 243331 - Hex Bolt | Add To Cart | |
| 5 | 257041 - Cupped Washer | Add To Cart | |
| 6 | 721167 - Bearing Shield | Add To Cart | |
| 7 | 110081 - 25mm 2 Reg. Seal Ball Bearing | Add To Cart | |
| 8 | 320550 - Machined Spindle Housing | Add To Cart | |
| 9 | 247141 - Ribbed Neck Round Head Bolt | Add To Cart | |
| 10 | 280745 - Zerk Grease Fitting | Add To Cart | |
| 11 | 280705 - Relief Plug | Add To Cart | |
| 12 | 903643 - Deep Spindle Bearing Spacer | Add To Cart | |
| 13 | 772061 - Washer | Add To Cart | |
| 14 | 423680 - Deflector Cone | Add To Cart | |
| 15 | 421200 - Fiber Washer | Add To Cart | |
| 16 | 257061 - Washer | Add To Cart | |
| 17 | 257057 - Hardened-Blade Spindle Washer | Add To Cart | |
| 18 | 243583 - Grade 8 Flange Hex Bolt | Add To Cart | |
| 19 | 604775 - 5.75 Spindle Shaft Assembly | Add To Cart | |
| 20 | 605775 - Spindle Shaft Assembly | Add To Cart | |
| 21 | 257104 - Washer | Add To Cart | |
| 22 | 282607 - Spacer | Add To Cart | |
| 23 | 282630 - Spacer | Add To Cart | |
| 24 | 415892 - Sheave | Add To Cart | |
| 25 | 281580 - Square Key | Add To Cart | |
| 26 | 253035 - Whiz Nut | Add To Cart | |
| 27 | 693500 - CCW Blade Mount with Decal | Add To Cart | |
| 28 | 243582 - Left Handed Hex Bolt | Add To Cart | |
| 29 | 257412 - Lock Washer | Add To Cart | |
| 30 | 254450 - Nut | Add To Cart | |
| 31 | 243330 - hex Bolt | Add To Cart | |
| 32 | 257106 - Washer | Add To Cart | |
| 33 | 257107 - Washer | Add To Cart |
