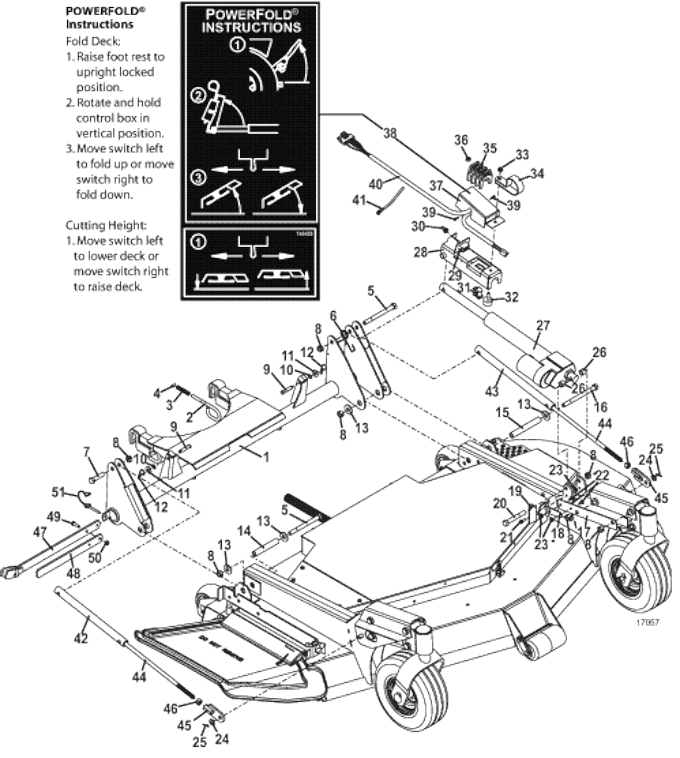

3661 Side Discharge Front Mount DeckLift Arm with Optional Electric Powerfold Actuator - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 604556 - 3661 Lift Arm Assembly | Call For Details | |
| 2 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 3 | 283285 - Compression Spring | Add To Cart | |
| 4 | 263490 - External Retainer | Add To Cart | |
| 5 | 243635 - Hex Bolt | Add To Cart | |
| 6 | 284423 - Torsion Spring | Add To Cart | |
| 7 | 243580 - Hex Bolt | Add To Cart | |
| 8 | 253930 - Lock Nut | Add To Cart | |
| 9 | 261362 - Clevis Pin | Add To Cart | |
| 10 | 262950 - Push-On Retainer | Add To Cart | |
| 11 | 257040 - Washer | Add To Cart | |
| 12 | 260523 - Hair Pin | Add To Cart | |
| 13 | 257060 - Washer | Add To Cart | |
| 14 | 902002 - 3472 Right Lift Arm pivot Tube | Add To Cart | |
| 15 | 902001 - 3472 Left Lift Arm Pivot Tube | Add To Cart | |
| 16 | 243640 - Hex Bolt | Add To Cart | |
| 17 | 774674 - Cut Height Arm | Call For Details | |
| 18 | 729493 - Cut Height Plate | Call For Details | |
| 19 | 724999 - 3661 Cut Height Pointer | Call For Details | |
| 20 | 243610 - Hex Bolt | Add To Cart | |
| 21 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 22 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 23 | 253025 - Whiz Nut | Add To Cart | |
| 24 | 257063 - Washer | Add To Cart | |
| 25 | 260650 - Cotter Pin | Add To Cart | |
| 26 | 902303 - Spacer | Add To Cart | |
| 27 | 180035 - 12V DC Actuator | Add To Cart | |
| 28 | 644805 - Electric Lift Switch Mount | Add To Cart | |
| 29 | 184084 - Toggle | Add To Cart | |
| 30 | 425200 - Toggle Switch Boot | Add To Cart | |
| 31 | 183867 - Snap Mount Plunger SPST NC Switch | Add To Cart | |
| 32 | 424056 - Bumper with Stud | Add To Cart | |
| 33 | 253035 - Whiz Nut | Add To Cart | |
| 34 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 35 | 423697 - Powerfold Height Adjustment Spacer Mount | Add To Cart | |
| 36 | 902297 - Height Adjustment Spacer | Add To Cart | |
| 37 | 722005 - Electric Lift Switch Shield Mount | Add To Cart | |
| 38 | 165430 - Powerfold Instructions Decal | Add To Cart | |
| 39 | 250169 - Hex Machine Screw | Add To Cart | |
| 40 | 605965 - Deck Tilt/Height Adjustment Wiring Assembly | Add To Cart | |
| 41 | 423150 - Tie | Call For Details | |
| 42 | 644448 - Right Lift Tube | Add To Cart | |
| 43 | 644455 - Left Lift Tube | Add To Cart | |
| 44 | 243670 - Round Head Bolt | Add To Cart | |
| 45 | 644068 - Lift Rod Bracket | Add To Cart | |
| 46 | 254470 - Nut | Add To Cart | |
| 47 | 604843 - Traction Kit Lever Assembly | Add To Cart | |
| 47 | 643944 - Offset Traction Kit Tool | Add To Cart | |
| 48 | 782979 - Traction Kit Lever Extension | Add To Cart | |
| 49 | 243205 - Hex Bolt | Add To Cart | |
| 50 | 253450 - Nylon Insert Nut | Add To Cart | |
| 51 | 261624 - Linch Pin | Add To Cart |
