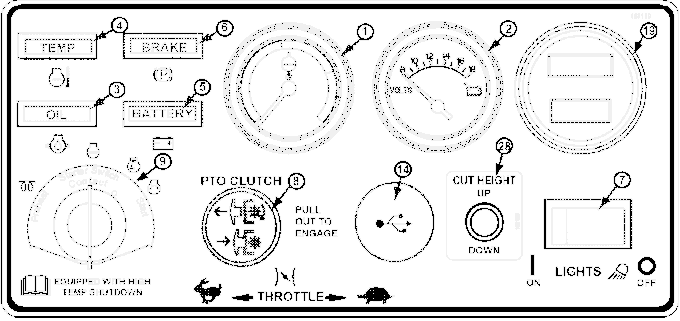

400D 1.3L Console Diagram - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 141165 - Zoned Electric Temperature Gauge | Add To Cart | |
| 2 | 141203 - Voltmeter Gauge | Add To Cart | |
| - | 182007 - Gauge Light | Call For Details | |
| 3 | 182327 - Oil Indicator Light | Add To Cart | |
| 4 | 182328 - Temperature Indicator Light | Add To Cart | |
| 5 | 182325 - Battery Indicator Light | Add To Cart | |
| 6 | 182326 - Brake Indicator Light | Add To Cart | |
| 7 | 183871 - Twist-In Rocker Switch | Add To Cart | |
| 8 | 183925 - Push / Pull Switch | Add To Cart | |
| 9 | 183827 - Sealed Key Switch - Kubota | Add To Cart | |
| - | 101106 - Double Notch Ignition Key - Kubota | Add To Cart | |
| 14 | 141625 - USB Charging Receptacle | Call For Details | |
| - | 141626 - USB Receptacle Cap | Call For Details | |
| - | 141627 - USB Receptacle Plug | Call For Details | |
| 19 | 141122 - Console Mount Fuel Guage | Add To Cart | |
| 28 | 184084 - Toggle Switch | Add To Cart |
