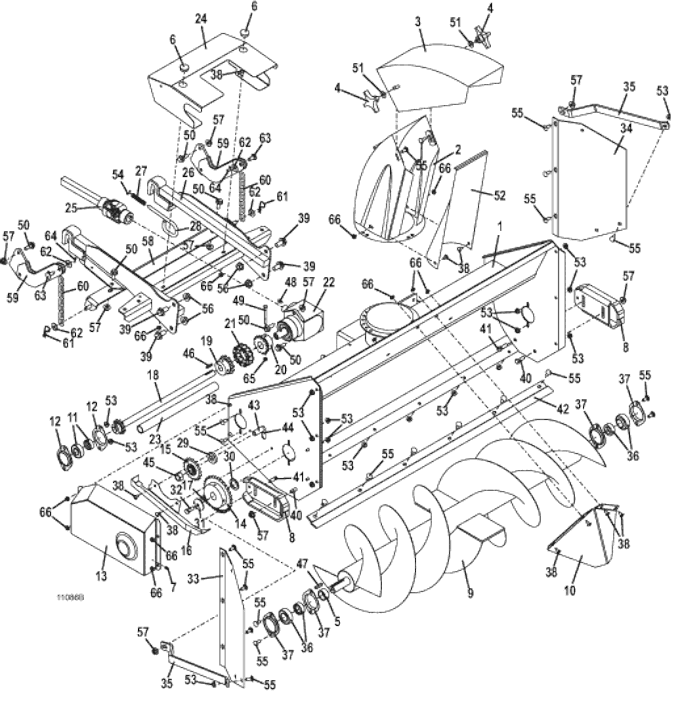

412 Snowthrower Assembly with Quick-Disconnect Mount - 2012 - Present
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 693291 - Snowthrower Auger Housing with Decal | Call For Details | |
| 2 | 693788 - Spout with Decal | Add To Cart | |
| 3 | 643277 - Spout Deflector | Add To Cart | |
| 4 | 252860 - Thumb Screw | Add To Cart | |
| 5 | 902542 - Spacer | Add To Cart | |
| 6 | 422075 - 1 Inch Diameter Plastic Hole Plug | Call For Details | |
| 7 | 280776 - Grease Zerk | Add To Cart | |
| 8 | 726157 - Snowthrower Skid | Add To Cart | |
| 9 | 643089 - Snowthrower Auger with 1 inch Shaft | Add To Cart | |
| 10 | 721150 - Snow Deflector | Add To Cart | |
| 11 | 120062 - Ball Bearing with Lock Collar | Add To Cart | |
| 12 | 124510 - 2 Bolt Flangette | Add To Cart | |
| 13 | 722886 - Chain Shield | Call For Details | |
| 14 | 417549 - Sprocket | Add To Cart | |
| 15 | 392995 - Idler | Add To Cart | |
| 16 | 721510 - Channel | Call For Details | |
| 17 | 385258 - Chain | Add To Cart | |
| 18 | 645780 - Sprocket Shaft | Add To Cart | |
| 19 | 418420 - Sprocket Coupler | Add To Cart | |
| 20 | 603746 - Sprocket Coupler | Add To Cart | |
| 21 | 388300 - Chain Coupler | Add To Cart | |
| 22 | 831874 - Gearbox | Call For Details | |
| 23 | 822572 - Shaft Shield | Add To Cart | |
| 24 | 722946 - Shield | Call For Details | |
| 25 | 398528 - UN Half Shaft | Add To Cart | |
| - | 121010 - Cross & Bearing | Add To Cart | |
| - | 401010 - Yoke | Add To Cart | |
| - | 402608 - Yoke & Shaft | Add To Cart | |
| 26 | 603739 - Quick-Disconnect Snowthrower Mount Assembly | Add To Cart | |
| 27 | 283285 - Compression Spring | Add To Cart | |
| 28 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 29 | 884308 - Spacer | Call For Details | |
| 30 | 257107 - Washer | Add To Cart | |
| 31 | 257041 - Cupped Washer | Add To Cart | |
| 32 | 243331 - Hex Bolt | Add To Cart | |
| 33 | 729698 - Right Side Extension | Add To Cart | |
| 34 | 729699 - Left Side Extension | Add To Cart | |
| 35 | 732907 - Extension Brace | Add To Cart | |
| 36 | 120083 - Ball Bearing with Lock Collar | Add To Cart | |
| 37 | 124520 - 2 Bolt Flangette | Add To Cart | |
| 38 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 39 | 253243 - Whiz Bolt | Add To Cart | |
| 40 | 243330 - Hex Bolt | Add To Cart | |
| 41 | 243335 - Hex Bolt | Add To Cart | |
| 42 | 724243 - Snowthrower Blade | Add To Cart | |
| 43 | 243810 - Hex Bolt | Add To Cart | |
| 44 | 257080 - Washer | Add To Cart | |
| 45 | 253970 - Lock Nut | Add To Cart | |
| 46 | 281560 - Square Key | Add To Cart | |
| 47 | 281586 - Square Key | Add To Cart | |
| 48 | 281833 - Woodruff Key | Add To Cart | |
| 49 | 243052 - Hex Bolt (Shear) | Add To Cart | |
| 50 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 51 | 257030 - Washer | Add To Cart | |
| 52 | 722881 - Snowthrower Liner | Add To Cart | |
| 53 | 253035 - Whiz Nut | Add To Cart | |
| 54 | 263490 - External Retainer | Add To Cart | |
| 55 | 247130 - Carriage Bolt | Add To Cart | |
| 56 | 253066 - Whiz Nut | Add To Cart | |
| 57 | 253043 - Whiz Nut | Add To Cart | |
| 58 | 645105 - Snowthrower Hydraulic Lift Bracket | Add To Cart | |
| 59 | 644713 - Rocker Arm Extension | Add To Cart | |
| 60 | 820323 - Rear Lift Chain | Add To Cart | |
| 61 | 260523 - Hair Pin | Add To Cart | |
| 62 | 257040 - Washer | Add To Cart | |
| 63 | 261339 - Clevis Pin | Add To Cart | |
| 64 | 260648 - Cotter Pin | Add To Cart | |
| 65 | 253440 - Nylon Insert Nut | Add To Cart | |
| 66 | 253025 - Whiz Nut | Add To Cart |
