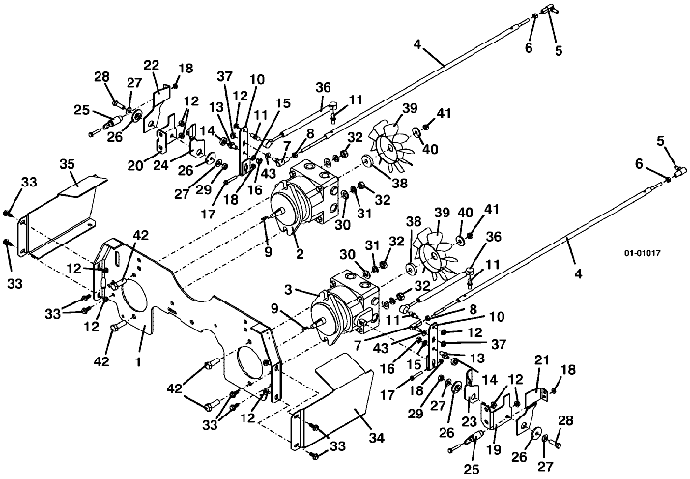

428D Drive Assembly (continued) - 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.


Item # Part Number - Description Price
1 644633 - Pump Plate - 325 / 400 Call For Details
2 391452 - Hydro Pump - left Add To Cart
3 391453 - Hydro Pump - right Add To Cart
4 604526 - Steering Linkage Rod - 400S Add To Cart
5 265615 - Ball Joint Add To Cart
6 254441 - Nut .312-24 Add To Cart
7 265616 - Ball Joint - Lefthand Thread Add To Cart
8 254444 - Nut .312-24 Add To Cart
9 281562 - Key .125 x .187 x .750 Add To Cart
10 725338 - Control Arm Add To Cart
11 265680 - Ball Stud Add To Cart
12 253035 - Whiz Nut Add To Cart
13 887110 - Neutral Adjust Roller Mount Add To Cart
14 120025 - Double Seal Ball Bearing .315 x .866 Add To Cart
15 257410 - Washer Add To Cart
16 254450 - Nut .375-16 Add To Cart
17 253182 - Hex Whiz Bolt .25-20 x 1.5 Add To Cart
18 253025 - Whiz Nut .250-20 Add To Cart
19 729225 - Neutral Return Mount - right Add To Cart
20 729229 - Neutral Return Mount - left Add To Cart
21 729136 - Neutral Return Front Arm - right Add To Cart
22 729137 - Neutral Return Front Arm - left Add To Cart
23 729138 - Neutral Return Arm - right Add To Cart
24 729139 - Neutral Return Arm - left Add To Cart
25 283823 - Extension Spring Add To Cart
26 822304 - Neutral Return Pivot Bearing Add To Cart
27 257030 - Washer Add To Cart
28 243335 - Hex Bolt .375-16 x 1.25 Add To Cart
29 253890 - Lock Nut .375-16 Add To Cart
30 755046 - Anti Rotation Bracket Add To Cart
31 257062 - Washer Add To Cart
32 254470 - Nut .500-13 Add To Cart
33 253192 - Hex Flange Whiz Bolt .312-18 x .75 Add To Cart
34 729308 - 400 right Pump Plate Gusset Call For Details
35 729309 - 400 left Pump Plate Gusset Call For Details
36 285031 - Damper Add To Cart
37 253038 - Whiz Nut .312-24 Add To Cart
38 885123 - Fan Mount Hub 10A Add To Cart
39 320857 - 7' Nylon Fan Add To Cart
40 774020 - Washer Add To Cart
41 254452 - Nut .375-24 Add To Cart
42 243570 - Hex Bolt .500-13 x 1.500 Add To Cart
43 257020 - Washer Add To Cart
