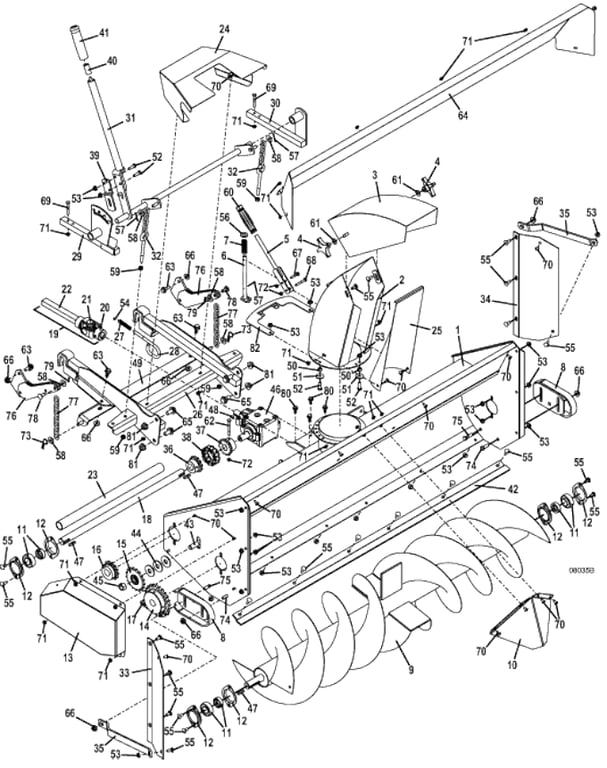

512 Snowthrower Assembly with Quick-Disconnect Mount - 2009 - 2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 693296 - Snowthrower Auger Housing(Please Call for Pricing) | Call For Details | |
| 2 | 693788 - Spout with Decal | Add To Cart | |
| 3 | 643277 - Spout Deflector | Add To Cart | |
| 4 | 252860 - Thumb Screw | Add To Cart | |
| 5 | 643408 - Spout Handle | Add To Cart | |
| 6 | 643834 - Spout Lock Rod w/a | Add To Cart | |
| 7 | 283320 - Compression Spring | Add To Cart | |
| 8 | 643786 - 4.0 Skid | Add To Cart | |
| 9 | 643094 - 512 Snowthrower Auger | Call For Details | |
| 10 | 721150 - Snow Deflector | Add To Cart | |
| 11 | 120083 - Ball Bearing with Lock Collar | Add To Cart | |
| 12 | 124520 - 2 Bolt Flangette | Add To Cart | |
| 13 | 722883 - Chain Shield | Call For Details | |
| 14 | 417676 - Sprocket | Add To Cart | |
| 15 | 393001 - Idler | Add To Cart | |
| 16 | 417631 - Sprocket | Add To Cart | |
| 17 | 385450 - Chain | Add To Cart | |
| 18 | 882228 - 512 Drive Shaft | Call For Details | |
| 19 | 398528 - UN Half Sleeve | Add To Cart | |
| 20 | 401010 - Yoke | Add To Cart | |
| 21 | 121010 - Cross and Bearing | Add To Cart | |
| 22 | 402608 - Yoke and Shaft | Add To Cart | |
| 23 | 822571 - 512 Shaft Shield | Call For Details | |
| 24 | 722887 - Snowthrower Shield | Call For Details | |
| 25 | 722881 - Snowthrower Liner | Add To Cart | |
| 26 | 603739 - Snowthrower Mount Assembly | Add To Cart | |
| 27 | 283285 - Compression Spring | Add To Cart | |
| 28 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 29 | 643567 - Lever Mount | Add To Cart | |
| 30 | 643570 - Left Lift Mount | Add To Cart | |
| 31 | 604514 - Dozer/Snowthrower Lift Lever Assembly | Add To Cart | |
| 32 | 644112 - Snowthrower Chain/Bolt | Add To Cart | |
| 33 | 724292 - Right Side Extension | Add To Cart | |
| 34 | 724293 - Left Side Extension | Add To Cart | |
| 35 | 732909 - Extension Brace | Add To Cart | |
| 36 | 418425 - Sprocket Coupler | Call For Details | |
| 37 | 603746 - Sprocket Coupler | Add To Cart | |
| 38 | 388300 - Chain Coupler | Add To Cart | |
| 39 | 732593 - Lever Guide | Add To Cart | |
| 40 | 821675 - Push Rod Thumb Button | Add To Cart | |
| 41 | 833540 - Thumb Release Handle Grip | Add To Cart | |
| 42 | 725261 - 512 Snowthrower Blade | Add To Cart | |
| - | 247130 - Carriage Bolt | Add To Cart | |
| - | 253035 - Whiz Nut | Add To Cart | |
| 43 | 243810 - Hex Bolt | Add To Cart | |
| 44 | 257080 - Washer | Add To Cart | |
| 45 | 253970 - Lock Nut | Add To Cart | |
| 46 | 831876 - Gear Box | Call For Details | |
| 47 | 281586 - Square Key | Add To Cart | |
| 48 | 281833 - Woodruff Key | Add To Cart | |
| 49 | 645105 - Snowthrower Hydraulic Lift Bracket | Add To Cart | |
| 50 | 903215 - Spout Pivot Spacer | Add To Cart | |
| 51 | 774015 - Retainer Washer | Add To Cart | |
| 52 | 243205 - Hex Bolt | Add To Cart | |
| 53 | 253035 - Whiz Nut | Add To Cart | |
| 54 | 263490 - External Retainer | Add To Cart | |
| 55 | 247130 - Carriage Bolt | Add To Cart | |
| 56 | 257062 - Washer | Add To Cart | |
| 57 | 260652 - Cotter Pin | Add To Cart | |
| 58 | 257040 - Washer | Add To Cart | |
| 59 | 254450 - Nut | Add To Cart | |
| 60 | 422160 - Handle Grip | Add To Cart | |
| 61 | 257030 - Washer | Add To Cart | |
| 62 | 243052 - Hex Bolt (Shear) | Add To Cart | |
| 63 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 64 | 723367 - 512 Extension | Call For Details | |
| 65 | 253243 - Whiz Bolt | Add To Cart | |
| 66 | 253043 - Whiz Nut | Add To Cart | |
| 67 | 243030 - Hex Bolt | Add To Cart | |
| 68 | 243038 - Hex Bolt | Add To Cart | |
| 69 | 243040 - Hex Bolt | Add To Cart | |
| 70 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 71 | 253025 - Whiz Nut | Add To Cart | |
| 72 | 253440 - Nylon Insert Nut | Add To Cart | |
| 73 | 260523 - Hair Pin | Add To Cart | |
| 74 | 243330 - Hex Bolt | Add To Cart | |
| 75 | 243335 - Hex Bolt | Add To Cart | |
| 76 | 644706 - Rocker Arm Extension | Add To Cart | |
| 77 | 820323 - Rear Lift Chain | Add To Cart | |
| 78 | 261339 - Clevis Pin | Add To Cart | |
| 79 | 260648 - Cotter Pin | Add To Cart | |
| 80 | 253192 - Hex Flanged Whiz Bolt | Add To Cart | |
| 81 | 253066 - Whiz Nut | Add To Cart | |
| 80 | 729962 - Stop | Call For Details |
