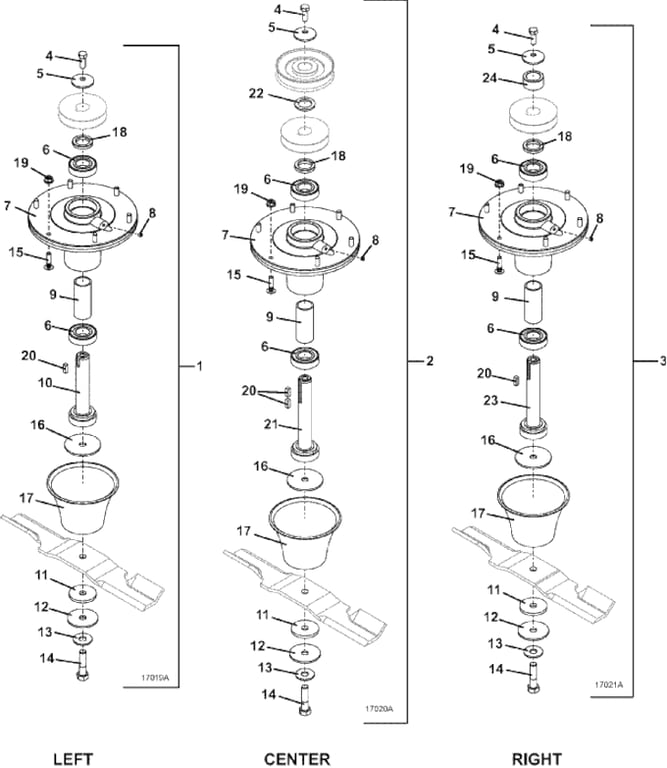

524V Blade Spindle Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623743 - Left Blade Spindle Assembly - 3242 | Add To Cart | |
| 2 | 623744 - Center Blade Spindle Assembly - 3242 | Add To Cart | |
| 3 | 623745 - Right Blade Spindle Assembly - 3242 | Add To Cart | |
| 4 | 243331 - Hex Bolt | Add To Cart | |
| 5 | 257041 - Cupped Washer | Add To Cart | |
| 6 | 110081 - Ball Bearing | Add To Cart | |
| 7 | 604413 - Aluminum Spindle Housing Assembly | Add To Cart | |
| 8 | 259305 - Set Screw | Add To Cart | |
| 9 | 903643 - Deep Bearing Spindle Spacer | Add To Cart | |
| 10 | 604775 - Spindle Shaft Assembly | Add To Cart | |
| 11 | 421200 - Washer - Fiber | Add To Cart | |
| 12 | 257061 - Washer | Add To Cart | |
| 13 | 257057 - Hardened Washer | Add To Cart | |
| 14 | 243583 - Grade 8 Flange Hex Bolt | Add To Cart | |
| 15 | 247141 - Round Head Ribbed Neck Bolt | Add To Cart | |
| 16 | 257055 - Washer | Add To Cart | |
| 17 | 423680 - Deflector Cone | Add To Cart | |
| 18 | 282607 - Spacer | Add To Cart | |
| 19 | 253035 - Whiz Nut | Add To Cart | |
| 20 | 281580 - Square Key | Add To Cart | |
| 21 | 605771 - Spindle Shaft Assembly | Add To Cart | |
| 22 | 257107 - Washer | Add To Cart | |
| 23 | 604774 - Spindle Shaft Assembly | Add To Cart | |
| 24 | 282630 - Spacer | Add To Cart |
