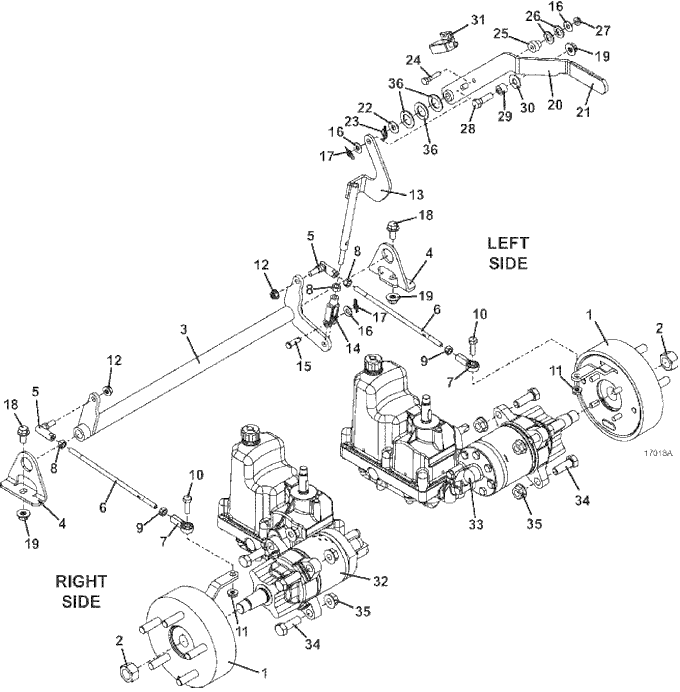

524V Brake & Linkage Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 481147 - Brake Assembly | Call For Details | |
| 2 | 253992 - Lock Nut | Add To Cart | |
| 3 | 644593 - Brake Pivot Tube | Call For Details | |
| 4 | 725584 - Brake Pivot Mount | Call For Details | |
| 5 | 265615 - Righthand Thread Ball Joint | Add To Cart | |
| 6 | 780176 - 8.125 Right/Left Steering Rod | Call For Details | |
| 7 | 265651 - Left Rod End - Female | Add To Cart | |
| 8 | 254441 - Nut | Add To Cart | |
| 9 | 254444 - Nut | Add To Cart | |
| 10 | 243205 - Hex Bolt | Add To Cart | |
| 11 | 253035 - Whiz Nut | Add To Cart | |
| 12 | 253038 - Whiz Nut | Add To Cart | |
| 13 | 645009 - Brake Linkage Arm | Call For Details | |
| 14 | 265537 - Clevis Yoke | Add To Cart | |
| 15 | 261284 - Clevis Pin | Add To Cart | |
| 16 | 257020 - Washer | Add To Cart | |
| 17 | 260606 - Cotter Ring | Add To Cart | |
| 18 | 253200 - Whiz Bolt | Add To Cart | |
| 19 | 253043 - Whiz Nut | Add To Cart | |
| 20 | 644035 - Brake Lever - 700/900 | Call For Details | |
| 21 | 422150 - Handle Grip | Add To Cart | |
| 22 | 257030 - Washer | Add To Cart | |
| 23 | 260608 - Cotter Ring | Add To Cart | |
| 24 | 243030 - Hex Bolt | Add To Cart | |
| 25 | 881130 - Brake Lever Spacer | Call For Details | |
| 26 | 257063 - Washer | Add To Cart | |
| 27 | 253025 - Whiz Nut | Add To Cart | |
| 28 | 243335 - Hex Bolt | Add To Cart | |
| 29 | 902280 - Spacer | Add To Cart | |
| 30 | 257040 - Washer | Add To Cart | |
| 31 | 183894 - Brake Interlock Switch | Add To Cart | |
| 32 | 391490 - Left Integrated Transmission | Add To Cart | |
| 33 | 391491 - Right Integrated Transmission | Add To Cart | |
| 34 | 243570 - Hex Bolt | Add To Cart | |
| 35 | 253067 - Spiral Flange Lock Nut | Add To Cart | |
| 36 | 257091 - 14 Gauge Bushing Washer | Add To Cart |
