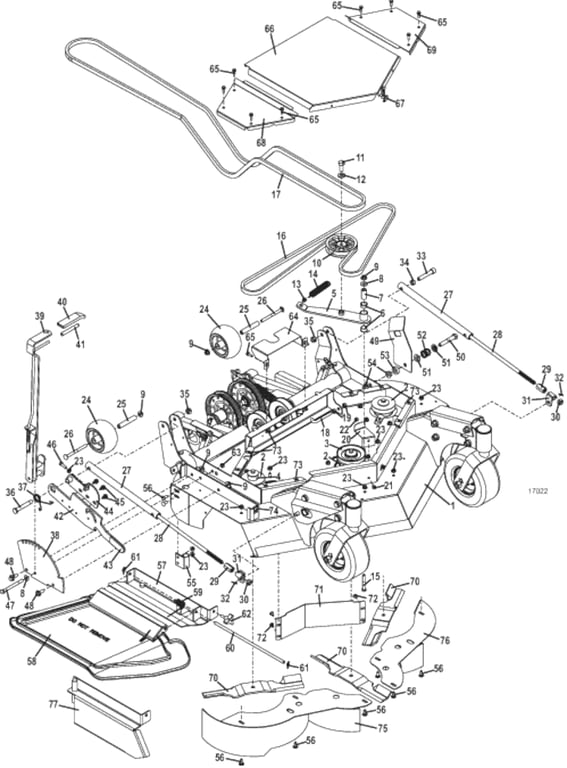

524V Deck Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645246 - 3242 Deck | Call For Details | |
| 2 | 414675 - Sheave | Add To Cart | |
| 3 | 415870 - Sheave | Add To Cart | |
| 4 | 282630 - Spacer | Add To Cart | |
| 5 | 824461 - Idler Arm | Call For Details | |
| 6 | 121756 - Oilite Bearing | Add To Cart | |
| 7 | 881105 - Bearing Pivot Shaft | Add To Cart | |
| 8 | 257040 - Washer | Add To Cart | |
| 9 | 253043 - Whiz Nut | Add To Cart | |
| 10 | 393225 - Idler | Add To Cart | |
| 11 | 243565 - Hex Bolt | Add To Cart | |
| 12 | 257062 - Washer | Add To Cart | |
| 13 | 422520 - Nylon Bearing | Add To Cart | |
| 14 | 283842 - Extension Spring | Add To Cart | |
| 15 | 243355 - Hex Bolt | Add To Cart | |
| 16 | 382990 - Belt | Add To Cart | |
| 17 | 382077 - Belt | Add To Cart | |
| 18 | 730391 - 'J' Bolt Idler Adjustment | Add To Cart | |
| 19 | 254450 - Nut | Add To Cart | |
| 20 | 722137 - Retainer Belt | Call For Details | |
| 21 | 253173 - Whiz Hex Bolt | Add To Cart | |
| 22 | 253025 - Whiz Nut | Add To Cart | |
| 23 | 253035 - Whiz Nut | Add To Cart | |
| 24 | 484230 - Wheel - Anti-Scalp Center Hub | Add To Cart | |
| 25 | 942137 - Tube - Bearing | Add To Cart | |
| 26 | 247310 - Carriage Bolt | Add To Cart | |
| 27 | 644506 - Lift Tube | Add To Cart | |
| 28 | 243670 - Round Head Bolt | Add To Cart | |
| 29 | 321185 - Sleeve Nut - Height Adjustment | Add To Cart | |
| 30 | 254470 - Nut | Add To Cart | |
| 31 | 644072 - Bracket - Liftrod - 33 Series | Add To Cart | |
| 32 | 260650 - Cotter Pin | Add To Cart | |
| 33 | 259640 - Screw - Socket Head | Add To Cart | |
| 34 | 902282 - Spacer - Actuator Stop | Add To Cart | |
| 35 | 253930 - Lock Nut | Add To Cart | |
| 36 | 243609 - Hex Bolt | Add To Cart | |
| 37 | 284423 - Torsion Spring | Add To Cart | |
| 38 | 726037 - Lever Mount - L48 | Call For Details | |
| 39 | 644475 - Deck Lift Lever - 33 Series | Call For Details | |
| 40 | 422155 - Handle Grip | Add To Cart | |
| 41 | 422158 - Handle Grip | Add To Cart | |
| 42 | 824174 - Connecting Arm - 33S Lift F/A | Add To Cart | |
| 43 | 422153 - Black Handle Grip | Add To Cart | |
| 44 | 824566 - Bracket - Lift Linkage Adjustment | Add To Cart | |
| 45 | 253189 - Whiz Bolt | Add To Cart | |
| 46 | 243205 - Hex Bolt | Add To Cart | |
| 47 | 243385 - Hex Bolt | Add To Cart | |
| 48 | 253203 - Whiz Flange Bolt | Add To Cart | |
| 49 | 729231 - Latch - Deck 33S w/Blower | Call For Details | |
| 50 | 243600 - Hex Bolt | Add To Cart | |
| 51 | 257067 - Washer | Add To Cart | |
| 52 | 283332 - Compression Spring | Add To Cart | |
| 53 | 902292 - Tilt Latch Spacer | Add To Cart | |
| 54 | 253067 - Flange Spiral Loc Nut | Add To Cart | |
| 55 | 283332 - Compression Spring | Add To Cart | |
| 56 | 247130 - Carriage Bolt | Add To Cart | |
| 57 | 644567 - 33S Discharge Shield Mount | Add To Cart | |
| 58 | 422042 - Flex Discharge Shield | Add To Cart | |
| 59 | 284406 - Torsion Spring | Add To Cart | |
| 60 | 780650 - Pin - Flex Discharge Shield | Add To Cart | |
| 61 | 260608 - Cotter Ring | Add To Cart | |
| 62 | 252821 - HD 3 Prong Deck Screw | Add To Cart | |
| 63 | 253890 - Lock Nut | Add To Cart | |
| 64 | 751374 - Shield | Call For Details | |
| 65 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 66 | 751371 - Center Belt Shield | Call For Details | |
| 67 | 281300 - Rubber Draw Latch | Add To Cart | |
| 68 | 751372 - Right Belt Shield | Call For Details | |
| 69 | 751373 - Left Belt Shield | Call For Details | |
| 70 | 320234 - 15 inch High-Lift Notch Blade | Call For Details | |
| - | 320231 - 15 inch Medium Lift Blade | Call For Details | |
| - | 320233 - 15 inch Contour Blade | Call For Details | |
| - | 320248 - 15 inch Extreme High-Lift Blade | Call For Details | |
| 71 | 724584 - Auxiliary Front Shroud | Call For Details | |
| 72 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 73 | 254431 - Speed Nut | Add To Cart | |
| 74 | 254448 - Speed Nut | Add To Cart | |
| 75 | 645598 - 3242 Right Mulch Plate | Call For Details | |
| 76 | 645599 - 3242 Left Mulch Plate | Call For Details | |
| 77 | 644409 - 3242 Mulch End Cap | Call For Details | |
| 78 | 605389 - 500V/42 Powerfold Decal Set | Call For Details |
