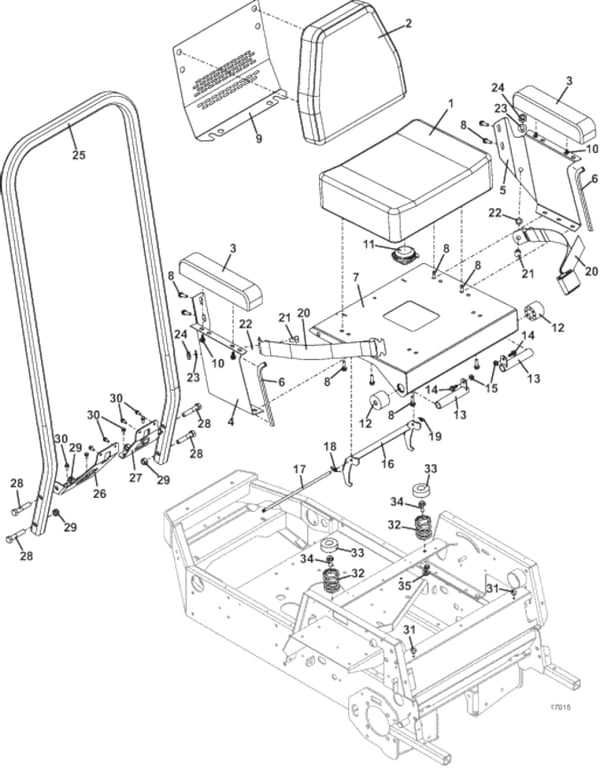

524V OPS & Seat Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321529 - Combo Seat Cushion | Add To Cart | |
| 2 | 321530 - Combo Back Cushion w/Logo | Add To Cart | |
| 3 | 321523 - Cordura Contoured Armrest | Add To Cart | |
| 4 | 723433 - Raised Backrest Right Seat Side | Add To Cart | |
| 5 | 723434 - Raised Backrest Left Seat Side | Add To Cart | |
| 6 | 822630 - Seat Edge Trim | Add To Cart | |
| 7 | 644872 - Seat Mount | Call For Details | |
| 8 | 253193 - Hex Flange Whiz Bolt | Add To Cart | |
| 9 | 722884 - Seat Rein Raised Backrest | Call For Details | |
| 10 | 253191 - Flange Whiz Hex Bolt | Add To Cart | |
| 11 | 183871 - Twist-In Seat Switch | Add To Cart | |
| 12 | 424095 - Seat Isolator | Add To Cart | |
| 13 | 644618 - Pin - Seat Hinge | Add To Cart | |
| 14 | 253192 - Whiz Flange Hex Bolt | Add To Cart | |
| 15 | 253035 - Whiz Nut | Add To Cart | |
| 16 | 754234 - 600 Dual Seat Latch | Call For Details | |
| 17 | 730230 - Pivot Pin - Seat Latch | Call For Details | |
| 18 | 284408 - Torsion Spring | Add To Cart | |
| 19 | 260606 - Cotter Ring | Add To Cart | |
| 20 | 324200 - Non-Retractable Seat Belt | Add To Cart | |
| 21 | 243551 - Hex Bolt | Add To Cart | |
| 22 | 257063 - Washer | Add To Cart | |
| 23 | 257062 - Washer | Add To Cart | |
| 24 | 253470 - Nylon Insert Nut | Add To Cart | |
| 25 | 324107 - OPS Tube - 600 | Call For Details | |
| 26 | 729306 - Right Gusset | Call For Details | |
| 27 | 729307 - Left Gusset | Call For Details | |
| 28 | 243591 - Hex Bolt | Add To Cart | |
| 29 | 253930 - Lock Nut | Add To Cart | |
| 30 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 31 | 424015 - Rubber Bumper | Add To Cart | |
| 32 | 283516 - Compression Spring | Add To Cart | |
| 33 | 422127 - Cap - Seat Spring | Add To Cart | |
| 34 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 35 | 253043 - Whiz Nut | Add To Cart |
