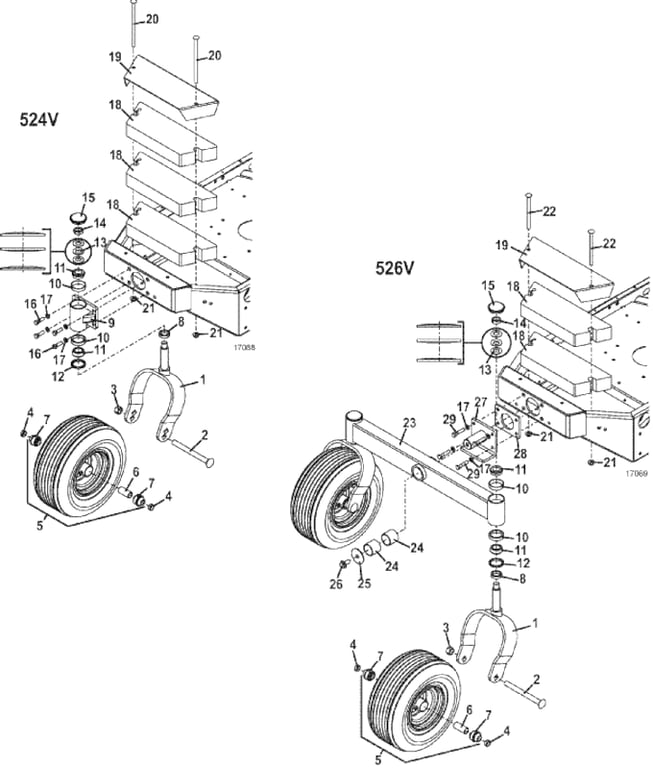

524V Tail Wheel & Weights - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645221 - Tail Wheel Fork Tapered Bearing | Add To Cart | |
| 2 | 247726 - Carriage Bolt | Add To Cart | |
| 3 | 253970 - Lock Nut | Add To Cart | |
| 4 | 902422 - Axle Spacer | Add To Cart | |
| 5 | 603975 - Rear Wheel & Tire Assembly w/DP Bearings | Add To Cart | |
| - | 482355 - 13 x 6.50 x 6 Rib Tire | Add To Cart | |
| - | 483306 - Wheel | Add To Cart | |
| 6 | 423750 - Axle Spacer | Add To Cart | |
| 7 | 120048 - Ball Bearing | Add To Cart | |
| 8 | 282615 - Spacer | Add To Cart | |
| 9 | 604596 - Pivot Housing Assembly - RR Fork | Add To Cart | |
| 10 | 123522 - Bearing Cup | Add To Cart | |
| 11 | 122522 - Taper Bearing | Add To Cart | |
| 12 | 125855 - Seal | Add To Cart | |
| 13 | 257320 - Spring Washer | Add To Cart | |
| 14 | 254505 - Nylon-Top Jam Lock Nut | Add To Cart | |
| 15 | 481434 - Domed Dust Cap | Add To Cart | |
| 16 | 243334 - GR 8 Hex Bolt | Add To Cart | |
| 17 | 257412 - Lock Washer | Add To Cart | |
| 18 | 323933 - Counterweight - 34 lb | Add To Cart | |
| 19 | 729514 - Weight Cover - 34 lb | Call For Details | |
| 20 | 247335 - Carriage Bolt | Call For Details | |
| 21 | 253043 - Whiz Nut | Add To Cart | |
| 22 | 247325 - Carriage Bolt | Add To Cart | |
| 23 | 824510 - Dual Wheel Beam | Add To Cart | |
| 24 | 833275 - Reamed Oilite Bearing | Add To Cart | |
| 25 | 257061 - Washer | Add To Cart | |
| 26 | 253243 - Whiz Bolt | Add To Cart | |
| 27 | 604597 - Rear Axle Pivot Assembly | Add To Cart | |
| 28 | 776233 - Spacer | Call For Details | |
| 29 | 243342 - Hex Bolt | Call For Details |
