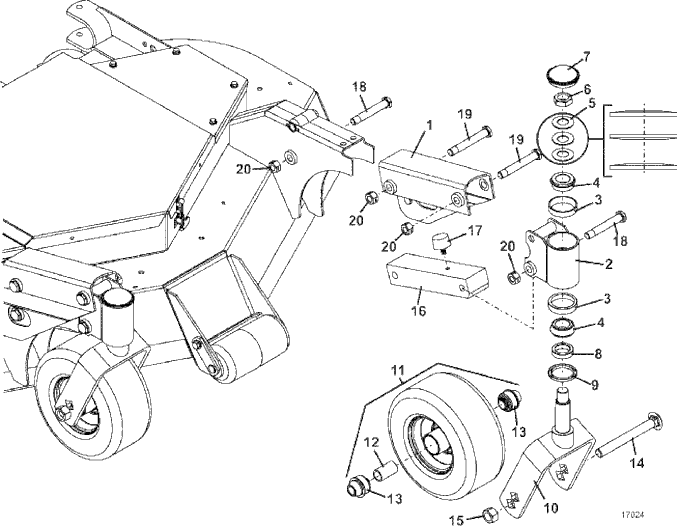

524V Wheel Lift Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644461 - 33/34 Series Right Lift Channel | Add To Cart | |
| - | 644462 - 33/34 Series Left Lift Channel | Add To Cart | |
| 2 | 824982 - Deck HD Fork Housing | Add To Cart | |
| 3 | 123522 - Bearing Cup | Add To Cart | |
| 4 | 122522 - Taper Bearing | Add To Cart | |
| 5 | 257320 - Spring Washer | Add To Cart | |
| 6 | 254505 - Nylon-Top Jam Lock Nut | Add To Cart | |
| 7 | 481434 - Domed Dust Cap | Add To Cart | |
| 8 | 282615 - Spacer | Add To Cart | |
| 9 | 125855 - Seal | Add To Cart | |
| 10 | 604368 - Fork & Lock Nut Assembly | Add To Cart | |
| 11 | 603973 - Semi-Pneumatic Wheel & Bearing Assembly 9 x 3.5 x 4 | Add To Cart | |
| 12 | 423751 - Axle Spacer | Add To Cart | |
| 13 | 120048 - DP Wheel Ball Bearing | Add To Cart | |
| 14 | 247715 - Carriage Bolt | Add To Cart | |
| 15 | 253970 - Lock Nut | Add To Cart | |
| 16 | 822312 - Deck Stabilizer with Bumper | Add To Cart | |
| 17 | 424053 - Rubber Bumper | Add To Cart | |
| 18 | 243609 - Hex Bolt | Add To Cart | |
| 19 | 243614 - Hex Bolt | Add To Cart | |
| 20 | 253930 - Lock Nut | Add To Cart |
