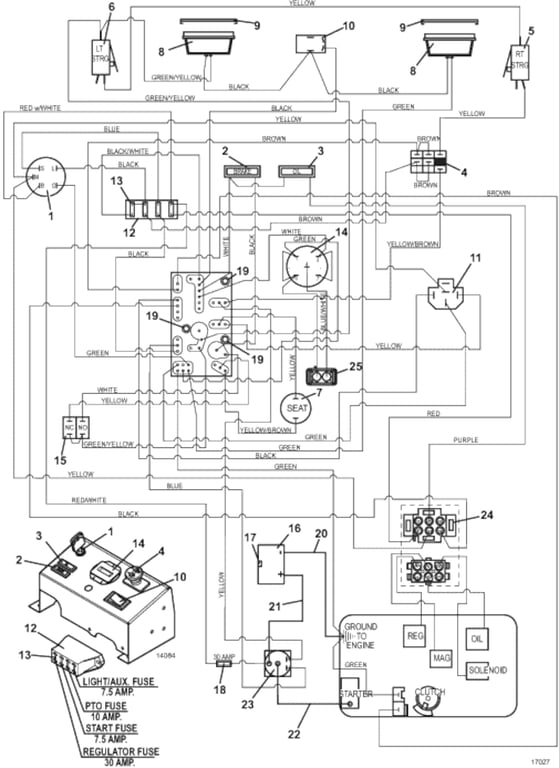

524V Wiring & Lights Diagram - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 183806 - Briggs & Stratton / Kohler Ignition Switch with Key | Add To Cart | |
| - | 101101 - Ignition Key with Cover | Add To Cart | |
| - | 254498 - Nut | Add To Cart | |
| - | 422078 - Plastic Panel | Add To Cart | |
| 2 | 182326 - Brake Light Indicator | Add To Cart | |
| 3 | 182327 - Oil Indicator Light | Add To Cart | |
| - | 183770 - Oil Pressure Switch | Add To Cart | |
| 4 | 183925 - Push/Pull Switch | Add To Cart | |
| 4 | 184942 - 9Way Connector | Add To Cart | |
| 5 | 183860 - Lever Switch | Add To Cart | |
| - | 720160 - Steering Switch Mount - Right | Add To Cart | |
| 6 | 183860 - Lever Switch | Add To Cart | |
| - | 720161 - Steering Switch Mount - Left | Add To Cart | |
| 7 | 183871 - Twist-In Seat Switch | Add To Cart | |
| 8 | 182261 - LED Flood Worklamp | Add To Cart | |
| 9 | 182251 - Snap Mount Worklamp Bezel | Add To Cart | |
| 10 | 184179 - Rocker Switch | Add To Cart | |
| 11 | 184271 - 12V DC Relay with Mount | Add To Cart | |
| 12 | 181720 - Fuse Block | Add To Cart | |
| - | 162320 - Fuse ID Decal | Add To Cart | |
| - | 181721 - Fuse Block Cover | Add To Cart | |
| 13 | 181470 - 30 amp Auto ATC Fuse | Add To Cart | |
| - | 181460 - 7.5 amp Auto ATC Fuse | Add To Cart | |
| - | 181462 - 10 amp Auto ATC Fuse | Add To Cart | |
| 14 | 141551 - Snap In Hour Meter | Add To Cart | |
| 15 | 183894 - Brake Interlock Switch | Add To Cart | |
| 16 | 180125 - 12 Volt Wet Battery | Add To Cart | |
| - | 644099 - Battery Box - G2 AC | Call For Details | |
| - | 644162 - AC Battery Cover | Add To Cart | |
| 17 | 729001 - Battery Clamp | Add To Cart | |
| 18 | 181735 - Inline Auto Fuse Holder | Add To Cart | |
| - | 181470 - 30 Amp Fuse - Auto ATC | Add To Cart | |
| 19 | 423690 - PC Board Support Spacer | Add To Cart | |
| 20 | 180277 - 16 inch Black Battery Cable | Call For Details | |
| 21 | 180322 - 24 inch Red Battery Cable | Add To Cart | |
| 22 | 180309 - 11 inch Red Battery Cable | Add To Cart | |
| 23 | 184251 - Solenoid Relay - 4 Post Switch | Add To Cart | |
| 24 | 184911 - 6 Terminal Connector (AMP) | Add To Cart | |
| - | 181768 - Pin Mate N-Lock | Call For Details | |
| 25 | 184907 - 2 Terminal Connector | Add To Cart | |
| - | 141235 - Fuel Sender | Add To Cart | |
| 26 | 606860 - 524V Wire Assembly | Call For Details | |
| 27 | 161092 - Console Decal | Add To Cart |
