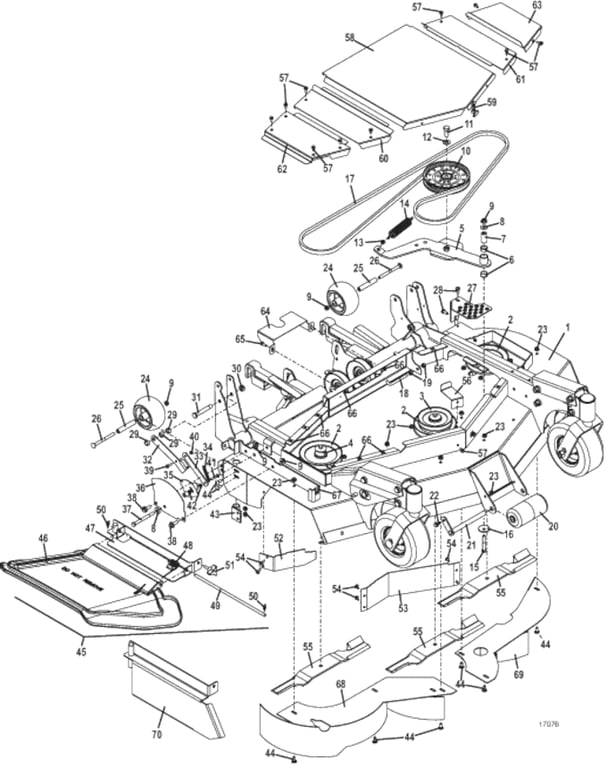

526V Deck Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645247 - 3252 Deck | Call For Details | |
| 2 | 415892 - Sheave | Add To Cart | |
| 3 | 415902 - Big Split Sheave | Add To Cart | |
| 4 | 282630 - Spacer | Add To Cart | |
| 5 | 824460 - Idler Arm | Call For Details | |
| 6 | 121756 - Oilite Bearing | Add To Cart | |
| 7 | 881105 - Bearing Pivot Shaft | Add To Cart | |
| 8 | 257040 - Washer | Add To Cart | |
| 9 | 253043 - Whiz Nut | Add To Cart | |
| 10 | 393250 - Idler | Add To Cart | |
| 11 | 243565 - Hex Bolt | Add To Cart | |
| 12 | 257062 - Washer | Add To Cart | |
| 13 | 422520 - Nylon Bearing | Add To Cart | |
| 14 | 283848 - Extension Spring | Add To Cart | |
| 15 | 243355 - Hex Bolt | Add To Cart | |
| 16 | 257041 - Cupped Washer | Add To Cart | |
| 17 | 382082 - Belt | Add To Cart | |
| 18 | 730391 - 'J' Bolt Idler Adjustment | Add To Cart | |
| 19 | 254450 - Nut | Add To Cart | |
| 20 | 603725 - 2 Piece Center Roller Assembly | Add To Cart | |
| 21 | 644512 - Roller Lock Pin | Add To Cart | |
| 22 | 253192 - Flange Whiz Hex Bolt | Add To Cart | |
| 23 | 253035 - Whiz Nut | Add To Cart | |
| 24 | 484230 - Wheel - Anti-Scalp Center Hub | Add To Cart | |
| 25 | 942137 - Tube - Bearing | Add To Cart | |
| 26 | 247310 - Carriage Bolt | Add To Cart | |
| 27 | 724113 - Tread Plate | Call For Details | |
| 28 | 243197 - Hex Bolt | Add To Cart | |
| 29 | 902282 - Spacer - Actuator Stop | Add To Cart | |
| 30 | 253930 - Lock Nut | Add To Cart | |
| 31 | 243609 - Hex Bolt | Add To Cart | |
| 32 | 729332 - Linkage - Indicator Electric Lift | Add To Cart | |
| 33 | 729331 - Strap - Indicator Electric Lift | Add To Cart | |
| 34 | 283762 - Extension Spring | Add To Cart | |
| 35 | 644319 - Height Indicator - E/Lift | Add To Cart | |
| 36 | 773141 - Plate - Cutting Height Decal | Add To Cart | |
| 37 | 243385 - Hex Bolt | Add To Cart | |
| 38 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 39 | 243018 - Hex Bolt | Add To Cart | |
| 40 | 253440 - Nylon Insert Nut | Add To Cart | |
| 41 | 243030 - Hex Bolt | Add To Cart | |
| 42 | 253025 - Whiz Nut | Add To Cart | |
| 43 | 643632 - Mount - Pivot Vac Housing | Add To Cart | |
| 44 | 247130 - Carriage Bolt | Add To Cart | |
| 45 | 604317 - Flex Discharge Shield Assembly | Add To Cart | |
| 46 | 422042 - Flex Discharge Shield | Add To Cart | |
| 47 | 644570 - Discharge Shield Mount | Add To Cart | |
| 48 | 284406 - Torsion Spring | Add To Cart | |
| 49 | 780650 - Pin - Flex Discharge Shield | Add To Cart | |
| 50 | 260608 - Cotter Ring | Add To Cart | |
| 51 | 252821 - HD 3 Prong Deck Screw | Add To Cart | |
| 52 | 729686 - Shroud - Discharge Deflect | Call For Details | |
| 53 | 724588 - Auxiliary Front Shroud | Add To Cart | |
| 54 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 55 | 320239 - 18 inch High-Lift Notch Blade | Call For Details | |
| - | 320236 - 18 inch Medium Lift Blade | Call For Details | |
| - | 320238 - 18 inch Contour Blade | Call For Details | |
| - | 320241 - 18 inch Extreme High-Lift Blade | Call For Details | |
| 56 | 722138 - Retainer Belt | Call For Details | |
| 57 | 253173 - Whiz Hex Bolt | Add To Cart | |
| 58 | 751375 - Shield - Belt Center | Call For Details | |
| 59 | 281300 - Rubber Draw Latch | Add To Cart | |
| 60 | 751376 - Right Belt Shield | Call For Details | |
| 61 | 751377 - Left Belt Shield | Call For Details | |
| 62 | 722702 - 3452 Right Belt Shield | Add To Cart | |
| 63 | 722703 - 3452 Left Belt Shield | Add To Cart | |
| 64 | 751374 - Shield | Call For Details | |
| 65 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 66 | 254431 - Speed Nut | Add To Cart | |
| 67 | 254448 - Speed Nut | Add To Cart | |
| 68 | 644608 - 52 - Right Mulch Plate | Add To Cart | |
| 69 | 644609 - 52 - Left Mulch Plate | Add To Cart | |
| 70 | 644058 - End Cap - Mulch | Add To Cart | |
| 71 | 605393 - 3252 Deck Decal Set | Call For Details |
