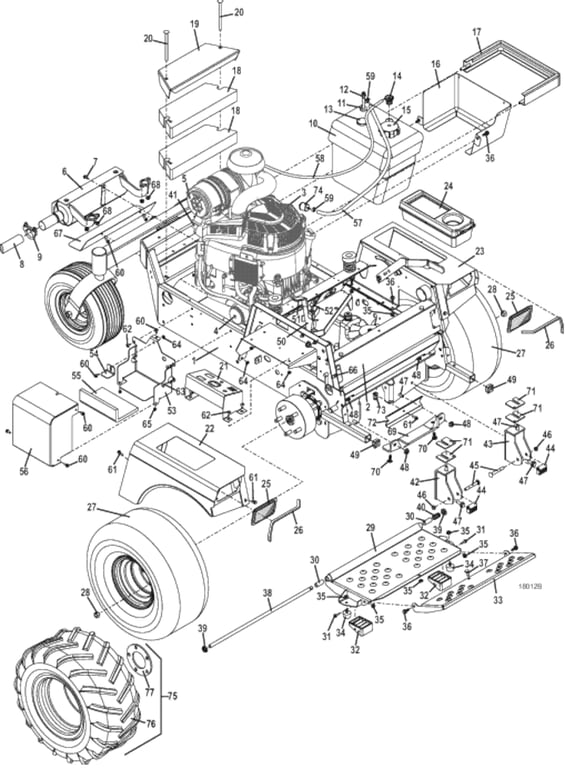

526V Tractor Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643877 - 500V Lower Frame | Call For Details | |
| 2 | 643879 - 524V Upper Frame | Call For Details | |
| 3 | 100155 - 26HP Vanguard Engine | Call For Details | |
| 4 | 100803 - Briggs Oil Filter | Add To Cart | |
| 5 | 100936 - Filter - Air Outer - HD | Add To Cart | |
| - | 100937 - Filter - Air Inner - HD | Call For Details | |
| 6 | 101197 - 20/24HP Briggs & Stratton Vertical Muffler | Add To Cart | |
| - | 101043 - Briggs & Stratton Vertical Exhaust Gasket | Call For Details | |
| 7 | 243016 - Hex Bolt | Add To Cart | |
| 8 | 942409 - 524V Exhaust Tube | Call For Details | |
| 9 | 101356 - Exhaust Clamp | Add To Cart | |
| 10 | 605792 - 4 X .25 FM Gas Tank Assembly | Add To Cart | |
| - | 165720 - Refueling Warning Decal | Add To Cart | |
| 11 | 101875 - Fuel Tube Bushing | Add To Cart | |
| 12 | 363925 - Fuel Tube | Add To Cart | |
| 13 | 141142 - Intank Fuel Gauge | Add To Cart | |
| - | 424275 - Grommet | Add To Cart | |
| 14 | 606830 - Fuel Tank Valve Kit | Add To Cart | |
| 15 | 100212 - Internal Sealed Tether Fuel Cap | Add To Cart | |
| 16 | 751351 - Tank Shield | Call For Details | |
| 17 | 645826 - 4.3 Tank Mount | Call For Details | |
| 18 | 323933 - 34 lb. Counterweight | Add To Cart | |
| 19 | 729514 - 34 lb. Weight Cover | Call For Details | |
| 20 | 247325 - Carriage Bolt | Add To Cart | |
| 21 | 693118 - Console w/Decal | Call For Details | |
| 22 | 693196 - 600T Rt Fender with Decals | Add To Cart | |
| 23 | 693197 - 600T Lt Fender with Decals | Add To Cart | |
| 24 | 422040 - Tool Box | Add To Cart | |
| 25 | 422079 - Hole Plug Work Lamp | Add To Cart | |
| 26 | 822632 - Trim | Add To Cart | |
| 27 | 483923 - Wheel & Turf Tire | Call For Details | |
| - | 482462 - Tire | Add To Cart | |
| - | 483419 - Wheel | Call For Details | |
| 28 | 254472 - Lug Nut | Add To Cart | |
| 29 | 604349 - 500V Adjustable Foot Platform Assembly | Call For Details | |
| 30 | 422615 - Nylon Bearing | Add To Cart | |
| 31 | 243026 - Hex Bolt | Add To Cart | |
| 32 | 424100 - Footrest Isolator Block | Add To Cart | |
| 33 | 643306 - Foot Platform Extension | Call For Details | |
| 34 | 424052 - Rubber Bumper | Add To Cart | |
| 35 | 253035 - Whiz Nut | Add To Cart | |
| 36 | 253192 - Hex Whiz Flange Bolt | Add To Cart | |
| 37 | 247130 - Carriage Bolt | Add To Cart | |
| 38 | 780655 - Footrest Pivot Rod | Call For Details | |
| 39 | 253470 - Nylon Insert Nut | Add To Cart | |
| 40 | 283312 - Compression Spring | Add To Cart | |
| 41 | 100204 - Dust Ejector | Call For Details | |
| 42 | 643100 - Right Deck Mount | Call For Details | |
| 43 | 643101 - Left Deck Mount | Call For Details | |
| 44 | 282575 - Bushing - Deck Mount | Add To Cart | |
| 45 | 247280 - Special Carriage Bolt | Add To Cart | |
| 46 | 253460 - Nylon Insert Nut | Add To Cart | |
| 47 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 48 | 253043 - Whiz Nut | Add To Cart | |
| 49 | 422065 - Square Plastic 1' ID Plug | Add To Cart | |
| 50 | 605823 - Throttle/Choke Mount Assembly | Add To Cart | |
| - | 323643 - Control Cable Assembly | Add To Cart | |
| - | 722736 - Heavy Duty Throttle Lever Stop | Add To Cart | |
| 51 | 422150 - Handle Grip | Add To Cart | |
| 52 | 142247 - Mechanical Choke | Add To Cart | |
| 53 | 644099 - Battery Box - G2 AC | Call For Details | |
| 54 | 729001 - Battery Clamp | Add To Cart | |
| 55 | 427273 - Battery Tray Pad | Add To Cart | |
| 56 | 644162 - Cover - Battery AC | Add To Cart | |
| 57 | 821770 - Fuel Hose | Call For Details | |
| 58 | 821764 - Fuel Vapor Hose | Call For Details | |
| 59 | 280260 - Spring Hose Clamp | Add To Cart | |
| 60 | 253173 - Whiz Hex Bolt | Add To Cart | |
| 61 | 253175 - Whiz Hex Bolt | Add To Cart | |
| 62 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 63 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 64 | 253025 - Whiz Nut | Add To Cart | |
| 65 | 253440 - Nylon Insert Nut | Add To Cart | |
| 66 | 254431 - Speed Nut | Add To Cart | |
| 67 | 751040 - Heat Shield | Call For Details | |
| 68 | 274146 - Hex Whiz Nut | Call For Details | |
| 69 | 645399 - Sheave Guard | Call For Details | |
| 70 | 247253 - Carriage Bolt | Add To Cart | |
| 71 | 783284 - Spacer - Deck Mts | Call For Details | |
| 72 | 722136 - Belt Retainer | Call For Details | |
| 73 | 254435 - Nut | Call For Details | |
| 74 | 366560 - In-Line Briggs Fuel Filter | Add To Cart | |
| 75 | 504244 - Tire Set - 20X8X10 Bar 500B | Call For Details | |
| 76 | 483916 - Right Wheel & Tire Bar | Call For Details | |
| - | 482463 - Tire Bar | Call For Details | |
| - | 483419 - Wheel | Call For Details | |
| - | 483917 - Left Wheel & Tire Bar | Call For Details | |
| 77 | 776295 - Wheel Spacer - 5 Bolt - 1/4' | Call For Details | |
| 78 | 605392 - 526V Decal Set | Call For Details |
