612 Main Housing Assembly - 1991

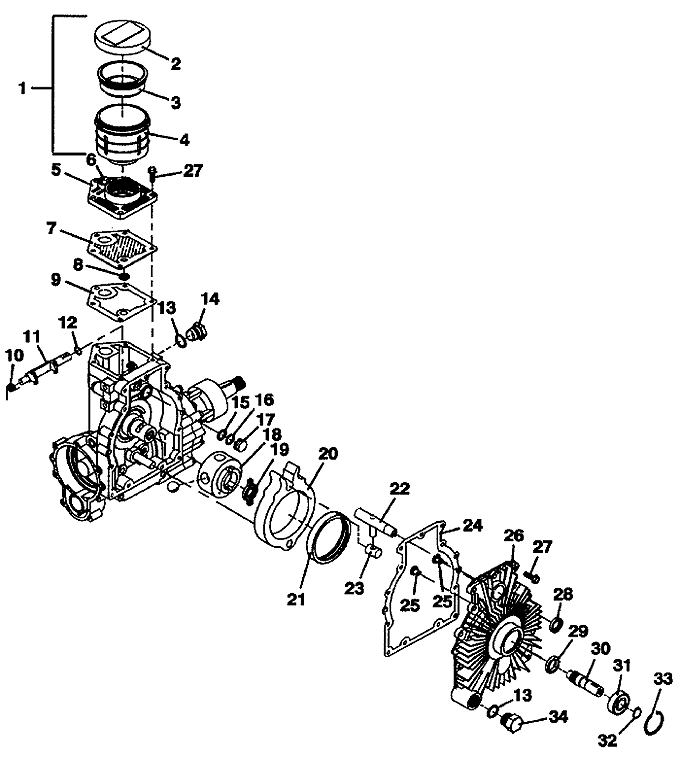

Main Housing Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.


Item # Part Number - Description Price
1 421995 - Reservoir Assembly - NOT AVAILABLE Call For Details
2 421998 - Reservoir Cap Add To Cart
3 421999 - Reservoir Diaphragm - NOT AVAILABLE Call For Details
4 421997 - Reservoir Body Add To Cart
5 103734 - NOT AVAILABLE Add To Cart
6 103735 - O-Ring Hex Head Plug Add To Cart
7 603605 - Oil Filter Assembly w/Gasket - NOT AVAILABLE Add To Cart
8 103736 - Oil Filter Grommet Call For Details
9 420343 - Valve Cover Gasket Add To Cart
10 284409 - Torsion Spring Call For Details
11 284704 - Dump Valve Bracket Call For Details
12 126526 - O-Ring Add To Cart
13 126537 - O-Ring Add To Cart
14 103740 - Dump Valve Fitting Call For Details
15 126530 - O-Ring Add To Cart
16 126636 - Backup Ring Add To Cart
17 000000 - NOT AVAILABLE Call For Details
18 103778 - Pump Rotor Assembly - Non-Charged - NOT AVAILABLE Call For Details
19 103745 - Input Drive Call For Details
20 103777 - Cam Ring Assembly Add To Cart
21 123758 - Bearing Cup Add To Cart
22 103748 - Control Shaft Add To Cart
23 103720 - Cam Ring Insert Call For Details
24 420341 - Pump Cover Gasket Add To Cart
25 103722 - Wear Button Call For Details
26 604190 - Wear Plate Kit Cover Add To Cart
27 250296 - Machine Screw Call For Details
28 125170 - Seal Add To Cart
29 125250 - Seal Add To Cart
30 103738 - NOT AVAILABLE Call For Details
31 120054 - Ball Bearing Add To Cart
32 263524 - External Retainer Add To Cart
33 263175 - Internal Retainer Add To Cart
34 365528 - 10MB O-Ring Boss Hex Plug Call For Details
