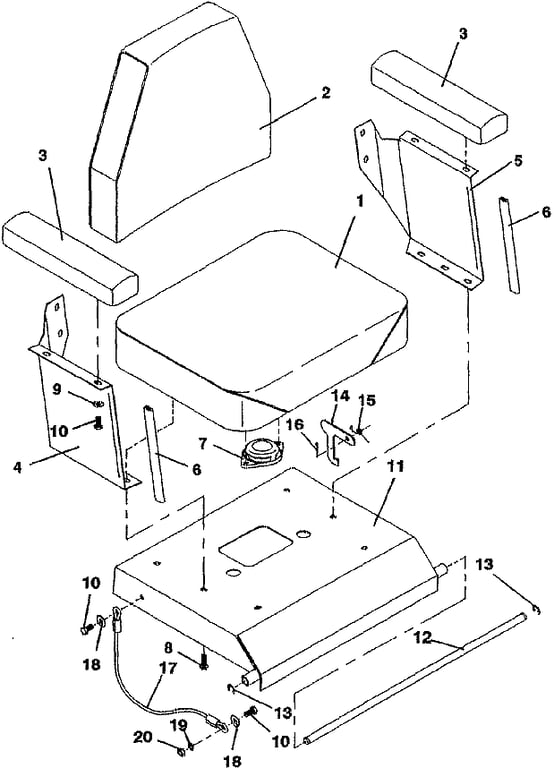

612 Seat Assembly - 1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321516 - Seat Cushion | Add To Cart | |
| 2 | 321511 - Back Cushion | Add To Cart | |
| 3 | 321501 - Seat Armrest | Add To Cart | |
| 4 | 724310 - right Side Seat Member | Add To Cart | |
| 5 | 724311 - left Side Seat Member | Add To Cart | |
| 6 | 822630 - Seat Edge Trim | Add To Cart | |
| 7 | 183870 - Seat Switch | Add To Cart | |
| 8 | 253193 - Hex Flange Whiz Bolt | Add To Cart | |
| 9 | 257410 - Star External Washer | Add To Cart | |
| 10 | 243195 - Hex Bolt | Add To Cart | |
| 11 | 643781 - Seat Mount | Call For Details | |
| 12 | 780657 - Seat Pivot Rod | Call For Details | |
| 13 | 263500 - External Retainer | Add To Cart | |
| 14 | 774248 - Seat Latch | Call For Details | |
| 15 | 284407 - Torsion Spring | Add To Cart | |
| 16 | 260648 - Cotter Pin | Add To Cart | |
| 17 | 323568 - Seat Cable Assembly | Add To Cart | |
| 18 | 257030 - Washer | Add To Cart | |
| 19 | 257402 - Lock Washer | Add To Cart | |
| 20 | 254440 - Nut | Add To Cart | |
| 21 | 603758 - 612 Seat Assembly | Call For Details |
