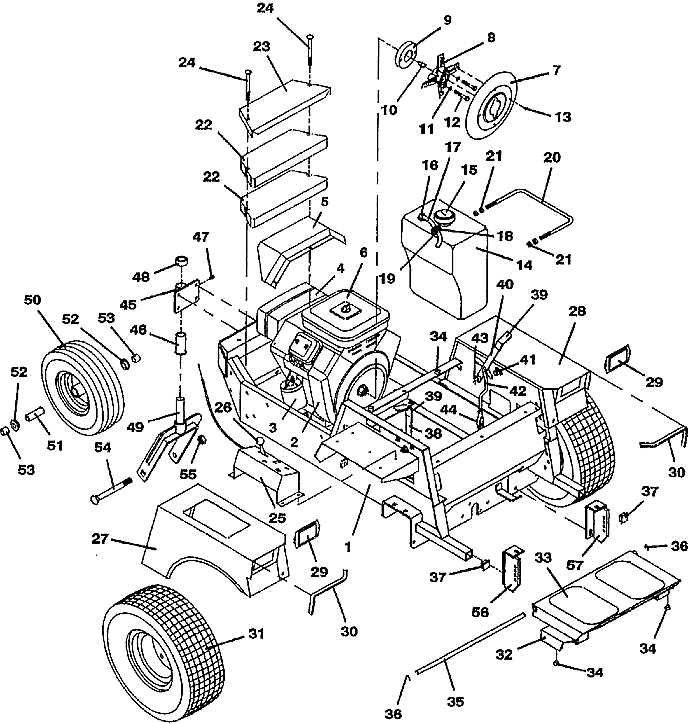

612 Tractor Assembly - 1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643383 - 600 Tractor Frame | Call For Details | |
| 2 | 100114 - 12.5hp Briggs & Stratton Engine | Call For Details | |
| 3 | 100803 - Briggs Oil Filter | Add To Cart | |
| 4 | 603592 - Muffler & Support Assembly | Add To Cart | |
| - | 729119 - Muffler Bracket | Call For Details | |
| 5 | 722266 - 600 Muffler Shield | Add To Cart | |
| 6 | 100920 - Briggs Air Filter | Call For Details | |
| - | 100921 - Briggs & Stratton Precleaner Air Filter | Call For Details | |
| 7 | 721130 - Intake Screen | Call For Details | |
| 8 | 100793 - 7 inch Booster Fan | Call For Details | |
| 9 | 902326 - Booster Fan Spacer | Call For Details | |
| 10 | 101450 - Booster Fan Alignment Pin | Call For Details | |
| 11 | 257402 - Lock Washer | Add To Cart | |
| 12 | 243235 - Hex Bolt | Add To Cart | |
| 13 | 252044 - No Longer Available | Call For Details | |
| 14 | 603810 - 600 Fuel Tank Assembly | Add To Cart | |
| 15 | 100210 - Fuel Cap | Add To Cart | |
| 16 | 101830 - Fuel Draw Tube | Add To Cart | |
| 17 | 821725 - Fuel Line Hose | Add To Cart | |
| 18 | 366560 - Briggs In-Line Fuel Filter | Add To Cart | |
| 19 | 280260 - Spring Hose Clamp | Add To Cart | |
| 20 | 730450 - 600 Fuel Tank Mount | Add To Cart | |
| 21 | 254450 - Nut | Add To Cart | |
| 22 | 323933 - 34 lb. Counterweight | Add To Cart | |
| 23 | 729514 - 34 lb. Weight Cover Plate | Call For Details | |
| 24 | 247305 - No Longer Available | Call For Details | |
| 26 | 142210 - Mechanical Choke Housing | Add To Cart | |
| 27 | 643338 - right 600 Fender | Call For Details | |
| - | 163224 - 612 right Trim Decal | Call For Details | |
| 28 | 643339 - left 600 Fender | Call For Details | |
| - | 163225 - 612 left Trim Decal | Call For Details | |
| 29 | 721033 - Headlight Filler Panel | Call For Details | |
| 30 | 822631 - Fender Edge Trim | Add To Cart | |
| 31 | 483905 - 18 X 8.5 X 8 Wheel & Turf Tire | Call For Details | |
| - | 482452 - 18 X 8.5 X 8 Turf Tire | Add To Cart | |
| - | 483398 - 8 X 5.375 4-Bolt Wheel | Add To Cart | |
| 32 | 603344 - 600 Foot Rest Assembly | Call For Details | |
| 33 | 420902 - Foot Rest Tread | Add To Cart | |
| 34 | 424015 - Rubber Bumper | Add To Cart | |
| 35 | 780659 - 600 Footrest Pivot Rod | Call For Details | |
| 36 | 263500 - External Retainer | Add To Cart | |
| 37 | 422065 - Square Plastic Plug | Add To Cart | |
| 38 | 603819 - 718 Twin II Throttle Assembly | Call For Details | |
| - | 323641 - Control Cable Assembly | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| 39 | 422150 - Handle Grip | Add To Cart | |
| 40 | 603556 - 600 Brake Lever Assembly | Call For Details | |
| 41 | 902280 - Spacer | Add To Cart | |
| - | 243330 - Hex Bolt | Add To Cart | |
| - | 257040 - Washer | Add To Cart | |
| 42 | 730354 - 600 Brake Linkage Rod | Call For Details | |
| 43 | 260648 - Cotter Pin | Add To Cart | |
| 44 | 265537 - Clevis Yoke | Add To Cart | |
| 45 | 824536 - 612 Rear Pivot Housing | Add To Cart | |
| 46 | 833260 - Flanged Sintered Bushing | Add To Cart | |
| 47 | 280776 - Zerk Grease Fitting | Add To Cart | |
| 48 | 280440 - Set Collar | Add To Cart | |
| 49 | 643367 - 400 Rear Fork | Add To Cart | |
| 50 | 483861 - 13 x 5 x 6 Wheel & Tire with Bearing & Spacer | Add To Cart | |
| - | 482350 - 13 X 5 X 6 Tubeless Ribbed Tire | Add To Cart | |
| - | 483301 - 6 X 3.25 Tan Wheel with Bearing & Spacer | Add To Cart | |
| 51 | 902475 - Rear Wheel Bearing Spacer | Add To Cart | |
| 52 | 120050 - Ball Bearing | Add To Cart | |
| 53 | 902425 - Axle Spacer | Add To Cart | |
| 54 | 247725 - Carriage Bolt | Add To Cart | |
| 55 | 253970 - Lock Nut | Add To Cart | |
| 56 | 643131 - right 600 Attachment Mount | Call For Details | |
| 57 | 643132 - left 600 Attachment Mount | Call For Details | |
| 58 | 603263 - 612 Decal Set | Call For Details |
