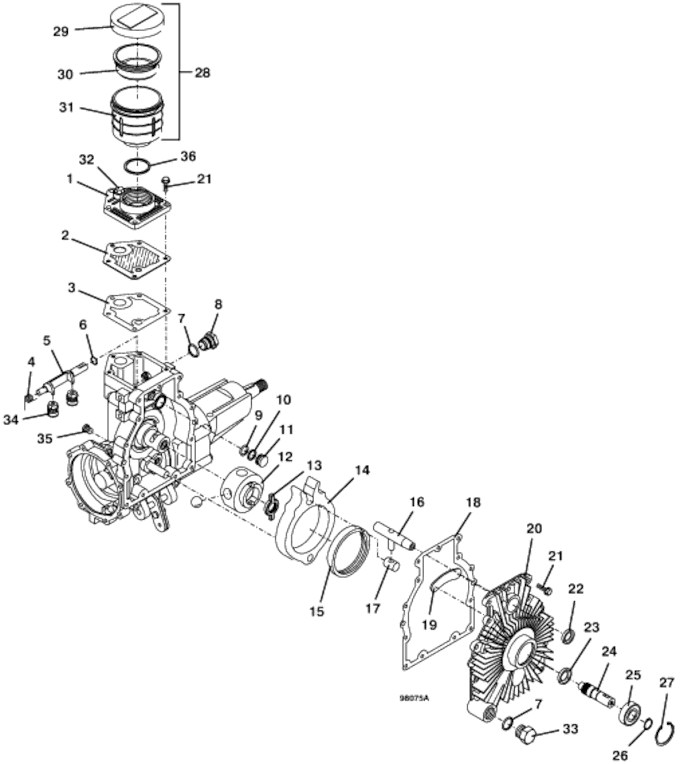

614 Main Housing Assembly - 1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 103734 - NOT AVAILABLE | Add To Cart | |
| 2 | 603605 - Oil Filter Assembly w/Gasket - NOT AVAILABLE | Add To Cart | |
| 3 | 420343 - Valve Cover Gasket | Add To Cart | |
| 4 | 284409 - Torsion Spring | Call For Details | |
| 5 | 284704 - Dump Valve Bracket | Call For Details | |
| 6 | 126526 - O-Ring | Add To Cart | |
| 7 | 126537 - O-Ring | Add To Cart | |
| 8 | 103740 - Dump Valve Fitting | Call For Details | |
| 9 | 126530 - O-Ring | Add To Cart | |
| - | 126525 - O-Ring | Add To Cart | |
| 10 | 126636 - Backup Ring | Add To Cart | |
| - | 126630 - Backup Ring | Add To Cart | |
| 11 | 103727 - Dampening Piston Assembly - NOT AVAILABLE | Call For Details | |
| - | 103719 - NOT AVAILABLE | Add To Cart | |
| 12 | 103778 - Pump Rotor Assembly - Non-Charged - NOT AVAILABLE | Call For Details | |
| 13 | 103745 - Input Drive | Call For Details | |
| 14 | 103777 - Cam Ring Assembly | Add To Cart | |
| 15 | 123758 - Bearing Cup | Add To Cart | |
| 16 | 103748 - Control Shaft | Add To Cart | |
| 17 | 103720 - Cam Ring Insert | Call For Details | |
| 18 | 420341 - Pump Cover Gasket | Add To Cart | |
| 19 | 103718 - Wear Plate | Add To Cart | |
| 20 | 103769 - Input Shaft Pump Cover - NOT AVAILABLE | Call For Details | |
| 21 | 250296 - Machine Screw | Call For Details | |
| 22 | 125170 - Seal | Add To Cart | |
| 23 | 125250 - Seal | Add To Cart | |
| 24 | 103738 - NOT AVAILABLE | Call For Details | |
| 25 | 120054 - Ball Bearing | Add To Cart | |
| 26 | 263524 - External Retainer | Add To Cart | |
| 27 | 263175 - Internal Retainer | Add To Cart | |
| 28 | 421995 - Reservoir Assembly - NOT AVAILABLE | Call For Details | |
| 29 | 421998 - Reservoir Cap | Add To Cart | |
| 30 | 421999 - Reservoir Diaphragm - NOT AVAILABLE | Call For Details | |
| 31 | 421997 - Reservoir Body | Add To Cart | |
| - | 420350 - Reservoir to Hydro Gasket | Add To Cart | |
| 32 | 103735 - O-Ring Hex Head Plug | Add To Cart | |
| 33 | 365528 - 10MB O-Ring Boss Hex Plug | Call For Details | |
| 34 | 603223 - Check Valve Assembly | Add To Cart | |
| 35 | 103739 - O-Ring Boss Plug | Add To Cart | |
| - | 126524 - O-Ring | Add To Cart | |
| 36 | 420350 - Reservoir to Hydro Gasket | Add To Cart |
