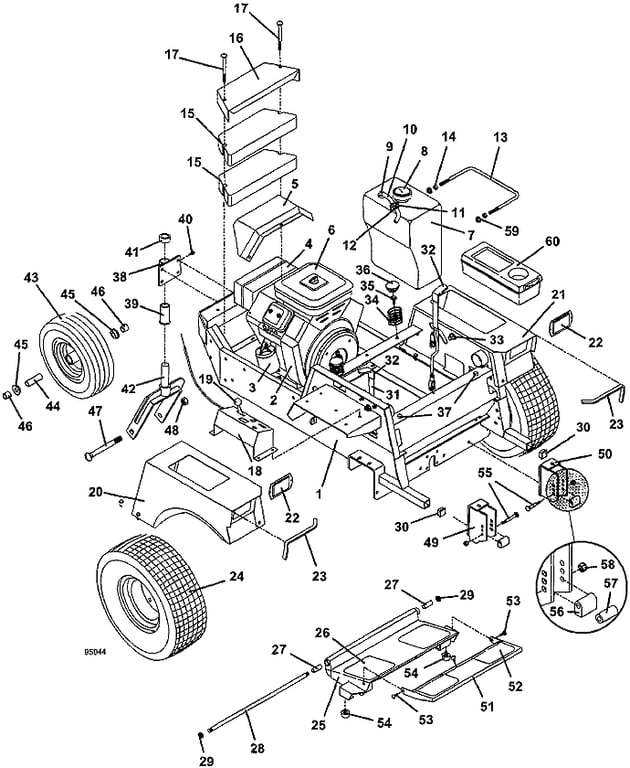

614 Tractor Assembly - 1997
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643835 - 600 Lower Frame | Call For Details | |
| - | 643838 - 600 97 Upper Frame | Call For Details | |
| 2 | 100115 - 14hp Briggs & Stratton Vanguard Engine | Call For Details | |
| 3 | 100803 - Briggs Oil Filter | Add To Cart | |
| 4 | 603592 - Muffler & Support Assembly | Add To Cart | |
| - | 729196 - Vanguard Heat Shield | Add To Cart | |
| 5 | 722266 - 600 Muffler Shield | Add To Cart | |
| 6 | 100920 - Briggs Air Filter | Call For Details | |
| - | 100921 - Briggs & Stratton Precleaner Air Filter | Call For Details | |
| 7 | 603810 - 600 Fuel Tank Assembly | Add To Cart | |
| 8 | 100210 - Fuel Cap | Add To Cart | |
| 9 | 101830 - Fuel Draw Tube | Add To Cart | |
| 10 | 821725 - Fuel Line Hose | Add To Cart | |
| 11 | 366560 - Briggs In-Line Fuel Filter | Add To Cart | |
| 12 | 280260 - Spring Hose Clamp | Add To Cart | |
| 13 | 730450 - 600 Fuel Tank Mount | Add To Cart | |
| 14 | 254450 - Nut | Add To Cart | |
| 15 | 323933 - 34 lb. Counterweight | Add To Cart | |
| 16 | 729514 - 34 lb. Weight Cover Plate | Call For Details | |
| 17 | 247325 - Carriage Bolt | Add To Cart | |
| 18 | 693110 - 600 Console Panel with Decal | Call For Details | |
| 19 | 142210 - Mechanical Choke Housing | Add To Cart | |
| 20 | 693202 - 600S right Fender with Decals | Call For Details | |
| - | 163222 - 614 right Trim Decal | Call For Details | |
| 21 | 693203 - 600S left Fender with Decals | Call For Details | |
| - | 163223 - 614 left Trim Decal | Call For Details | |
| 22 | 721033 - Headlight Filler Panel | Call For Details | |
| 23 | 822631 - Fender Edge Trim | Add To Cart | |
| 24 | 483905 - 18 X 8.5 X 8 Wheel & Turf Tire | Call For Details | |
| - | 482452 - 18 X 8.5 X 8 Turf Tire | Add To Cart | |
| - | 483398 - 8 X 5.375 4-Bolt Wheel | Add To Cart | |
| 25 | 604347 - 600 Adjustable Foot Platform | Call For Details | |
| 26 | 420905 - Foot Rest Tread | Add To Cart | |
| 27 | 422615 - Nylon Bearing | Add To Cart | |
| 28 | 780656 - 600 Footrest Pivot Rod | Call For Details | |
| 29 | 253470 - Nylon Insert Nut | Add To Cart | |
| 30 | 422065 - 1 inch ID Square Plastic Plug | Add To Cart | |
| 31 | 603852 - 614/616 Throttle Assembly | Call For Details | |
| - | 323640 - Control Cable Assembly | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| 32 | 422150 - Handle Grip | Add To Cart | |
| 33 | 902280 - Spacer | Add To Cart | |
| - | 243330 - Hex Bolt | Add To Cart | |
| - | 257040 - Washer | Add To Cart | |
| 34 | 283516 - Compression Spring | Add To Cart | |
| 35 | 253203 - Whiz Flange Bolt | Add To Cart | |
| 36 | 422127 - Seat Spring Cap | Add To Cart | |
| 37 | 424015 - Rubber Bumper | Add To Cart | |
| 38 | 824536 - 612 Rear Pivot Housing | Add To Cart | |
| 39 | 833260 - Flanged Sintered Bushing | Add To Cart | |
| 40 | 280776 - Zerk Grease Fitting | Add To Cart | |
| 41 | 280440 - Collar Set | Add To Cart | |
| 42 | 643367 - 400 Rear Fork | Add To Cart | |
| 43 | 483861 - 13 x 5 x 6 Wheel & Tire with Bearing & Spacer | Add To Cart | |
| - | 482350 - 13 X 5 X 6 Tubeless Ribbed Tire | Add To Cart | |
| - | 483301 - 6 X 3.25 Tan Wheel with Bearing & Spacer | Add To Cart | |
| 44 | 902475 - Rear Wheel Bearing Spacer | Add To Cart | |
| 45 | 120050 - Ball Bearing | Add To Cart | |
| 46 | 902425 - Axle Spacer | Add To Cart | |
| 47 | 247725 - Carriage Bolt | Add To Cart | |
| 48 | 253970 - Lock Nut | Add To Cart | |
| 49 | 643097 - 600 right QD Deck Mount | Add To Cart | |
| 50 | 643098 - 600 left QD Deck Mount | Add To Cart | |
| 51 | 603300 - 600 Foot Platform Extension | Call For Details | |
| 52 | 420904 - Footrest Extension Tread | Add To Cart | |
| 53 | 247130 - Carriage Bolt | Add To Cart | |
| 54 | 424052 - Rubber Bumper | Add To Cart | |
| 55 | 247280 - Special Carriage Bolt | Add To Cart | |
| 56 | 282575 - Deck Mount Bushing | Add To Cart | |
| 57 | 282576 - Floating Deck Mount Bushing | Add To Cart | |
| 58 | 253460 - Nylon Insert Nut | Add To Cart | |
| 59 | 253043 - Whiz Nut | Add To Cart | |
| 60 | 422040 - Tool Box | Add To Cart | |
| 61 | 603261 - Decal Set for 614 | Call For Details |
