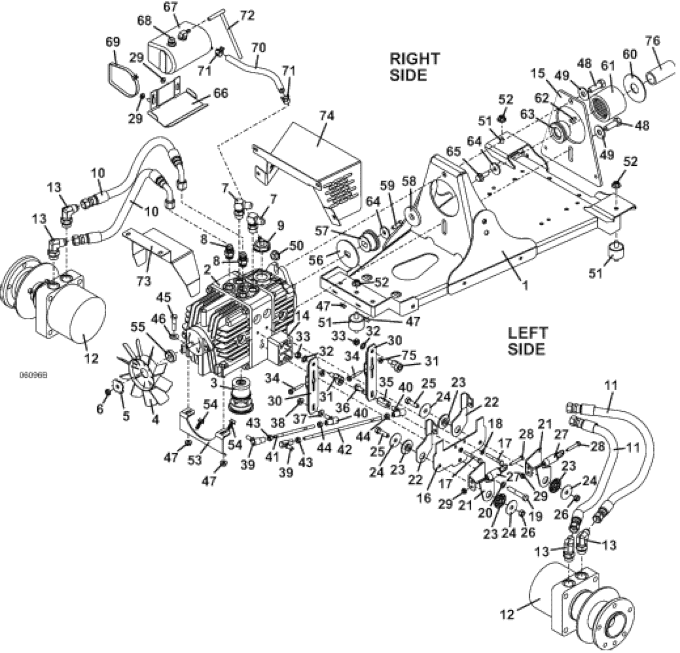

616T Drive Assembly - 2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643945 - 600T Drive Train Mount | Call For Details | |
| 2 | 391467 - Parker Tandem Hydro | Add To Cart | |
| 3 | 130505 - Tandem Transmission Filter | Add To Cart | |
| 4 | 130431 - H2 & T Hydro Fan | Add To Cart | |
| 5 | 130432 - Fan Retainer Washer | Add To Cart | |
| 6 | 253461 - Nylon Insert Nut | Add To Cart | |
| 7 | 360061 - O-Ring Adapter | Add To Cart | |
| 8 | 360059 - O-Ring Adapter | Add To Cart | |
| 9 | 130510 - T2 Expansion Tank Adapter | Add To Cart | |
| - | 126550 - O-Ring | Add To Cart | |
| 10 | 424338 - Hose Assembly | Add To Cart | |
| 11 | 424352 - Hose Assembly | Add To Cart | |
| 12 | 391475 - Wheel Motor Front Port | Add To Cart | |
| - | 604438 - 616T Hub & Rotor Assembly | Call For Details | |
| 13 | 360078 - 90 Degree Adapter Fitting | Call For Details | |
| 14 | 422039 - Return Plastic Spacer | Call For Details | |
| 15 | 775123 - Tandem Pump Mount Spacer | Call For Details | |
| 16 | 729542 - Return Mount | Call For Details | |
| 17 | 243045 - Hex Bolt | Add To Cart | |
| 18 | 257392 - Lock Washer | Add To Cart | |
| 19 | 243350 - Hex Bolt | Add To Cart | |
| 20 | 257412 - Lock Washer | Add To Cart | |
| 21 | 729639 - Return Arm | Add To Cart | |
| 22 | 729398 - Neutral Return Arm | Add To Cart | |
| 23 | 822304 - Neutral Return Pivot Bearing | Add To Cart | |
| 24 | 257044 - Fender Washer | Add To Cart | |
| 25 | 243335 - Hex Bolt | Add To Cart | |
| 26 | 253890 - Lock Nut | Add To Cart | |
| 27 | 283823 - Extension Spring | Add To Cart | |
| 28 | 243035 - Hex Bolt | Add To Cart | |
| 29 | 253025 - Whiz Nut | Add To Cart | |
| 30 | 644862 - Tandem Neutral Return Arm | Add To Cart | |
| 31 | 603729 - 600T Eccentric Roller Assembly | Add To Cart | |
| 32 | 257410 - External Star Washer | Add To Cart | |
| 33 | 254450 - Nut | Add To Cart | |
| 34 | 270832 - Hex Bolt | Add To Cart | |
| 35 | 783730 - Neutral Return Spacer | Add To Cart | |
| 36 | 253186 - Hex Whiz Bolt | Add To Cart | |
| 37 | 257019 - Flat Washer | Add To Cart | |
| 38 | 253038 - Whiz Nut | Add To Cart | |
| 39 | 265615 - Right Handed Thread Ball Joint | Add To Cart | |
| 40 | 265616 - Left Handed Thread Ball Joint | Add To Cart | |
| 41 | 780151 - Steering Link Rod | Add To Cart | |
| 42 | 780153 - 600T Steering Link Rod | Call For Details | |
| 43 | 254441 - Nut | Add To Cart | |
| 44 | 254444 - Nut | Add To Cart | |
| 45 | 243215 - Hex Bolt | Add To Cart | |
| 46 | 257030 - Washer | Add To Cart | |
| 47 | 253035 - Whiz Nut | Add To Cart | |
| 48 | 243565 - Hex Bolt | Add To Cart | |
| 49 | 257060 - Washer | Add To Cart | |
| 50 | 253066 - Whiz Nut | Add To Cart | |
| 51 | 424079 - Vibration Isolator | Add To Cart | |
| 52 | 253043 - Whiz Nut | Add To Cart | |
| 53 | 729529 - Tandem Pump Front Mount | Add To Cart | |
| 54 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 55 | 130430 - H2 Fan Hub | Add To Cart | |
| 56 | 774175 - DD Washer | Add To Cart | |
| 57 | 388577 - Coupler Hub | Add To Cart | |
| 58 | 424150 - Coupling Stabilizer | Add To Cart | |
| 59 | 243206 - Hex Bolt | Add To Cart | |
| 60 | 774176 - 3' OD Washer | Add To Cart | |
| 61 | 388560 - Nylon Coupler Sleeve | Add To Cart | |
| 62 | 281580 - Square Key | Add To Cart | |
| 63 | 388578 - Coupler Hub | Add To Cart | |
| 64 | 774020 - Washer | Add To Cart | |
| 65 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 66 | 644094 - Oil Reservoir Bracket | Call For Details | |
| 67 | 422033 - Hydro Expansion Tank | Add To Cart | |
| 68 | 365516 - 3/8' Threaded Plastic Plug | Add To Cart | |
| 69 | 423154 - Tie | Add To Cart | |
| 70 | 821709 - Hydro Expansion Hose | Add To Cart | |
| 71 | 280264 - Hose Spring Clamp | Add To Cart | |
| 72 | 821723 - Clear Vent Hose | Add To Cart | |
| 73 | 722969 - 600T Fan Shroud | Call For Details | |
| 74 | 722972 - 616T Coupler Shield | Call For Details | |
| 75 | 274114 - Whiz Nut | Add To Cart | |
| 76 | 902555 - Spacer | Call For Details |
