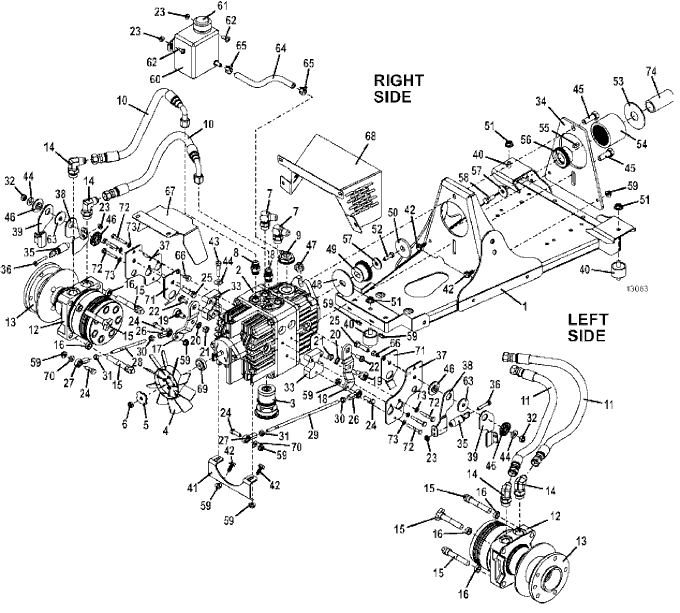

616T Drive Assembly - 2015
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643945 - 600T Drive Train Mount | Call For Details | |
| 2 | 391468 - Tandem Hydro Pump | Add To Cart | |
| 3 | 130505 - Tandem Transmission Filter | Add To Cart | |
| 4 | 130431 - H2 & T Hydro Fan | Add To Cart | |
| 5 | 130432 - Fan Retainer Washer | Add To Cart | |
| 6 | 253461 - Nylon Insert Nut | Add To Cart | |
| 7 | 360061 - O-Ring Adapter | Add To Cart | |
| 8 | 360059 - O-Ring Adapter | Add To Cart | |
| 9 | 130510 - T2 Expansion Tank Adapter | Add To Cart | |
| - | 126550 - O-Ring | Add To Cart | |
| 10 | 424338 - Hose Assembly | Add To Cart | |
| 11 | 424352 - Hose Assembly | Add To Cart | |
| 12 | 391475 - Wheel Motor Front Port | Add To Cart | |
| 13 | 604434 - Hub & Rotor Assembly | Call For Details | |
| 14 | 360078 - 90 Degree Adapter Fitting | Call For Details | |
| 15 | 243597 - Diamond Head Bolt | Add To Cart | |
| 16 | 902286 - Wheel Motor Spacer | Add To Cart | |
| 17 | 726162 - Right Nuetral Return Arm | Add To Cart | |
| 18 | 726163 - Left Nuetral Return Arm | Add To Cart | |
| 19 | 603734 - 6/700T Eccentric Roller Assembly | Add To Cart | |
| 20 | 257410 - External Star Washer | Add To Cart | |
| 21 | 254450 - Nut | Add To Cart | |
| 22 | 271021 - Hex Bolt | Add To Cart | |
| 23 | 253025 - Whiz Nut | Add To Cart | |
| 24 | 243205 - Hex Bolt | Add To Cart | |
| 25 | 243340 - Hex Bolt | Add To Cart | |
| 26 | 265650 - Right Female Rod End | Add To Cart | |
| 27 | 265651 - Left Female Rod End | Add To Cart | |
| 28 | 780180 - Steering Link Rod | Add To Cart | |
| 29 | 780181 - Steering Link Rod | Call For Details | |
| 30 | 254441 - Nut | Add To Cart | |
| 31 | 254444 - Nut | Add To Cart | |
| 32 | 253890 - Lock Nut | Add To Cart | |
| 33 | 422049 - Return Spacer | Add To Cart | |
| 34 | 775123 - Tandem Pump Mount Spacer | Call For Details | |
| 35 | 283823 - Extension Spring | Add To Cart | |
| 36 | 243035 - Hex Bolt | Add To Cart | |
| 37 | 766037 - Nuetral Return Mount | Add To Cart | |
| 38 | 766043 - Nuetral Return Arm | Add To Cart | |
| 39 | 766044 - Nuetral Return Arm | Add To Cart | |
| 40 | 424079 - Vibration Isolator | Add To Cart | |
| 41 | 729529 - Front Tandem Pump Mount | Add To Cart | |
| 42 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 43 | 243215 - Hex Bolt | Add To Cart | |
| 44 | 257030 - Washer | Add To Cart | |
| 45 | 243570 - Hex Bolt | Add To Cart | |
| 46 | 822304 - Nuetral Return Pivot Bearing | Add To Cart | |
| 47 | 253066 - Whiz Nut | Add To Cart | |
| 48 | 774175 - DD Washer | Add To Cart | |
| 49 | 388577 - Coupler Hub | Add To Cart | |
| 50 | 424150 - Coupling Stabilizer | Add To Cart | |
| 51 | 253043 - Whiz Nut | Add To Cart | |
| 52 | 243206 - Hex Bolt | Add To Cart | |
| 53 | 774176 - 3' OD Washer | Add To Cart | |
| 54 | 388560 - Nylon Coupler Sleeve | Add To Cart | |
| 55 | 281580 - Square Key | Add To Cart | |
| 56 | 388578 - Coupler Hub | Add To Cart | |
| 57 | 774020 - Washer | Add To Cart | |
| 58 | 243331 - Hex Bolt | Add To Cart | |
| 59 | 253035 - Whiz Nut | Add To Cart | |
| 60 | 421981 - Oil Expansion Tank | Add To Cart | |
| 61 | 421991 - Vented Cap with Gasket | Add To Cart | |
| 62 | 253179 - Truss Phillips Whiz Bolt | Add To Cart | |
| 63 | 774292 - Washer | Add To Cart | |
| 64 | 821709 - Hydro Expansion Hose | Add To Cart | |
| 65 | 280261 - Hose Spring Clamp | Add To Cart | |
| 66 | 243186 - Hex Bolt | Add To Cart | |
| 67 | 722969 - 600T Fan Shroud | Call For Details | |
| 68 | 722972 - 616T Coupler Shield | Call For Details | |
| 69 | 130430 - H2 Fan Hub | Add To Cart | |
| 70 | 257032 - Washer | Add To Cart | |
| 71 | 766038 - Adjustment Plate | Add To Cart | |
| 72 | 243038 - Hex Bolt | Add To Cart | |
| 73 | 257392 - Lock Washer | Add To Cart | |
| 74 | 902555 - Spacer | Call For Details |
