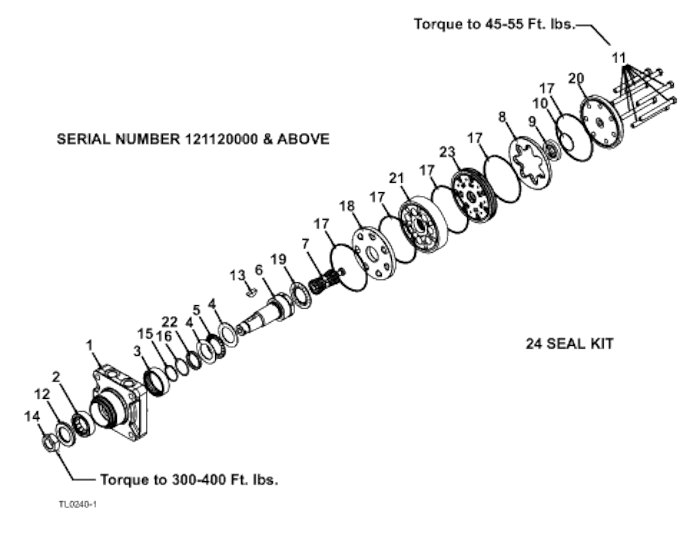

616T Torque Motor Assembly - 2013 Page 10Motor SN 121120000 & Above
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | Not Available | Unavailable | |
| 2 | 130370 - Outer Bearing | Add To Cart | |
| 3 | 130340 - Inner Bearing | Add To Cart | |
| 4 | 130345 - Thrust Washer | Call For Details | |
| 5 | 130344 - Outer Thrust Bearing | Add To Cart | |
| 6 | 130308 - T Coupling Shaft | Add To Cart | |
| 7 | 130314 - T Drive Link | Call For Details | |
| 8 | Not Available | Unavailable | |
| 9 | Not Available | Unavailable | |
| 10 | 130312 - Commutator Sleeve | Add To Cart | |
| 11 | Not Available | Unavailable | |
| 12 | 130315 - Dirt & Water Seal | Add To Cart | |
| 13 | 281860 - Woodruff key | Add To Cart | |
| 14 | 254522 - Nut | Add To Cart | |
| 15 | 130306 - Washer Ring | Add To Cart | |
| 16 | 130305 - Backup Washer | Add To Cart | |
| 17 | 130386 - Seal Ring | Add To Cart | |
| 18 | 130330 - Wear Plate | Add To Cart | |
| 19 | 130342 - Inner Thrust Bearing | Add To Cart | |
| 20 | Not Available | Unavailable | |
| 21 | 130378 - T Rotor Set | Call For Details | |
| 22 | 130338 - T Inner Seal | Add To Cart | |
| 23 | Not Available | Unavailable | |
| 24 | 130387 - T Seal Kit | Add To Cart |
