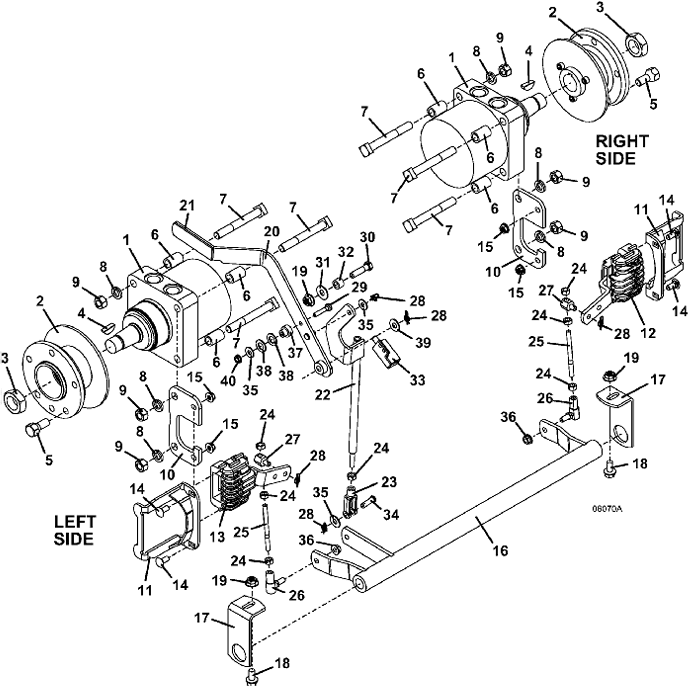

620T Brake Assembly - 2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603613 - Wheel Motor with Hub | Add To Cart | |
| 2 | 604439 - Hub Rotor Assembly | Add To Cart | |
| - | 775193 - 6.0 Brake Rotor | Call For Details | |
| - | 259592 - Socket Head Screw | Add To Cart | |
| 3 | 254522 - Nut | Add To Cart | |
| 4 | 281860 - Woodruff Key | Add To Cart | |
| 5 | 248565 - Lug Bolt | Add To Cart | |
| 6 | 902299 - Wheel Motor Spacer | Call For Details | |
| 7 | 243622 - Square Head Bolt | Add To Cart | |
| 8 | 257432 - Lock Washer | Add To Cart | |
| 9 | 254470 - Nut | Add To Cart | |
| 10 | 783803 - 6 inch Rotor Brake Mount | Call For Details | |
| 11 | 644850 - 600T Caliper Mount | Call For Details | |
| 12 | 481108 - clockwise Brake Assembly | Call For Details | |
| - | 603150 - Brake Pad Kit | Add To Cart | |
| 13 | 481109 - Brake Assembly | Call For Details | |
| - | 603150 - Brake Pad Kit | Add To Cart | |
| 14 | 247130 - Carriage Bolt | Add To Cart | |
| 15 | 253035 - Whiz Nut | Add To Cart | |
| 16 | 644594 - 600T Brake Pivot Tube | Call For Details | |
| 17 | 732617 - Brake Pivot Mount | Add To Cart | |
| 18 | 253200 - Whiz Bolt | Add To Cart | |
| 19 | 253043 - Whiz Nut | Add To Cart | |
| 20 | 644035 - 700/900 Brake Lever | Call For Details | |
| 21 | 422150 - Handle Grip | Add To Cart | |
| 22 | 644057 - Brake Linkage Arm | Call For Details | |
| 23 | 265537 - Clevis Yoke | Add To Cart | |
| 24 | 254441 - Nut | Add To Cart | |
| 25 | 780158 - Brake Linkage Rod | Add To Cart | |
| 26 | 265615 - Righthand Thread Ball Joint | Add To Cart | |
| 27 | 880926 - .312 Brake Linkage Pin | Add To Cart | |
| 28 | 260606 - Cotter Ring | Add To Cart | |
| 29 | 243030 - Hex Bolt | Add To Cart | |
| 30 | 243340 - Hex Bolt | Add To Cart | |
| 31 | 257040 - Washer | Add To Cart | |
| 32 | 902280 - Spacer | Add To Cart | |
| 33 | 183894 - Brake Interlock Switch | Add To Cart | |
| 34 | 261284 - Clevis Pin | Add To Cart | |
| 35 | 257020 - Washer | Add To Cart | |
| 36 | 253038 - Whiz Nut | Add To Cart | |
| 37 | 881130 - Brake Lever Spacer | Call For Details | |
| 38 | 257063 - Washer | Add To Cart | |
| 39 | 257030 - Washer | Add To Cart | |
| 40 | 253025 - Whiz Nut | Add To Cart |
