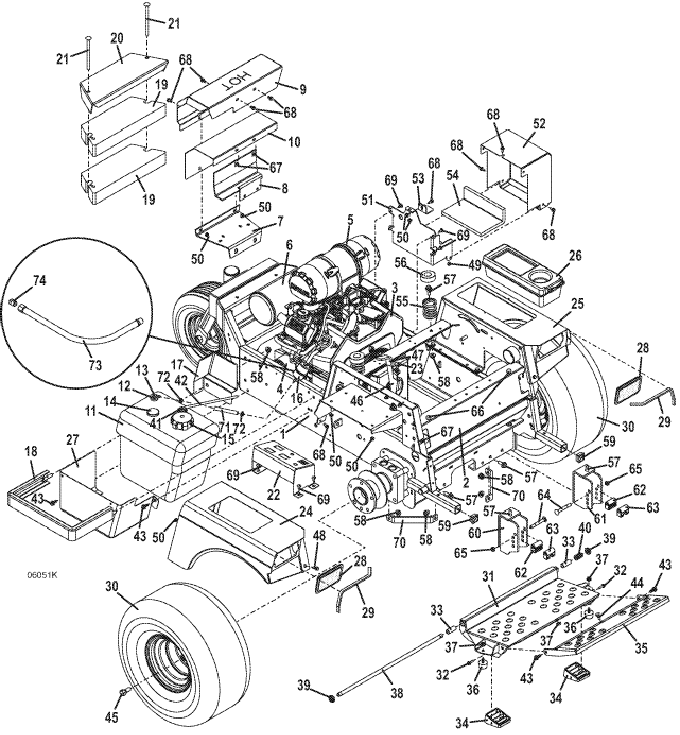

623t Tractor Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643873 - 620T Lower Frame | Call For Details | |
| 2 | 643874 - 600T Upper Frame | Call For Details | |
| 3 | 100156 - 23hp Kohler Front Shaft Engine | Call For Details | |
| - | 900117 - Kohler Engine Shim | Add To Cart | |
| 4 | 100802 - Kohler Oil Filter | Add To Cart | |
| 5 | 100936 - Outer HD Air Filter | Add To Cart | |
| - | 100937 - Inner HD Air Filter | Call For Details | |
| 6 | 101216 - Kohler CH18 45 degree Muffler | Add To Cart | |
| - | 101041 - Kohler Exhaust Gasket | Add To Cart | |
| 7 | 729270 - Lower Muffler Bracket | Add To Cart | |
| 8 | 605125 - Shield Mount Bracket Assembly | Add To Cart | |
| 9 | 722391 - Muffler Shield | Add To Cart | |
| 10 | 722309 - Inner Panel Shield | Add To Cart | |
| 11 | 605792 - 4x.25 FM Tank Assembly | Add To Cart | |
| 12 | 101875 - Fuel Tube Bushing | Add To Cart | |
| 13 | 363925 - Fuel Tube | Add To Cart | |
| 14 | 141142 - Intank Fuel Gauge | Add To Cart | |
| - | 424275 - Grommet | Add To Cart | |
| 15 | 100212 - Internal Sealed Tether Fuel Cap | Add To Cart | |
| 16 | 101001 - Kohler Fuel Filter | Call For Details | |
| 17 | 721502 - 600 Tank Shield | Add To Cart | |
| 18 | 645826 - 4.3 Tank Mount | Call For Details | |
| 19 | 323933 - 34 lb. Counterweight | Add To Cart | |
| 20 | 729514 - 34 lb. Weight Cover | Call For Details | |
| 21 | 247325 - Carriage Bolt | Add To Cart | |
| 22 | 693118 - Console w/Decal | Call For Details | |
| 23 | 142239 - Mechanical Choke | Add To Cart | |
| 24 | 693196 - 600T Rt Fender with Decals | Add To Cart | |
| 25 | 693197 - 600T Lt Fender with Decals | Add To Cart | |
| 26 | 422040 - Tool Box | Add To Cart | |
| 27 | 751350 - 4.3 Tank Shield | Call For Details | |
| 28 | 422079 - Hole Plug Work Lamp | Add To Cart | |
| 29 | 822632 - Trim | Add To Cart | |
| 30 | 483922 - Wheel & Turf Tire 20 x 10 x 8 | Call For Details | |
| - | 482472 - Turf Tire 20 x 10 x 8 | Add To Cart | |
| - | 482478 - Bar Tread Tire 21 x 11 x 8 | Call For Details | |
| - | 483414 - 5 Bolt Wheel 8 x 7.75 | Add To Cart | |
| - | 483926 - right Wheel & Bar Tread Tire 21 x 11 x 8 | Add To Cart | |
| - | 483927 - left Wheel & Bar Tread Tire 21 x 11 x 8 | Add To Cart | |
| 31 | 604348 - 620T Adjustable Foot Platform Assembly | Call For Details | |
| 32 | 243026 - Hex Bolt | Add To Cart | |
| 33 | 422615 - Nylon Bearing | Add To Cart | |
| 34 | 424100 - Footrest Isolator Block | Add To Cart | |
| 35 | 643305 - 600 Estension Foot Platform | Call For Details | |
| 36 | 424052 - Rubber Bumper | Add To Cart | |
| 37 | 253035 - Whiz Nut | Add To Cart | |
| 38 | 780656 - Footrest Pivot Rod | Call For Details | |
| 39 | 253470 - Nylon Insert Nut | Add To Cart | |
| 40 | 283312 - Compression Spring | Add To Cart | |
| 41 | 100216 - 2011 Fuel Tank Valve | Add To Cart | |
| 42 | 821757 - Fuel Vapor Hose | Add To Cart | |
| 43 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 44 | 247130 - Carriage Bolt | Add To Cart | |
| 45 | 248565 - Lug Bolt | Add To Cart | |
| 46 | 605823 - Throttle/Choke Mount Assembly | Add To Cart | |
| - | 323643 - Control Cable Assembly | Add To Cart | |
| - | 722736 - Heavy Duty Throttle Lever Stop | Add To Cart | |
| 47 | 422150 - Handle Grip | Add To Cart | |
| 48 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 49 | 253440 - Nylon Insert Nut | Add To Cart | |
| 50 | 253025 - Whiz Nut | Add To Cart | |
| 51 | 644099 - G2 AC Battery Box | Call For Details | |
| 52 | 644162 - AC Battery Cover | Add To Cart | |
| 53 | 729001 - Battery Clamp | Add To Cart | |
| 54 | 427273 - Battery Tray Pad | Add To Cart | |
| 55 | 283516 - Compression Spring | Add To Cart | |
| 56 | 422127 - Seat Spring Cap | Add To Cart | |
| 57 | 253203 - Whiz Flange Bolt | Add To Cart | |
| 58 | 253043 - Whiz Nut | Add To Cart | |
| 59 | 422065 - 1 inch ID Square Plastic Plug | Add To Cart | |
| 60 | 643894 - 600 QD right Deck Mount | Add To Cart | |
| 61 | 643895 - 600 QD left Deck Mount | Call For Details | |
| 62 | 282575 - Deck Mount Bushing | Add To Cart | |
| 63 | 282576 - Floating Deck Mount Bushing | Add To Cart | |
| 64 | 247280 - Special Carriage Bolt | Add To Cart | |
| 65 | 253460 - Nylon Insert Nut | Add To Cart | |
| 66 | 424015 - Rubber Bumper | Add To Cart | |
| 67 | 254431 - Speed Nut | Add To Cart | |
| 68 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 69 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 70 | 732824 - Crossmember Strap | Call For Details | |
| 71 | 821710 - Fuel Hose | Add To Cart | |
| 72 | 280260 - Hose Clamp | Add To Cart | |
| 73 | 424474 - Engine Oil Drain Hose Assembly | Add To Cart | |
| 74 | 365515 - Metal Pipe Plug | Add To Cart | |
| 75 | 605357 - 623T Decal Set | Add To Cart |
