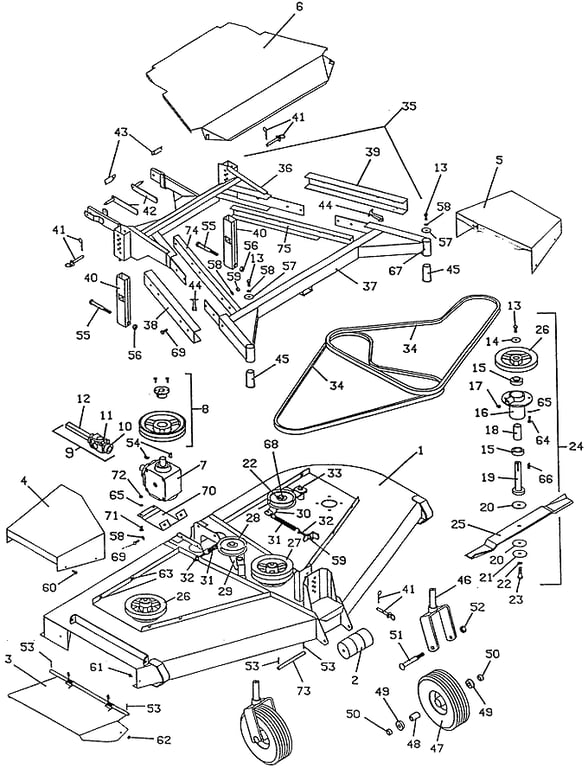

6372 Mower Assembly - 1989
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643273 - 6372/9072 Deck Weldment | Call For Details | |
| 2 | 426136 - Roller Assembly | Add To Cart | |
| 3 | 603289 - 72 inch Discharge Shield Assembly | Call For Details | |
| 4 | 643753 - 72 inch Right Belt Shield | Call For Details | |
| 5 | 643754 - 72 inch Left Belt Shield | Call For Details | |
| 6 | 603779 - 72 inch Center Shield Assembly | Call For Details | |
| 7 | 390028 - Right Angle Gearbox | Add To Cart | |
| 8 | 604759 - Sheave with Hub | Add To Cart | |
| 9 | 398520 - UN Half Shaft | Add To Cart | |
| 10 | 401013 - Yoke | Add To Cart | |
| 11 | 121010 - Cross Bearing | Add To Cart | |
| 12 | 402605 - Yoke Shaft | Add To Cart | |
| 13 | 243331 - Hex Bolt | Add To Cart | |
| 14 | 257041 - Cupped Washer | Add To Cart | |
| 15 | 120081 - Ball Bearing without Fluid Seal | Add To Cart | |
| 16 | 320526 - Spindle Grease Housing | Add To Cart | |
| 17 | 280734 - Zerk Grease Fitting | Add To Cart | |
| 18 | 903640 - Tube Bearing Spacer | Add To Cart | |
| 19 | 603775 - STD Blade Spindle Shaft | Add To Cart | |
| 20 | 421200 - Fiber Washer | Add To Cart | |
| 21 | 257061 - Washer | Add To Cart | |
| 22 | 257432 - Lock Washer | Add To Cart | |
| 23 | 243581 - Hex Bolt | Add To Cart | |
| 24 | 623785 - Blade Spindle Assembly (includes items 13 - 23) | Add To Cart | |
| 25 | 320253 - 25 Inch Notched High Lift Blade | Call For Details | |
| 26 | 415900 - Sheave | Add To Cart | |
| 27 | 416140 - Sheave | Call For Details | |
| 28 | 393225 - Idler | Add To Cart | |
| 29 | 603073 - 72 inch Lower Idler Arm | Add To Cart | |
| 30 | 603074 - 52 61 Idler Arm with Bearing | Add To Cart | |
| - | 422585 - Nylon Bearing | Add To Cart | |
| 31 | 283820 - Extension Spring with Swivel | Add To Cart | |
| 32 | 730391 - J Bolt Idler Adjustment | Add To Cart | |
| 33 | 259746 - Shoulder Bolt | Add To Cart | |
| 34 | 382062 - Belt | Add To Cart | |
| 35 | 603218 - 6372 Carrier Frame Assembly | Call For Details | |
| 36 | 643210 - 72 inch Carrier Rear Section | Call For Details | |
| 37 | 606265 - 90/9372 Front Crossmember Assembly | Call For Details | |
| 38 | 729432 - Right Center Wheel Support Channel | Call For Details | |
| 39 | 729433 - Left Center Wheel Support Channel | Call For Details | |
| 40 | 643818 - Deck Lift Tube | Call For Details | |
| 41 | 603625 - Pin Clip Assembly | Add To Cart | |
| - | 260525 - Hair Pin | Add To Cart | |
| 42 | 643625 - Attaching Pin | Add To Cart | |
| 43 | 261848 - Safety Pin | Add To Cart | |
| 44 | 281301 - Rubber Draw Latch | Add To Cart | |
| 45 | 833260 - Flanged Sintered Bushing | Add To Cart | |
| 46 | 604355 - 72 inch Fork Assembly | Add To Cart | |
| 47 | 603929 - 4.10 x 4 Flatproof Wheel | Add To Cart | |
| 48 | 902473 - Deck Wheel Bearing Spacer | Add To Cart | |
| 49 | 120050 - Ball Bearing | Add To Cart | |
| 50 | 902415 - Axle Spacer | Add To Cart | |
| 51 | 247715 - Carriage Bolt | Add To Cart | |
| 52 | 253970 - Lock Nut | Add To Cart | |
| 53 | 260652 - Cotter Pin | Add To Cart | |
| 54 | 281839 - Woodruff Key | Add To Cart | |
| 55 | 243625 - Bolt | Call For Details | |
| 56 | 253930 - Lock Nut | Add To Cart | |
| 57 | 774022 - Washer | Call For Details | |
| 58 | 257412 - Lock Washer | Add To Cart | |
| 59 | 254450 - Nut | Add To Cart | |
| 60 | 253175 - Whiz Hex Bolt | Add To Cart | |
| 61 | 253176 - Whiz Truss Bolt | Add To Cart | |
| 62 | 253025 - Whiz Nut | Add To Cart | |
| 63 | 254431 - Speed Nut | Add To Cart | |
| 64 | 243195 - Hex Bolt | Add To Cart | |
| 65 | 257402 - Lock Washer | Add To Cart | |
| 66 | 281586 - Square Key | Add To Cart | |
| 67 | 280777 - Zerk Grease Fitting | Add To Cart | |
| 68 | 243565 - Hex Bolt | Add To Cart | |
| 69 | 243305 - Hex Bolt | Call For Details | |
| 70 | 724197 - 72 Gear Box Shield | Call For Details | |
| 71 | 247130 - Carriage Bolt | Add To Cart | |
| 72 | 254450 - Nut | Add To Cart | |
| 73 | 780606 - Roller Pin | Add To Cart | |
| 74 | 729434 - Right 72 inch Reinforcement Channel | Call For Details | |
| 75 | 729435 - Left 72 inch Reinforcement Channel | Call For Details | |
| 76 | 603280 - Mower Safety Decal Set | Add To Cart |
