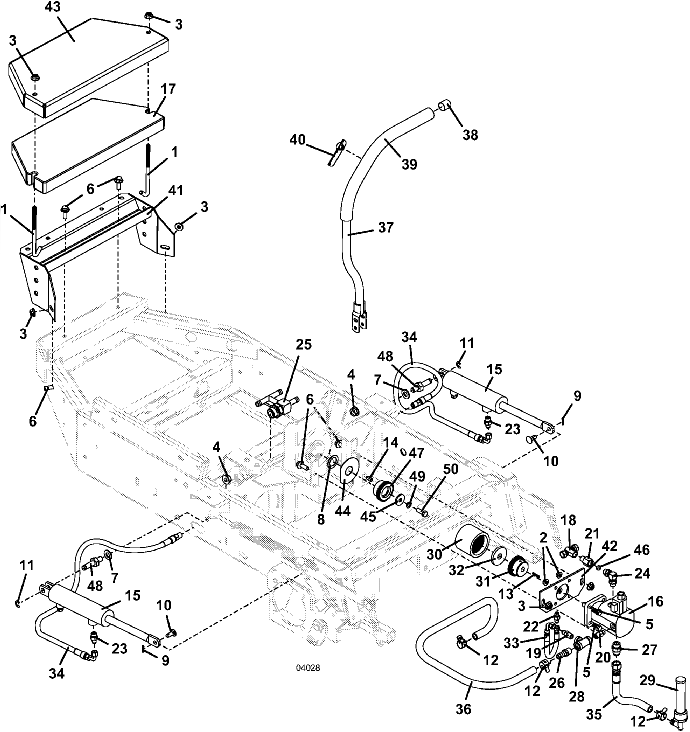

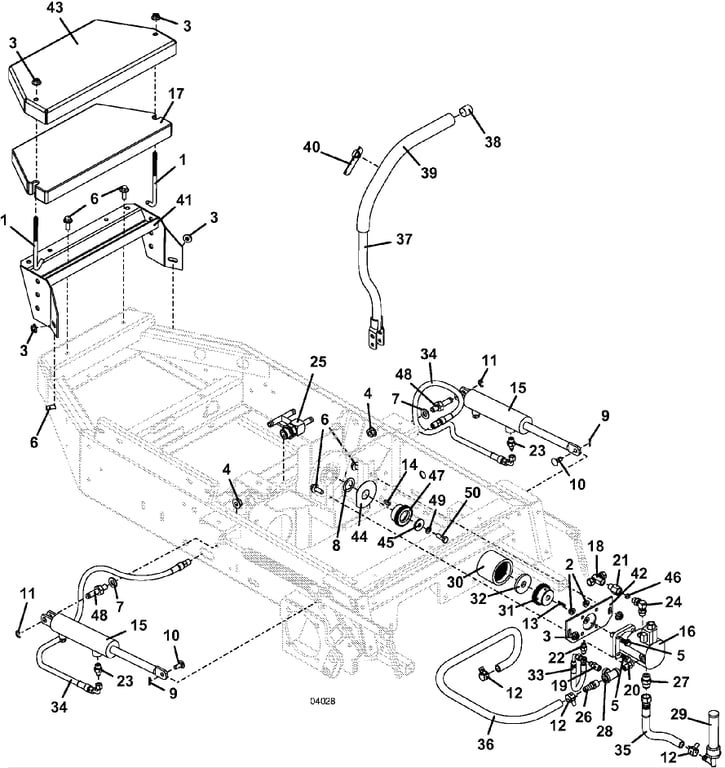

700G2 Hydraulic Lift Assembly serial numbers 5300000 through 5517202
click here for super-size image
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 240151 - Hook Bolt | Add To Cart | |
| 2 | 253035 - Whiz Nut | Add To Cart | |
| 3 | 253043 - Whiz Nut | Add To Cart | |
| 4 | 253066 - Whiz Nut | Add To Cart | |
| 5 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 6 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 7 | 257062 - Washer | Add To Cart | |
| 8 | 257106 - Washer | Add To Cart | |
| 9 | 260648 - Cotter Pin | Add To Cart | |
| 10 | 261339 - Clevis Pin | Add To Cart | |
| 11 | 263500 - External Retainer | Add To Cart | |
| 12 | 280265 - Spring Hose Clamp | Add To Cart | |
| 13 | 281540 - Square Key | Add To Cart | |
| 14 | 281580 - Square Key | Add To Cart | |
| 15 | 290021 - Hydraulic Cylinder | Add To Cart | |
| 16 | 290074 - Counterclockwise Hydraulic Pump with Solenoid Valve | Add To Cart | |
| - | 144950 - Hydraulic Solenoid Valve | Add To Cart | |
| 17 | 323951 - 750 Counterweight | Add To Cart | |
| 18 | 360005 - Swivel Tee Adapter | Add To Cart | |
| 19 | 360012 - Fitting Adapter | Call For Details | |
| 20 | 360040 - O-Ring Adapter | Call For Details | |
| 21 | 360045 - O-Ring Adapter | Add To Cart | |
| 22 | 360050 - O-Ring Adapter | Call For Details | |
| 23 | 360052 - O-Ring Adapter | Add To Cart | |
| 24 | 360055 - 90 degree O-Ring Adapter | Call For Details | |
| 25 | 360075 - 3 Beaded O-Ring Adapter | Call For Details | |
| 26 | 360260 - Brass Hose Insert | Call For Details | |
| 27 | 363832 - Steel Boss O-Ring Fitting | Add To Cart | |
| 28 | 366115 - Reducer Tee | Add To Cart | |
| 29 | 366557 - Strainer | Add To Cart | |
| 30 | 388560 - Nylon Coupler Sleeve | Add To Cart | |
| 31 | 388576 - Coupler Hub | Add To Cart | |
| 32 | 424150 - Coupling Stabilizer | Add To Cart | |
| 33 | 424302 - Hose Assembly | Add To Cart | |
| 34 | 424310 - Hose Assembly | Add To Cart | |
| 35 | 424339 - Hose Assembly | Add To Cart | |
| 36 | 821806 - .5 Hydraulic Hose | Add To Cart | |
| 37 | 604779 - Wide Std. Steering Lever Assembly with Switch | Add To Cart | |
| 38 | 422095 - .75 inch ID Vinyl Cap | Call For Details | |
| 39 | 422179 - Handle Grip | Call For Details | |
| 40 | 183940 - Sealed Dome Switch | Add To Cart | |
| - | 604799 - Hydraulic Lift Switch/Mount Assembly | Add To Cart | |
| 41 | 643915 - Weight Mount | Add To Cart | |
| 42 | 725326 - Pump Mount Plate | Call For Details | |
| 43 | 729691 - 50 lb. Weight Cover | Add To Cart | |
| 44 | 77045 - Washer | Call For Details | |
| 45 | 774020 - Washer | Add To Cart | |
| 46 | 780507 - Flow Restrictor | Add To Cart | |
| 47 | 831039 - Lower Flex Coupler | Add To Cart | |
| 48 | 887119 - Cylinder Mount Pin with Groove | Add To Cart | |
| 49 | 257412 - Lock Washer | Add To Cart | |
| 50 | 243331 - Hex Bolt | Add To Cart |
