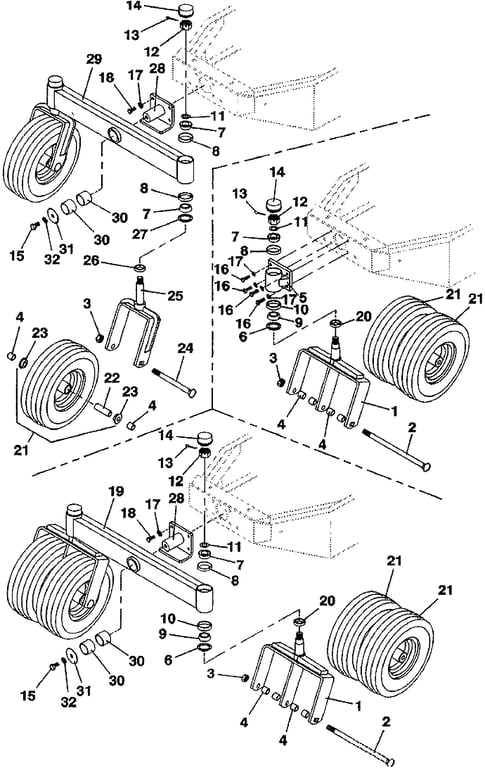

718K 720K Tail Wheel Assembly Options - 1993
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 604363 - Dual Fork Lock Nut Assembly | Call For Details | |
| 2 | 604153 - Fork 13 Bolt Assembly | Add To Cart | |
| 3 | 253970 - Lock Nut | Add To Cart | |
| 4 | 902425 - Axle Spacer | Add To Cart | |
| 5 | 604595 - Dual Fork Pivot Housing Assembly | Add To Cart | |
| 6 | 125855 - Seal | Add To Cart | |
| 7 | 122522 - Tapered Bearing | Add To Cart | |
| 8 | 123522 - Bearing Cup | Add To Cart | |
| 9 | 122523 - Tapered Bearing | Add To Cart | |
| 10 | 123521 - Bearing Cup | Add To Cart | |
| 11 | 257091 - 14 GA Bushing Washer | Add To Cart | |
| 12 | 254502 - Nut | Add To Cart | |
| 13 | 260668 - Cotter Pin | Add To Cart | |
| 14 | 481432 - Dust Cap | Add To Cart | |
| 15 | 243560 - Hex Bolt | Add To Cart | |
| 16 | 243335 - Hex Bolt | Add To Cart | |
| 17 | 257412 - Lock Washer | Add To Cart | |
| 18 | 243330 - Hex Bolt | Add To Cart | |
| 19 | 824508 - Dual-Wide Beam | Call For Details | |
| 20 | 830420 - Spacer | Add To Cart | |
| 21 | 483861 - 13 x 5 x 6 Wheel Tire with Bearing Spacer | Add To Cart | |
| - | 482350 - 13 x 5 x 6 Ribbed Tubeless Tire | Add To Cart | |
| - | 483301 - 6 x 3.25 Tan Wheel Tire with Bearing Spacer | Add To Cart | |
| 22 | 902475 - rear Wheel Bearing Spacer | Add To Cart | |
| 23 | 120050 - Ball Bearing | Add To Cart | |
| 24 | 247725 - Carriage Bolt | Add To Cart | |
| 25 | 604364 - Rear Fork Lock Nut Assembly | Add To Cart | |
| 26 | 282615 - Spacer | Add To Cart | |
| 27 | 125855 - Seal | Add To Cart | |
| 28 | 604597 - Rear Axle Pivot Assembly | Add To Cart | |
| 29 | 824510 - Dual Wheel Beam | Add To Cart | |
| 30 | 833275 - Reamed Oilite Bearing | Add To Cart | |
| 31 | 257061 - Washer | Add To Cart | |
| 32 | 257432 - Lock Washer | Add To Cart |
