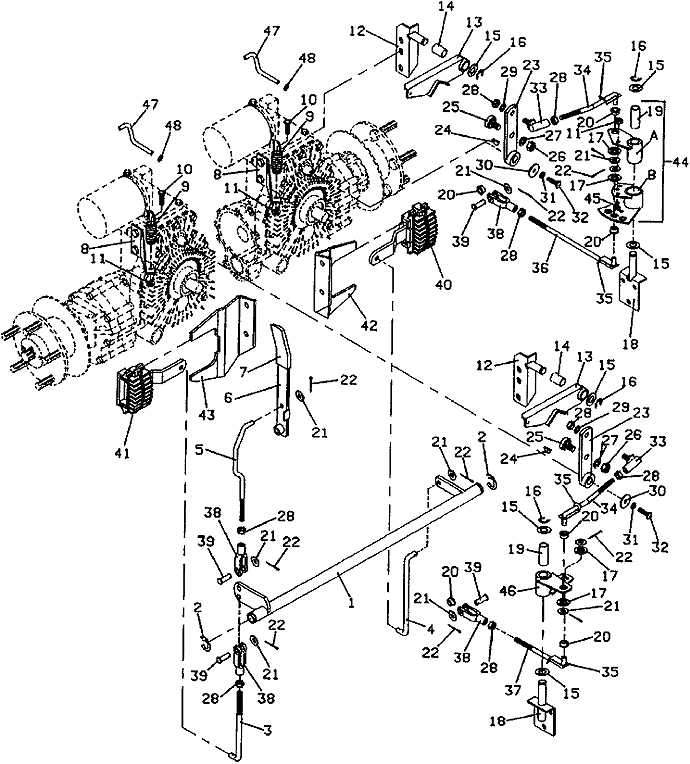

718K Drive Linkage Assembly - 1990
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643280 - Disc Brake Pivot Tube | Call For Details | |
| 2 | 263529 - External Retainer | Add To Cart | |
| 3 | 730289 - Steering Linkage Rod | Add To Cart | |
| 4 | 730355 - Lower left Disc Brake Rod | Call For Details | |
| 5 | 730356 - Disc Brake Adjustable Rod | Call For Details | |
| 6 | 603557 - 700 Brake Lever Assembly | Call For Details | |
| 7 | 422150 - Handle Grip | Add To Cart | |
| 8 | 729072 - Neutral Return Spring Bracket | Add To Cart | |
| 9 | 283823 - Extension Spring | Add To Cart | |
| 10 | 243030 - Hex Bolt | Add To Cart | |
| 11 | 253025 - Whiz Nut | Add To Cart | |
| 12 | 643603 - Neutral Return Pivot Mount | Add To Cart | |
| 13 | 603084 - Neutral Return Arm with Bearing | Add To Cart | |
| 14 | 422560 - Nylon Bearing | Add To Cart | |
| 15 | 257063 - Washer | Add To Cart | |
| 16 | 263500 - External Retainer | Add To Cart | |
| 17 | 257063 - Washer | Add To Cart | |
| 18 | 643627 - Control Linkage Pivot | Add To Cart | |
| 19 | 422585 - Nylon Bearing | Add To Cart | |
| 20 | 422540 - Nylon Bearing | Add To Cart | |
| 21 | 257030 - Washer | Add To Cart | |
| 22 | 260624 - Cotter Pin | Add To Cart | |
| 23 | 643057 - 700 Control Arm | Call For Details | |
| 24 | 281823 - Woodruff Key | Add To Cart | |
| 25 | 603726 - Eccentric Roller Assembly | Add To Cart | |
| 26 | 254450 - Nut | Add To Cart | |
| 27 | 257412 - Lock Washer | Add To Cart | |
| 28 | 254441 - Nut | Add To Cart | |
| 29 | 257402 - Lock Washer | Add To Cart | |
| 30 | 774012 - Flat Washer | Add To Cart | |
| 31 | 257392 - Lock Washer | Add To Cart | |
| 32 | 243025 - Hex Bolt | Call For Details | |
| 33 | 265615 - righthand thread Ball Joint | Add To Cart | |
| 34 | 730265 - Linkage Control Rod | Call For Details | |
| 35 | 722012 - Clip Backing | Add To Cart | |
| 36 | 730300 - Steering Linkage Rod | Call For Details | |
| 37 | 730264 - Steering Linkage Rod | Call For Details | |
| 38 | 265537 - Clevis Yoke | Add To Cart | |
| 39 | 261284 - Clevis Pin | Add To Cart | |
| 40 | 481120 - right Disc Brake | Call For Details | |
| 41 | 481121 - left Disc Brake | Add To Cart | |
| - | 603150 - Brake Pad Kit | Add To Cart | |
| 42 | 725205 - right Disc Brake Mount | Call For Details | |
| 43 | 725206 - left Disc Brake Mount | Add To Cart | |
| 44 | 603012 - right Adjustable Pivot Assembly | Call For Details | |
| 45 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 46 | 603566 - left Linkage Pivot with Bearing | Call For Details | |
| 47 | 730088 - Dump Valve Lever | Add To Cart | |
| 48 | 262934 - Push-On Retainer | Add To Cart |
