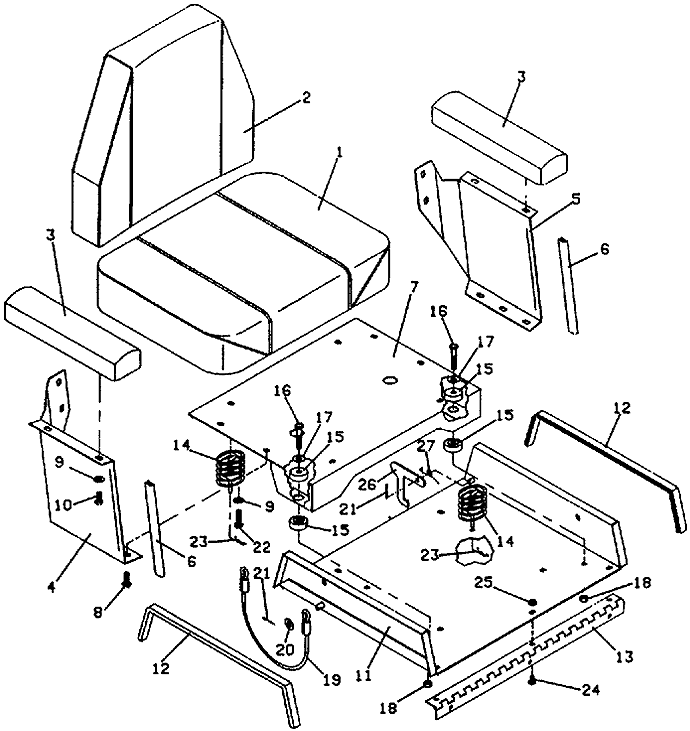

718K Seat Assembly - 1990
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321515 - Formed Seat Cushion | Add To Cart | |
| 2 | 321511 - Back Cushion | Add To Cart | |
| 3 | 321501 - Arm Rest | Add To Cart | |
| 4 | 724310 - right Side Member | Add To Cart | |
| 5 | 724311 - left Side Member | Add To Cart | |
| 6 | 822630 - Seat Edge Trim | Add To Cart | |
| 7 | 643664 - Seat Bottom Panel with Switch | Add To Cart | |
| 8 | 253193 - Hex Flange Whiz Bolt | Add To Cart | |
| 9 | 257410 - Star External Washer | Add To Cart | |
| 10 | 243195 - Hex Bolt | Add To Cart | |
| 11 | 643622 - Seat Support Panel | Call For Details | |
| 12 | 822645 - 700 Seat Mount Trim | Add To Cart | |
| 13 | 820166 - 700 Seat Hinge | Add To Cart | |
| 14 | 283515 - Compression Spring | Add To Cart | |
| 15 | 257037 - Step Bushing | Add To Cart | |
| 16 | 243215 - Hex Bolt | Add To Cart | |
| 17 | 257030 - Washer | Add To Cart | |
| 18 | 253450 - Nut with Nylon Insert | Add To Cart | |
| 19 | 323568 - Seat Cable Assembly | Add To Cart | |
| 20 | 257040 - Washer | Add To Cart | |
| 21 | 260648 - Cotter Pin | Add To Cart | |
| 22 | 243210 - Hex Bolt | Add To Cart | |
| 23 | 260520 - Hair Pin | Add To Cart | |
| 24 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 25 | 253025 - Whiz Nut | Add To Cart | |
| 26 | 774248 - Seat Latch | Call For Details | |
| 27 | 284407 - Torsion Spring | Add To Cart | |
| 28 | 603756 - 700 Seat Assembly with Switch Mount | Add To Cart |
