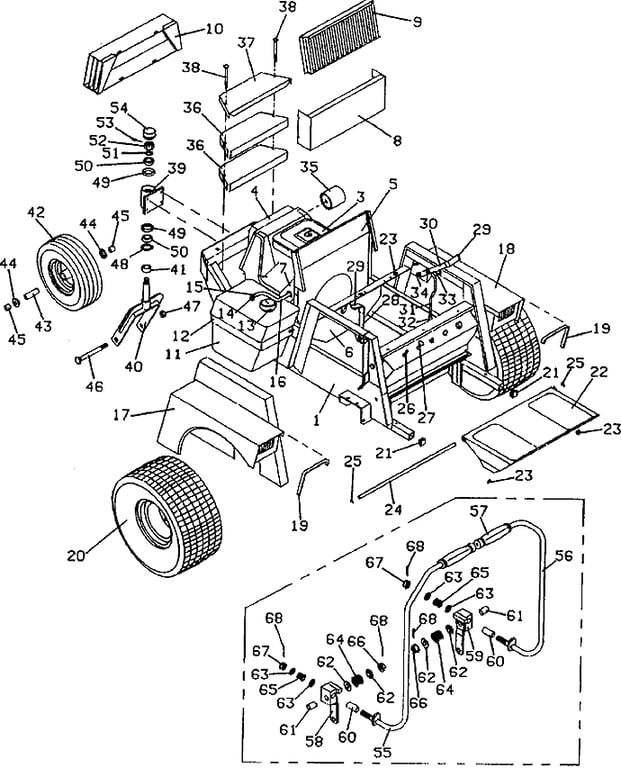

718K Tractor Assembly - 1990
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643398 - 718B/718K Tractor Frame | Call For Details | |
| 3 | 100930 - Kohler Air Filter | Call For Details | |
| - | 100931 - Kohler Air Filter Pre-Cleaner | Call For Details | |
| 4 | 101218 - Kohler Muffler | Call For Details | |
| 5 | 643290 - Duct Mount | Call For Details | |
| 6 | 771027 - Lower Intake Duct Panel | Call For Details | |
| 7 | 722083 - Duct Mount Support Bracket | Call For Details | |
| 8 | 721222 - Duct Panel | Call For Details | |
| 9 | 643402 - Air Intake Grill | Add To Cart | |
| 10 | 643413 - Exhaust Housing | Call For Details | |
| 11 | 603813 - Fuel Tank Assembly with Draw Tube | Add To Cart | |
| 12 | 643144 - Fuel Tank Mounting Bracket | Add To Cart | |
| 13 | 141125 - Cap with Fuel Level | Add To Cart | |
| 14 | 101819 - Fuel Draw Tube | Add To Cart | |
| 15 | 280260 - Spring Hose Clamp | Add To Cart | |
| 16 | 821725 - Fuel Line Hose | Add To Cart | |
| - | 101002 - Kohler Fuel Filter | Call For Details | |
| 17 | 643352 - right 700 Fender | Call For Details | |
| - | 163214 - 718K right Trim Decal | Call For Details | |
| 18 | 693205 - left 700 Fender | Call For Details | |
| - | 163215 - 718K left Trim Decal | Call For Details | |
| 19 | 822635 - 700/900 Fender Edge Trim | Add To Cart | |
| 20 | 483921 - 20 x 10 x 8 Tan Wheel Turf Tire | Add To Cart | |
| - | 482471 - 20 x 10 x 8 Turf Tire | Call For Details | |
| - | 482478 - 21 x 11 x 8 Bar Tread Tire | Call For Details | |
| - | 483410 - 5-Bolt 8 x 6 Wheel | Add To Cart | |
| - | 483415 - 5-Bolt 8 x 9.125 Wheel | Add To Cart | |
| - | 483930 - 21 x 11 x 8 right Wheel Bar Tread Tire | Add To Cart | |
| - | 483931 - 21 x 11 x 8 left Wheel Bar Tread Tire | Add To Cart | |
| 21 | 422065 - 1 inch ID Square Plastic Plug | Add To Cart | |
| 22 | 603345 - Foot Rest | Call For Details | |
| 23 | 424015 - Rubber Bumper | Add To Cart | |
| 24 | 780658 - Foot Rest Pivot Rod | Call For Details | |
| 25 | 263500 - External Retainer | Add To Cart | |
| 26 | 604796 - PTO Switch Cover Assembly | Add To Cart | |
| 27 | 142250 - Mechanical Choke | Add To Cart | |
| 28 | 603821 - 718 Throttle Assembly | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| 29 | 422150 - Handle Grip | Add To Cart | |
| 30 | 603557 - 700 Brake Lever Assembly | Call For Details | |
| 31 | 730356 - Disc Brake Adjustable Rod | Call For Details | |
| 32 | 265537 - Clevis Yoke | Add To Cart | |
| 33 | 259741 - Shoulder Bolt | Add To Cart | |
| 34 | 260648 - Cotter Pin | Add To Cart | |
| 35 | 100802 - Kohler Oil Filter | Add To Cart | |
| 36 | 323933 - 34 lb. Counterweight | Add To Cart | |
| 37 | 729514 - 34 lb. Weight Cover | Call For Details | |
| 38 | 247305 - NOT AVAILABLE | Call For Details | |
| 39 | 604596 - Rear Axle Pivot Assembly | Add To Cart | |
| 40 | 604364 - Rear Fork Lock Nut Assembly | Add To Cart | |
| 41 | 282615 - Spacer | Add To Cart | |
| 42 | 483861 - 13 x 5 x 6 Wheel Tire with Bearing Spacer | Add To Cart | |
| - | 482350 - 13 x 5 x 6 Ribbed Tubeless Tire | Add To Cart | |
| - | 483301 - 6 x 3.25 Tan Wheel Tire with Bearing Spacer | Add To Cart | |
| 43 | 902475 - rear Wheel Bearing Spacer | Add To Cart | |
| 44 | 120050 - Ball Bearing | Add To Cart | |
| 45 | 902425 - Axle Spacer | Add To Cart | |
| 46 | 247725 - Carriage Bolt | Add To Cart | |
| 47 | 253970 - Lock Nut | Add To Cart | |
| 48 | 125855 - Seal | Add To Cart | |
| 49 | 123522 - Bearing Cup | Add To Cart | |
| 50 | 122523 - Tapered Bearing | Add To Cart | |
| 51 | 257091 - 14 GA Bushing Washer | Add To Cart | |
| 52 | 254502 - Nut | Add To Cart | |
| 53 | 260670 - Cotter Pin | Add To Cart | |
| 54 | 481432 - Dust Cap | Add To Cart | |
| 55 | 643504 - 718/718K right Steering Lever | Call For Details | |
| 56 | 643505 - 718/718K left Steering Lever | Call For Details | |
| 57 | 422160 - Handle Grip | Add To Cart | |
| 58 | 643658 - right Steering Lever Pivot | Call For Details | |
| 59 | 643659 - left Steering Lever Pivot | Call For Details | |
| 60 | 422580 - Nylon Bearing | Add To Cart | |
| 61 | 422560 - Nylon Bearing | Add To Cart | |
| 62 | 257067 - Washer | Add To Cart | |
| 63 | 257063 - Washer | Add To Cart | |
| 64 | 283381 - Compression Spring | Add To Cart | |
| 65 | 283324 - Compression Spring | Add To Cart | |
| 66 | 830355 - Slotted Flange Nut | Call For Details | |
| 67 | 253470 - Nut with Nylon Insert | Add To Cart | |
| 68 | 260652 - Cotter Pin | Add To Cart | |
| 69 | 603269 - 718K Decal Set | Add To Cart |
