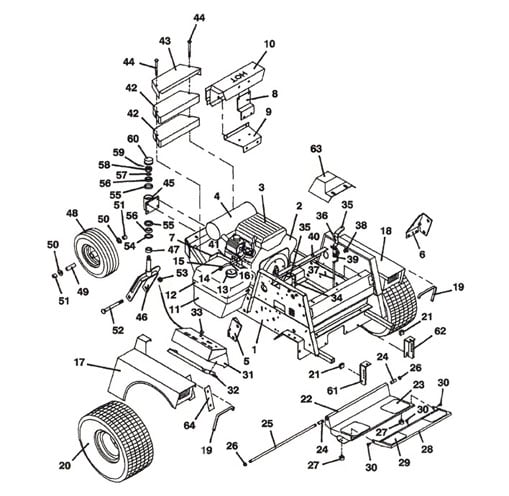

720K 20HP Kohler Tractor Assembly - 1994
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643378 - Tractor Frame | Call for Details | |
| 2 | 100161 - Engine - 20HP Kohler | Call for Details | |
| 3 | 100928 - Air Filter | Call for Details | |
| - | 100929 - Air Filter Pre Cleaner | Call for Details | |
| 4 | 101217 - Muffler | Call for Details | |
| - | 101041 - Exhaust Gasket - Muffler | $4.25 | Add To Cart |
| 5 | 726131 - Gusset - ROPS - Right | Call for Details | |
| 6 | 726132 - Gusset - ROPS - Left | Call for Details | |
| 7 | 721123 - Heat Shield | $25.80 | Add To Cart |
| 8 | 643117 - Bracket | $29.40 | Add To Cart |
| 9 | 729270 - Lower Muffler Bracket | $35.80 | Add To Cart |
| 10 | 722391 - Shield - Kohler Muffler | $80.27 | Add To Cart |
| - | 722309 - Inner Panel | $46.02 | Add To Cart |
| 11 | 603813 - Fuel Tank w/Draw Tube | $154.04 | Add To Cart |
| 12 | 643144 - Fuel Tank Mounting Bracket | $42.70 | Add To Cart |
| 13 | 141125 - Fuel Cap w/Level | $50.11 | Add To Cart |
| 14 | 101819 - Fuel Draw Tube | $4.50 | Add To Cart |
| 15 | 280260 - Clamp | $0.35 | Add To Cart |
| 16 | 821710 - Fuel Hose | $7.75 | Add To Cart |
| - | 101001 - Fuel Filter | Call for Details | |
| 17 | 643959 - Fender - Right w/Console | Call for Details | |
| 18 | 643963 - Fender - Left | Call for Details | |
| 19 | 822635 - Trim | $6.93 | Add To Cart |
| 20 | 483921 - Wheel & Tire - Turf - 20 x 10 x 8 | $245.41 | Add To Cart |
| - | 483410 - Wheel - 8 x 6 | $86.25 | Add To Cart |
| - | 482471 - Tire - Turf - 20 x 10 x 8 | Call for Details | |
| - | 483930 - Wheel & Tire - Bar Tread - Right - 21 x 11 x 8 | $375.00 | Add To Cart |
| - | 483931 - Wheel & Tire - Bar Tread - Left - 21 x 11 x 8 | $375.00 | Add To Cart |
| - | 483415 - Wheel - 8 x 9.125 | $131.96 | Add To Cart |
| - | 482480 - Tire - Bar Tread - 21 x 11 x 8 | Call for Details | |
| 21 | 422065 - Plug | $1.08 | Add To Cart |
| 22 | 603343 - Foot Platform Assembly | Call for Details | |
| 23 | 420905 - Tread | $3.13 | Add To Cart |
| 24 | 422615 - Nylon Bearing | $1.79 | Add To Cart |
| 25 | 780673 - Pivot Rod | Call for Details | |
| 26 | 253470 - Nut | $0.72 | Add To Cart |
| 27 | 424052 - Rubber Bumper | $5.78 | Add To Cart |
| 28 | 603301 - Extension - Foot Platform | $73.14 | Add To Cart |
| 29 | 420904 - Tread | $2.47 | Add To Cart |
| 30 | 247130 - Carriage Bolt | $0.82 | Add To Cart |
| 31 | 693101 - Console w/Decals | Call for Details | |
| 32 | 721136 - Filler Panel | $64.50 | Add To Cart |
| 33 | 142233 - Mechanical Choke | $30.42 | Add To Cart |
| 34 | 603821 - Throttle Assembly | $59.22 | Add To Cart |
| - | 323655 - Cable Control Assembly | $28.60 | Add To Cart |
| - | 722009 - Throttle Lever Stop | $6.02 | Add To Cart |
| 35 | 422150 - Handle Grip | $3.05 | Add To Cart |
| 36 | 729046 - Brake Lever | Call for Details | |
| - | 423705 - Spacer | $1.20 | Add To Cart |
| 37 | 730361 - Brake Linkage Rod | $36.14 | Add To Cart |
| 38 | 902280 - Spacer | $5.86 | Add To Cart |
| - | 243330 - Bolt | $0.51 | Add To Cart |
| - | 257040 - Washer | $2.60 | Add To Cart |
| 39 | 260648 - Cotter Pin | $0.12 | Add To Cart |
| 40 | 424015 - Rubber Bumper | $2.10 | Add To Cart |
| 41 | 100802 - Oil Filter | $11.97 | Add To Cart |
| 42 | 323933 - Counterweight - 34 lbs. | $380.77 | Add To Cart |
| 43 | 729514 - Cover Plate | Call for Details | |
| 44 | 247325 - Carriage Bolt | $2.14 | Add To Cart |
| 45 | 604596 - Pivot Housing Assembly | $91.40 | Add To Cart |
| 46 | 604364 - Fork & Nut Assembly | $128.50 | Add To Cart |
| 47 | 282615 - Spacer | $2.06 | Add To Cart |
| 48 | 483861 - Wheel & Tire Assembly w/Brgs & Spacer - 13 x 5 x 6 | $136.96 | Add To Cart |
| - | 482350 - Tire - 13 x 5 x 6 | $44.25 | Add To Cart |
| - | 483301 - Wheel w/Bearing & Spacer - 6 x 3.25 | $101.03 | Add To Cart |
| 49 | 902475 - Spacer | $14.59 | Add To Cart |
| 50 | 120050 - Bearing | $17.68 | Add To Cart |
| 51 | 902425 - Spacer | $7.75 | Add To Cart |
| 52 | 247725 - Carriage Bolt | $9.58 | Add To Cart |
| 53 | 253970 - Lock Nut | $10.10 | Add To Cart |
| 54 | 125855 - Seal | $3.05 | Add To Cart |
| 55 | 123522 - Bearing Cup | $4.21 | Add To Cart |
| 56 | 122522 - Bearing | $8.36 | Add To Cart |
| 57 | 257091 - Washer | $1.51 | Add To Cart |
| 58 | 254502 - Nut | $2.47 | Add To Cart |
| 59 | 260668 - Cotter Pin | $0.05 | Add To Cart |
| 60 | 481432 - Dust Cap | $5.94 | Add To Cart |
| 61 | 643138 - Attachment Mount - Right | $52.39 | Add To Cart |
| 62 | 643139 - Attachment Mount - Left | $52.39 | Add To Cart |
| 63 | 644746 - Shield | Call for Details | |
| 64 | 722062 - Cover Panel | $5.50 | Add To Cart |
| - | 603274 - Decal Set - 720K | $86.70 | Add To Cart |
