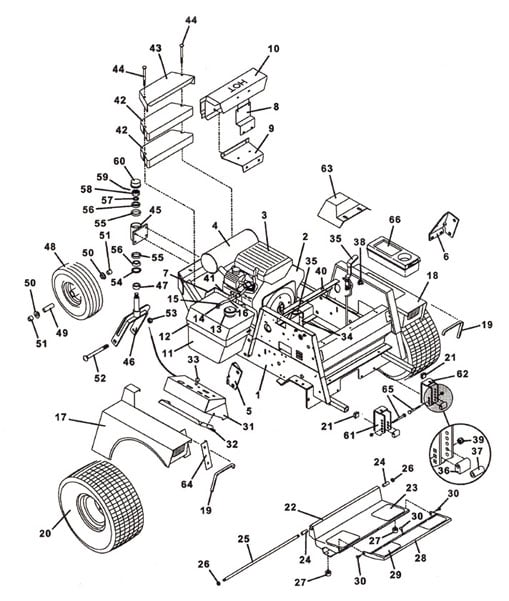

720K 20HP Kohler Tractor Assembly - 1995
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643378 - Tractor Frame | Call For Details | |
| 2 | 100142 - Engine - 20HP Kohler | Call For Details | |
| 3 | 100928 - Air Filter | Call For Details | |
| - | 100929 - Air Filter Pre Cleaner | Call For Details | |
| 4 | 101217 - Muffler | Call For Details | |
| - | 101041 - Exhaust Gasket - Muffler | Add To Cart | |
| 5 | 726131 - Gusset - ROPS - Right | Call For Details | |
| 6 | 726132 - Gusset - ROPS - Left | Call For Details | |
| 7 | 721123 - Heat Shield | Add To Cart | |
| 8 | 643117 - Bracket | Add To Cart | |
| 9 | 729270 - Lower Muffler Bracket | Add To Cart | |
| 10 | 722391 - Shield - Kohler Muffler | Add To Cart | |
| - | 722309 - Inner Panel | Add To Cart | |
| 11 | 603813 - Fuel Tank w/Draw Tube | Add To Cart | |
| 12 | 643144 - Fuel Tank Mounting Bracket | Add To Cart | |
| 13 | 141125 - Fuel Cap w/Level | Add To Cart | |
| 14 | 101819 - Fuel Draw Tube | Add To Cart | |
| 15 | 280260 - Clamp | Add To Cart | |
| 16 | 821710 - Fuel Hose | Add To Cart | |
| - | 101001 - Fuel Filter | Call For Details | |
| 17 | 693204 - Fender - Right | Call For Details | |
| 18 | 693205 - Fender - Left | Call For Details | |
| 19 | 822635 - Trim | Add To Cart | |
| 20 | 483921 - Wheel & Tire - Turf - 20 x 10 x 8 | Add To Cart | |
| - | 483410 - Wheel - 8 x 6 | Add To Cart | |
| - | 482472 - Tire - Turf - 20 x 10 x 8 | Add To Cart | |
| - | 483930 - Wheel & Tire - Bar Tread - Right - 21 x 11 x 8 | Add To Cart | |
| - | 483931 - Wheel & Tire - Bar Tread - Left - 21 x 11 x 8 | Add To Cart | |
| - | 483415 - Wheel - 8 x 9.125 | Add To Cart | |
| - | 482479 - Tire - Bar Tread - 21 x 11 x 8 | Call For Details | |
| 21 | 422065 - Plug | Add To Cart | |
| 22 | 603343 - Foot Platform Assembly | Call For Details | |
| 23 | 420905 - Tread | Add To Cart | |
| 24 | 422615 - Nylon Bearing | Add To Cart | |
| 25 | 780673 - Pivot Rod | Call For Details | |
| 26 | 253470 - Nut | Add To Cart | |
| 27 | 424052 - Rubber Bumper | Add To Cart | |
| 28 | 603301 - Extension - Foot Platform | Add To Cart | |
| 29 | 420904 - Tread | Add To Cart | |
| 30 | 247130 - Carriage Bolt | Add To Cart | |
| 31 | 693101 - Console w/Decals | Call For Details | |
| 32 | 721136 - Filler Panel | Add To Cart | |
| 33 | 142233 - Mechanical Choke | Add To Cart | |
| 34 | 603821 - Throttle Assembly | Add To Cart | |
| - | 323655 - Cable Control Assembly | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| 35 | 422150 - Handle Grip | Add To Cart | |
| 36 | 282575 - Deck Mount Bushing | Add To Cart | |
| 37 | 282576 - Deck Mount Bushing - Floating Option | Add To Cart | |
| 38 | 902280 - Spacer | Add To Cart | |
| - | 243330 - Bolt | Add To Cart | |
| - | 257040 - Washer | Add To Cart | |
| 39 | 253460 - Nut | Add To Cart | |
| 40 | 424015 - Rubber Bumper | Add To Cart | |
| 41 | 100802 - Oil Filter | Add To Cart | |
| 42 | 323933 - Counterweight - 34 lbs. | Add To Cart | |
| 43 | 729514 - Cover Plate | Call For Details | |
| 44 | 247325 - Carriage Bolt | Add To Cart | |
| 45 | 604596 - Pivot Housing Assembly | Add To Cart | |
| 46 | 604364 - Fork & Nut Assembly | Add To Cart | |
| 47 | 282615 - Spacer | Add To Cart | |
| 48 | 483861 - Wheel & Tire Assembly w/Brgs & Spacer - 13 x 5 x 6 | Add To Cart | |
| - | 482350 - Tire - 13 x 5 x 6 | Add To Cart | |
| - | 483301 - Wheel w/Bearing & Spacer - 6 x 3.25 | Add To Cart | |
| 49 | 902475 - Spacer | Add To Cart | |
| 50 | 120050 - Bearing | Add To Cart | |
| 51 | 902425 - Spacer | Add To Cart | |
| 52 | 247725 - Carriage Bolt | Add To Cart | |
| 53 | 253970 - Lock Nut | Add To Cart | |
| 54 | 125855 - Seal | Add To Cart | |
| 55 | 123522 - Bearing Cup | Add To Cart | |
| 56 | 122522 - Bearing | Add To Cart | |
| 57 | 257091 - Washer | Add To Cart | |
| 58 | 254502 - Nut | Add To Cart | |
| 59 | 260668 - Cotter Pin | Add To Cart | |
| 60 | 481432 - Dust Cap | Add To Cart | |
| 61 | 643092 - Deck Mount - Right | Add To Cart | |
| 62 | 643093 - Deck Mount - Left | Add To Cart | |
| 63 | 693782 - Shield | Add To Cart | |
| 64 | 722062 - Cover Panel | Add To Cart | |
| 65 | 247280 - Carriage Bolt | Add To Cart | |
| 66 | 422040 - Tool Box | Add To Cart | |
| - | 603274 - Decal Set - 720K | Add To Cart |
