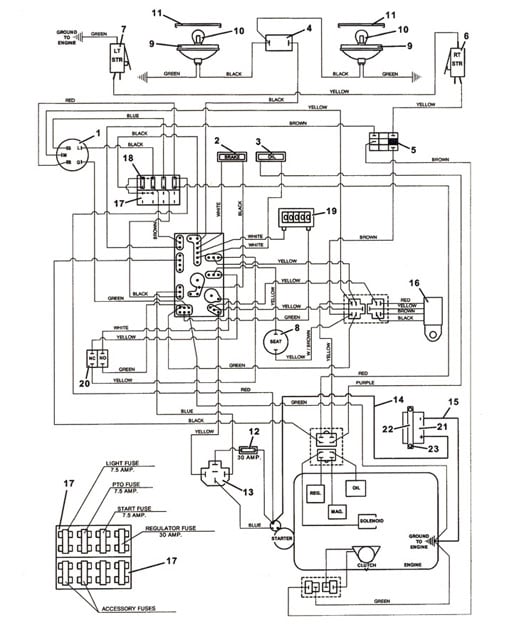

720K 20HP Kohler Wiring Diagram - 1995
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| - | 604953 - Wiring Assembly | Call For Details | |
| - | 161130 - Decal - Console | Add To Cart | |
| 1 | 183806 - Key Switch | Add To Cart | |
| - | 254498 - Nut | Add To Cart | |
| 2 | 182326 - Indicator Light - Brake | Add To Cart | |
| 3 | 182327 - Indicator Light - Oil | Add To Cart | |
| 4 | 184179 - Rocker Switch | Add To Cart | |
| 5 | 183925 - PTO Clutch Switch - Push/Pull | Add To Cart | |
| 6 | 183860 - Switch Lever | Add To Cart | |
| - | 720160 - Steering Switch Mount - Right | Add To Cart | |
| 7 | 183860 - Switch Lever | Add To Cart | |
| - | 720161 - Steering Switch Mount - Left | Add To Cart | |
| 8 | 183870 - Seat Switch | Add To Cart | |
| 9 | 182253 - Worklamp | Add To Cart | |
| 10 | 182005 - Light Bulb | Add To Cart | |
| 11 | 182251 - Bezel - Worklamp | Add To Cart | |
| 12 | 181735 - Fuse Holder | Add To Cart | |
| - | 181470 - Fuse - 30 | Add To Cart | |
| 13 | 184271 - Relay w/Mount | Add To Cart | |
| 14 | 180335 - Cable - 35 Inch Red | Add To Cart | |
| - | 425219 - Battery Terminal Boot | Add To Cart | |
| 15 | 180280 - Cable - 20 Inch Black | Add To Cart | |
| 16 | 200910 - Relay | Add To Cart | |
| 17 | 181722 - Fuse Block | Add To Cart | |
| 18 | 181470 - Fuse - 30 | Add To Cart | |
| - | 181460 - Fuse - 7.50 | Add To Cart | |
| 19 | 141551 - Hour Meter | Add To Cart | |
| 20 | 183894 - Brake Interlock Switch | Add To Cart | |
| 21 | 180125 - Battery | Add To Cart | |
| 22 | 822410 - Battery Hold Down Strap | Add To Cart | |
| 23 | 240115 - Hook Bolt | Add To Cart |
