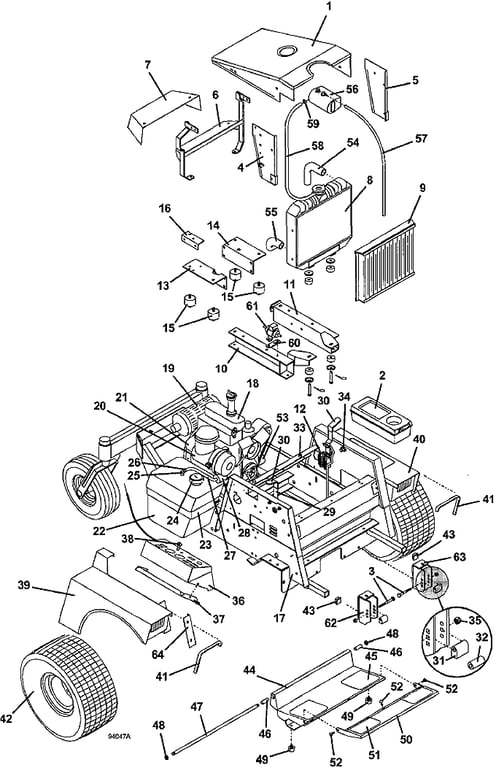

721 Tractor Assembly - 1995
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 693300 - 700 Hood with Decals | Add To Cart | |
| 2 | 422040 - Tool Box | Add To Cart | |
| 3 | 247280 - Special Carriage Bolt | Add To Cart | |
| 4 | 643799 - right Grille Support | Call For Details | |
| 5 | 693260 - Left Grille Support w/Decal | Call For Details | |
| 6 | 643797 - rear Hood Support | Add To Cart | |
| 7 | 643766 - Clutch Shield | Add To Cart | |
| 8 | 101605 - Kubota Radiator | Call For Details | |
| - | 101610 - Kubota Radiator | Add To Cart | |
| 9 | 693256 - 700 Radiator Grille with Decal | Add To Cart | |
| 10 | 643604 - Lower right Engine Mount | Add To Cart | |
| 11 | 643605 - Lower left Engine Mount | Add To Cart | |
| 12 | 185530 - 12v Voltage Regulator | Add To Cart | |
| 13 | 643292 - Upper right Engine Mount | Add To Cart | |
| 14 | 643291 - Upper left Engine Mount | Add To Cart | |
| 15 | 424078 - Vibration Isolator | Add To Cart | |
| 16 | 724091 - Coil Bracket | Add To Cart | |
| 17 | 643394 - 721/721D Tractor Frame | Call For Details | |
| 18 | 100170 - Kubota Gas Engine | Call For Details | |
| - | 100171 - Kubota Gas Engine | Call For Details | |
| 19 | 603590 - Muffler & Gasket Assembly | Add To Cart | |
| 20 | 100940 - Kubota Air Filter | Call For Details | |
| 21 | 424519 - Air Intake Hose | Add To Cart | |
| 22 | 603817 - Gasoline Fuel Tank Assembly (Brown) | Add To Cart | |
| 23 | 643144 - Fuel Tank Mounting Bracket | Add To Cart | |
| 24 | 141125 - Cap with Fuel Level | Add To Cart | |
| 25 | 101818 - Fuel Draw Tube | Add To Cart | |
| 26 | 280270 - Screw-type Hose Clamp | Add To Cart | |
| 27 | 821713 - Fuel Line Hose | Add To Cart | |
| 28 | 101005 - Kubota Fuel Pre-Filter | Call For Details | |
| 29 | 604823 - 721/725/725G2 Throttle Assembly | Add To Cart | |
| - | 604820 - Throttle Cable Replacement Kit for Gas Engine | Add To Cart | |
| 30 | 422150 - Handle Grip | Add To Cart | |
| 31 | 282575 - Deck Mount Bushing | Add To Cart | |
| 32 | 282576 - Floating Deck Mount Bushing | Add To Cart | |
| 33 | 424015 - Rubber Bumper | Add To Cart | |
| 34 | 902280 - Spacer | Add To Cart | |
| - | 243330 - Hex Bolt | Add To Cart | |
| - | 257040 - Washer | Add To Cart | |
| 35 | 253460 - Nylon Insert Nut | Add To Cart | |
| 36 | 693103 - Console w/Decal for Liquid-Cooled Engines | Call For Details | |
| 37 | 721136 - Side Console Filler Panel | Add To Cart | |
| 38 | 142218 - Mechanical Choke | Add To Cart | |
| 39 | 693204 - 700S right Fender with Decals | Call For Details | |
| - | 163208 - 721 Right Trim Decal | Call For Details | |
| - | 163216 - 725 Right Trim Decal | Add To Cart | |
| 40 | 693205 - 700S left Fender with Decals | Call For Details | |
| - | 163209 - 721 Left Trim Decal | Call For Details | |
| - | 163217 - 725 Left Trim Decal | Add To Cart | |
| 41 | 822635 - 700/900 Fender Edge Trim | Add To Cart | |
| 42 | 483921 - 20 x 10 x 8 Tan Wheel & Turf Tire | Add To Cart | |
| - | 482471 - 20 x 10 x 8 Turf Tire | Call For Details | |
| - | 482478 - 21 x 11 x 8 Bar Tread Tire | Call For Details | |
| - | 483410 - 5-Bolt 8 x 6 Wheel | Add To Cart | |
| - | 483415 - 5-Bolt 8 x 9.125 Wheel | Add To Cart | |
| - | 483930 - 21 x 11 x 8 right Wheel & Bar Tread Tire | Add To Cart | |
| - | 483931 - 21 x 11 x 8 left Wheel & Bar Tread Tire | Add To Cart | |
| 43 | 422065 - 1 inch ID Square Plastic Plug | Add To Cart | |
| 44 | 603343 - Foot Platform Assembly | Call For Details | |
| 45 | 420905 - Foot Rest Tread | Add To Cart | |
| 46 | 422615 - Nylon Bearing | Add To Cart | |
| 47 | 780673 - 700 Foot Platform Pivot Rod | Call For Details | |
| 48 | 253470 - Nylon Insert Nut | Add To Cart | |
| 49 | 424052 - Rubber Bumper | Add To Cart | |
| 50 | 603301 - 700 Foot Platform Extension | Add To Cart | |
| 51 | 420904 - Foot Rest Tread Extension | Add To Cart | |
| 52 | 247130 - Carriage Bolt | Add To Cart | |
| 53 | 100800 - Kubota Oil Filter | Add To Cart | |
| 54 | 101052 - Upper Radiator Hose | Add To Cart | |
| - | 101054 - Upper Radiator Hose | Call For Details | |
| 55 | 101053 - Lower Radiator Hose | Call For Details | |
| - | 101055 - Lower Radiator Hose | Call For Details | |
| 56 | 422012 - Expansion Tank | Add To Cart | |
| 57 | 821748 - Clear Vent Hose | Add To Cart | |
| 58 | 821749 - Hose | Add To Cart | |
| 59 | 280260 - Spring Hose Clamp | Add To Cart | |
| 60 | 782529 - Fuel Pump Mount Plate | Add To Cart | |
| 61 | 101510 - Electric Fuel Pump | Call For Details | |
| 62 | 643092 - 700/900 right Quarterdeck Deck Mount | Add To Cart | |
| 63 | 643093 - 700/900 left Quarterdeck Deck Mount | Add To Cart | |
| 64 | 722062 - right Fender Cover Panel | Add To Cart | |
| 65 | 603271 - 721 Decal Set | Call For Details | |
| 66 | 603275 - 725 Decal Set | Add To Cart | |
| - | 163216 - 725 Right Trim Decal | Add To Cart |
