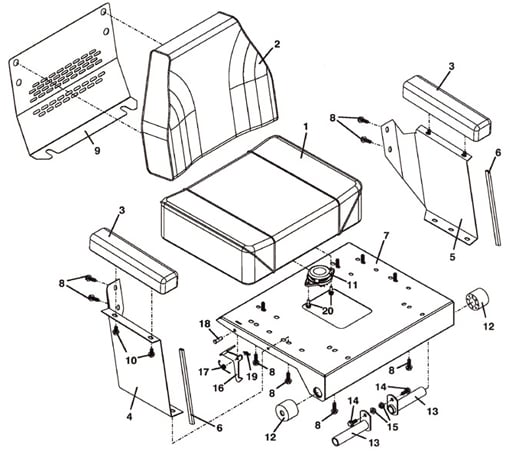

721D 21HP Kubota Diesel Seat Assembly - 2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| - | 604741 - Seat Assembly (Includes 1-10) | Call For Details | |
| 1 | 321521 - Seat Cushion - Formed 14x18 | Add To Cart | |
| 2 | 321520 - Back Cushion - 14x16 | Add To Cart | |
| 3 | 321522 - Arm Rest | Add To Cart | |
| 4 | 724310 - Side Member - Right | Add To Cart | |
| 5 | 724311 - Side Member - Left | Add To Cart | |
| 6 | 822630 - Seat Edge Trim | Add To Cart | |
| 7 | 643912 - Seat Bottom | Add To Cart | |
| 8 | 253193 - Whiz Bolt | Add To Cart | |
| 9 | 722388 - Seat Panel | Add To Cart | |
| 10 | 253191 - Whiz Bolt | Add To Cart | |
| 11 | 183870 - Seat Switch | Add To Cart | |
| 12 | 424095 - Seat Isolator | Add To Cart | |
| 13 | 644618 - Seat Hinge Pin | Add To Cart | |
| 14 | 253192 - Whiz Bolt | Add To Cart | |
| 15 | 253035 - Whiz Nut | Add To Cart | |
| 16 | 724112 - Seat Latch | Add To Cart | |
| 17 | 284408 - Spring - Torsion | Add To Cart | |
| 18 | 261284 - Clevis Pin | Add To Cart | |
| 19 | 260606 - Cotter Ring | Add To Cart | |
| 20 | 253175 - Whiz Bolt | Add To Cart |
