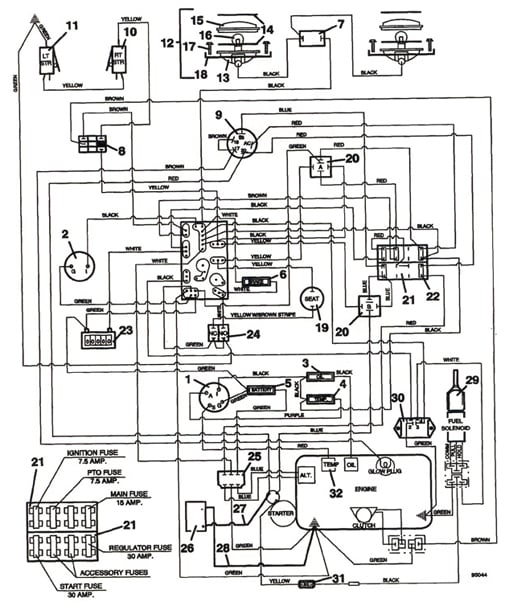

721D 21HP Kubota Diesel Wiring Diagram - 1994
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| - | 604956 - Wiring Assembly | Call For Details | |
| 1 | 141160 - Temperature Gauge | Add To Cart | |
| 2 | 141200 - Voltmeter Gauge | Add To Cart | |
| 3 | 182327 - Indicator Light - Oil | Add To Cart | |
| 4 | 182328 - Indicator Light - Temp | Add To Cart | |
| 5 | 182325 - Indicator Light - Battery | Add To Cart | |
| 6 | 182326 - Indicator Light - Brake | Add To Cart | |
| 7 | 184179 - Rocker Switch | Add To Cart | |
| 8 | 183925 - PTO Clutch Switch - Push/Pull | Add To Cart | |
| 9 | 183827 - Key Switch | Add To Cart | |
| 10 | 183860 - Switch Lever | Add To Cart | |
| - | 720160 - Steering Switch Mount - Right | Add To Cart | |
| 11 | 183860 - Switch Lever | Add To Cart | |
| - | 720161 - Steering Switch Mount - Left | Add To Cart | |
| 12 | 603400 - Headlight Assembly | Add To Cart | |
| 13 | 182350 - Lamp Housing | Call For Details | |
| 14 | 420550 - Light Gasket | Add To Cart | |
| 15 | 182400 - Lamp Lens | Call For Details | |
| 16 | 182000 - Light Bulb | Add To Cart | |
| 17 | 252057 - Screw | Add To Cart | |
| 18 | 720163 - Clamp | Add To Cart | |
| 19 | 183870 - Seat Switch | Add To Cart | |
| 20 | 184272 - Relay | Add To Cart | |
| 21 | 181722 - Fuse Block | Add To Cart | |
| 22 | 181470 - Fuse - 30 | Add To Cart | |
| - | 181465 - Fuse - 15 | Add To Cart | |
| - | 181460 - Fuse - 7.50 | Add To Cart | |
| 23 | 141151 - Hour Meter | Add To Cart | |
| 24 | 183894 - Brake Interlock Switch | Add To Cart | |
| 25 | 185530 - Voltage Regulator | Add To Cart | |
| 26 | - - Battery - 12 Volt | Call For Details | |
| - | 643135 - Battery Box | Add To Cart | |
| - | 643241 - Battery Box Cover | Add To Cart | |
| - | 720604 - Battery Clamp | Add To Cart | |
| 27 | 180310 - Battery Cable - 11' | Add To Cart | |
| - | 425219 - Battery Terminal Boot | Add To Cart | |
| 28 | 180276 - Battery Cable - 16' | Add To Cart | |
| 29 | 603350 - Fuel Solenoid Assembly | Add To Cart | |
| 30 | 184220 - Interlock Switch | Add To Cart | |
| 31 | 181735 - Fuse Holder | Add To Cart | |
| - | 181470 - Fuse - 30 | Add To Cart | |
| 32 | 141222 - Temperature Sender | Add To Cart |
