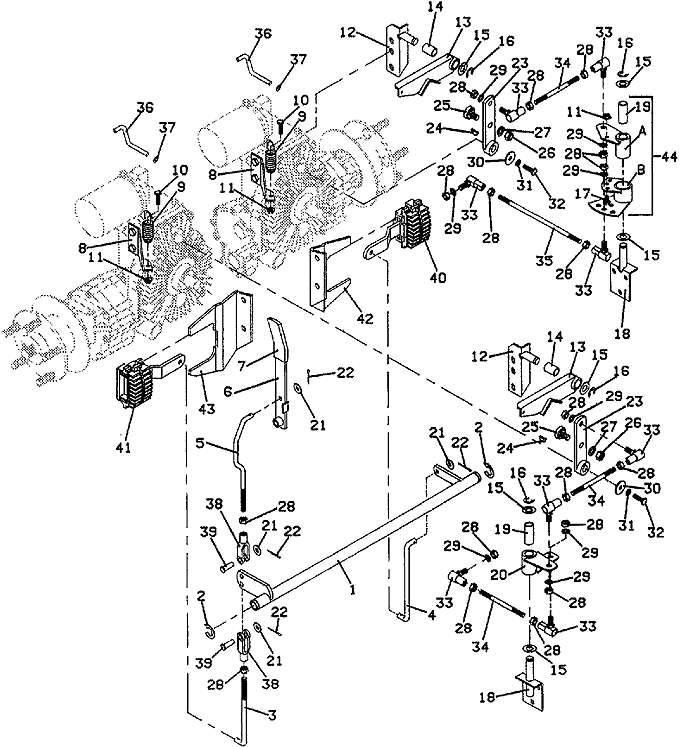

721D Drive Linkage Assembly - 1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643280 - Disc Brake Pivot Tube | Call For Details | |
| 2 | 263529 - External Retainer | Add To Cart | |
| 3 | 730289 - Steering Linkage Rod | Add To Cart | |
| 4 | 730355 - Lower Brake Disc Rod - Left | Call For Details | |
| 5 | 730356 - Adjustable Brake Disc Rod | Call For Details | |
| 6 | 603557 - Brake Lever Assembly | Call For Details | |
| 7 | 422150 - Handle Grip | Add To Cart | |
| 8 | 729072 - Bracket - Neutral Return Spring | Add To Cart | |
| 9 | 283823 - Extension Spring | Add To Cart | |
| 10 | 243030 - Bolt | Add To Cart | |
| 11 | 253025 - Nut | Add To Cart | |
| 12 | 643603 - Mount | Add To Cart | |
| 13 | 603084 - Neutral Return Arm w/Bearing | Add To Cart | |
| 14 | 422560 - Nylon Bearing | Add To Cart | |
| 15 | 257063 - Washer | Add To Cart | |
| 16 | 263500 - External Retainer | Add To Cart | |
| 17 | 253173 - Bolt | Add To Cart | |
| 18 | 643627 - Pivot | Add To Cart | |
| 19 | 422585 - Nylon Bearing | Add To Cart | |
| 20 | 603567 - Pivot Linkage w/Bearing | Add To Cart | |
| 21 | 257030 - Washer | Add To Cart | |
| 22 | 260624 - Cotter Ring | Add To Cart | |
| 23 | 643057 - Arm | Call For Details | |
| 24 | 281823 - Woodruff Key | Add To Cart | |
| 25 | 603726 - Roller Assembly - Eccentric | Add To Cart | |
| 26 | 254450 - Nut | Add To Cart | |
| 27 | 257412 - Lock Washer | Add To Cart | |
| 28 | 254441 - Nut | Add To Cart | |
| 29 | 257402 - Lock Washer | Add To Cart | |
| 30 | 774012 - Washer | Add To Cart | |
| 31 | 257392 - Lock Washer | Add To Cart | |
| 32 | 243025 - Bolt | Call For Details | |
| 33 | 265615 - Ball Joint | Add To Cart | |
| 34 | 780160 - Rod | Add To Cart | |
| 35 | 780165 - Rod | Add To Cart | |
| 36 | 730088 - Dump Valve Lever | Add To Cart | |
| 37 | 262934 - Push On Retainer | Add To Cart | |
| 38 | 265537 - Clevis Yoke | Add To Cart | |
| 39 | 261284 - Clevis Pin | Add To Cart | |
| 40 | 481120 - Brake Disc - Right | Call For Details | |
| 41 | 481121 - Brake Disc - Left | Add To Cart | |
| 42 | 725205 - Brake Disc Mount - Right | Call For Details | |
| 43 | 725206 - Brake Disc Mount - Left | Add To Cart | |
| 44 | 603567 - Linkage Pivot w/Bearing | Add To Cart |
