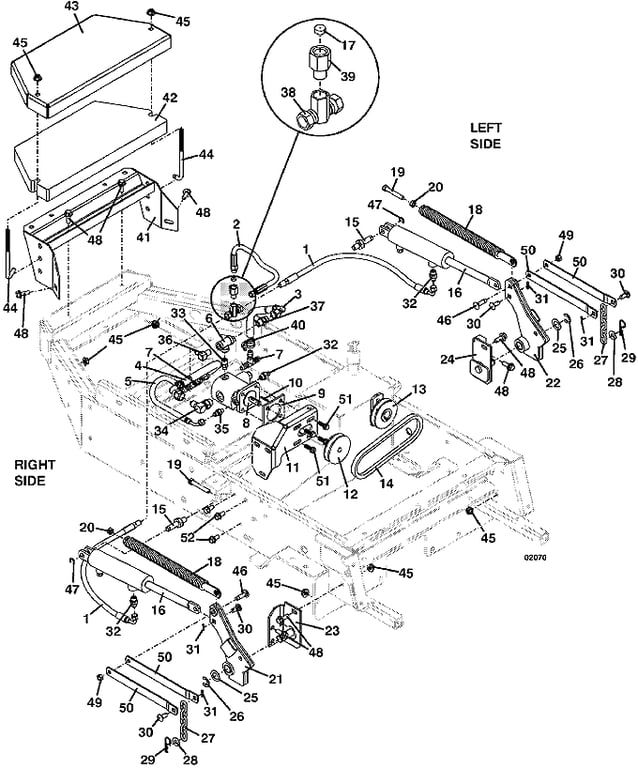

721D Hydraulic Lift Assembly (optional) - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 424306 - Hose Assembly | Add To Cart | |
| 2 | 424300 - Hose Assembly | Add To Cart | |
| 3 | 424331 - Hose Assembly | Add To Cart | |
| 4 | 424332 - Hose Assembly | Add To Cart | |
| 5 | 424302 - Hose Assembly | Add To Cart | |
| 6 | 366115 - Reducer Tee | Add To Cart | |
| 7 | 363850 - Nylon Fitting | Add To Cart | |
| 8 | 290072 - Clockwise Hydraulic Pump with Solenoid Valve | Add To Cart | |
| - | 144950 - Hydraulic Valve Solenoid | Add To Cart | |
| 9 | 775049 - Hydraulic Pump Spacer | Call For Details | |
| 10 | 281540 - Square Key | Add To Cart | |
| 11 | 643278 - Hydraulic Pump Mount | Call For Details | |
| 12 | 831436 - Hydraulic Pump Sheave | Add To Cart | |
| 13 | 824551 - Coupling Hub with Sheave | Add To Cart | |
| 14 | 381883 - Belt | Add To Cart | |
| 15 | 887119 - Cylinder Mount Pin with Groove | Add To Cart | |
| 16 | 290021 - Hydraulic Cylinder | Add To Cart | |
| - | 290096 - Hydraulic Lift Cylinder Head Seal Kit | Add To Cart | |
| 17 | 780507 - Flow Restrictor | Add To Cart | |
| 18 | 604762 - Spring Plug Nut Assembly | Call For Details | |
| 19 | 243395 - Hex Bolt | Add To Cart | |
| 20 | 254450 - Nut | Add To Cart | |
| 21 | 603701 - right Rocker without Extension | Add To Cart | |
| - | 121766 - Oilite Bearing | Add To Cart | |
| 22 | 603702 - right Rocker without Extension | Add To Cart | |
| - | 121766 - Oilite Bearing | Add To Cart | |
| 23 | 644545 - right Lift Pivot | Add To Cart | |
| 24 | 644546 - left Lift Pivot | Call For Details | |
| 25 | 257092 - 18 Ga Bushing Washer | Add To Cart | |
| 26 | 263529 - External Retainer | Add To Cart | |
| 27 | 820320 - Lift Chain | Add To Cart | |
| 28 | 257040 - Washer | Add To Cart | |
| 29 | 260523 - Hair Pin | Add To Cart | |
| 30 | 261339 - Clevis Pin | Add To Cart | |
| 31 | 260648 - Cotter Pin | Add To Cart | |
| 32 | 360052 - O-Ring Adapter | Add To Cart | |
| 33 | 360040 - O-Ring Adapter | Call For Details | |
| 34 | 360060 - O-Ring Adapter | Call For Details | |
| 35 | 360050 - O-Ring Adapter | Call For Details | |
| 36 | 360025 - Flare Adapter | Call For Details | |
| 37 | 360015 - Flare Adapter | Call For Details | |
| 38 | 360005 - Swivel Tee Adapter | Add To Cart | |
| 39 | 360045 - O-Ring Adapter | Add To Cart | |
| 40 | 280278 - Plastic Snap Hose Clamp | Add To Cart | |
| 41 | 643915 - Weight Mount | Add To Cart | |
| 42 | 503218 - 50 lb. Counterweight | Add To Cart | |
| 43 | 729691 - 50 lb. Weight Cover | Add To Cart | |
| 44 | 240151 - Hook Bolt | Add To Cart | |
| 45 | 253043 - Whiz Nut | Add To Cart | |
| 46 | 247254 - Carriage Bolt | Add To Cart | |
| 47 | 263500 - External Retainer | Add To Cart | |
| 48 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 49 | 253890 - Lock Nut | Add To Cart | |
| 50 | 732410 - 600 with SL Deck Lift Strap | Add To Cart | |
| 51 | 253193 - Hex Flange Whiz Bolt | Add To Cart | |
| 52 | 253202 - Whiz Bolt | Add To Cart |
