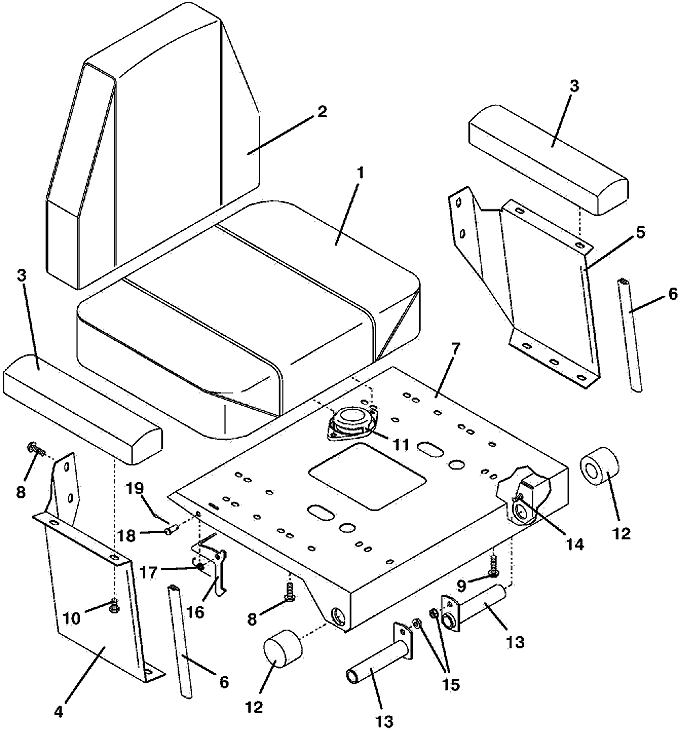

721D2 Seat Assembly - 2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321521 - Formed Cordura Seat Cushion | Add To Cart | |
| 2 | 321520 - Cordura Back Cushion | Add To Cart | |
| 3 | 321522 - Cordura Seat Armrest | Add To Cart | |
| 4 | 724310 - Right Side Seat Member | Add To Cart | |
| 5 | 724311 - Left Side Seat Member | Add To Cart | |
| 6 | 822630 - Seat Edge Trim | Add To Cart | |
| 7 | 643912 - Seat ISO (Platform) W/A | Add To Cart | |
| 8 | 253193 - Hex Flange Whiz Bolt | Add To Cart | |
| 9 | 253194 - Hex Whiz Bolt | Add To Cart | |
| 10 | 253191 - Hex Flange Whiz Bolt | Add To Cart | |
| 11 | 183870 - Seat Switch | Add To Cart | |
| 12 | 424095 - Seat Isolator | Add To Cart | |
| 13 | 644618 - Seat Hinge Pin | Add To Cart | |
| 14 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 15 | 253035 - Whiz Nut | Add To Cart | |
| 16 | 724112 - Seat Latch | Add To Cart | |
| 17 | 284408 - Torsion Spring | Add To Cart | |
| 18 | 261280 - Clevis Pin | Add To Cart | |
| 19 | 260606 - Cotter Ring | Add To Cart | |
| 20 | 604741 - 700 Cordura Seat Assembly with Logo | Call For Details |
