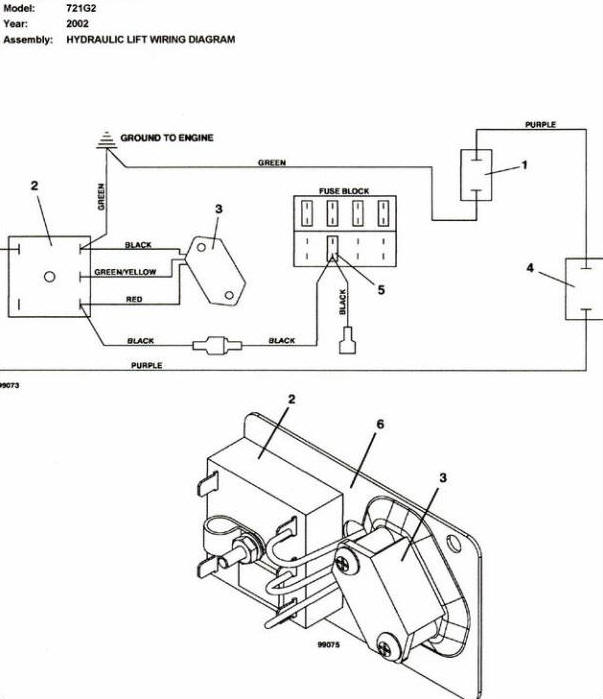

721G2 Hydraulic Lift Wiring Diagram - 2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 144950 - Valve Solenoid Hydraulic | Add To Cart | |
| 2 | 143374 - Delay Timer | Call For Details | |
| 3 | 183700 - Tilt Switch Assembly | Call For Details | |
| 4 | 183940 - Switch Sealed Dome | Add To Cart | |
| 5 | 181460 - Fuse Auto ATC - 7.50 | Add To Cart | |
| 6 | 722080 - Mount - Tilt Switch Magnetic | Call For Details |
