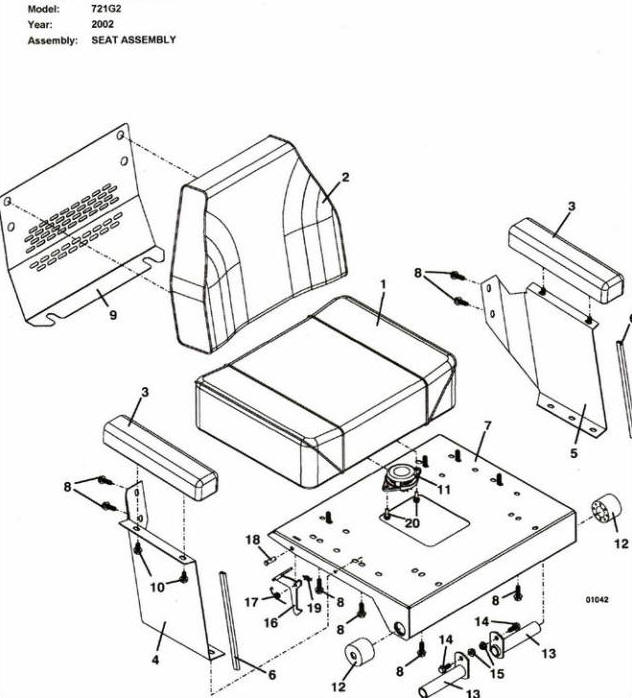

721G2 Seat Assembly - 2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321521 - Seat Cushioned Formed - Cord. | Add To Cart | |
| 2 | 321520 - Back Cushion - Cord. | Add To Cart | |
| 3 | 321522 - Seat Armrest - Cord. | Add To Cart | |
| 4 | 724310 - Member - Side Seat RT | Add To Cart | |
| 5 | 724311 - Member - Side Seat LT | Add To Cart | |
| 6 | 822630 - Trim - Seat Edge | Add To Cart | |
| 7 | 643912 - Seat ISO w/a | Add To Cart | |
| 8 | 253193 - Bolt Whiz Hex Flange .312-18 x 1 | Add To Cart | |
| 9 | 722388 - Back Panel | Add To Cart | |
| 10 | 253191 - Bolt Whiz Hex Flange .312 | Add To Cart | |
| 11 | 183870 - Switch Seat | Add To Cart | |
| 12 | 424095 - Isolator Seat | Add To Cart | |
| 13 | 644618 - Pin - Seat Hinge | Add To Cart | |
| 14 | 253192 - Bolt Whiz Hex Flange .312-18 x .75 | Add To Cart | |
| 15 | 253035 - Nut Whiz | Add To Cart | |
| 16 | 724112 - Latch - Seat | Add To Cart | |
| 17 | 284408 - Spring Torsion | Add To Cart | |
| 18 | 261284 - Clevis Pin .312 x 1 | Add To Cart | |
| 19 | 260606 - Ring Cotter | Add To Cart | |
| 20 | 253175 - Bolt whiz Hex .25-20 x .75 | Add To Cart | |
| 21 | 604741 - Seat Assy - 700 Cord. w/Logo | Call For Details |
