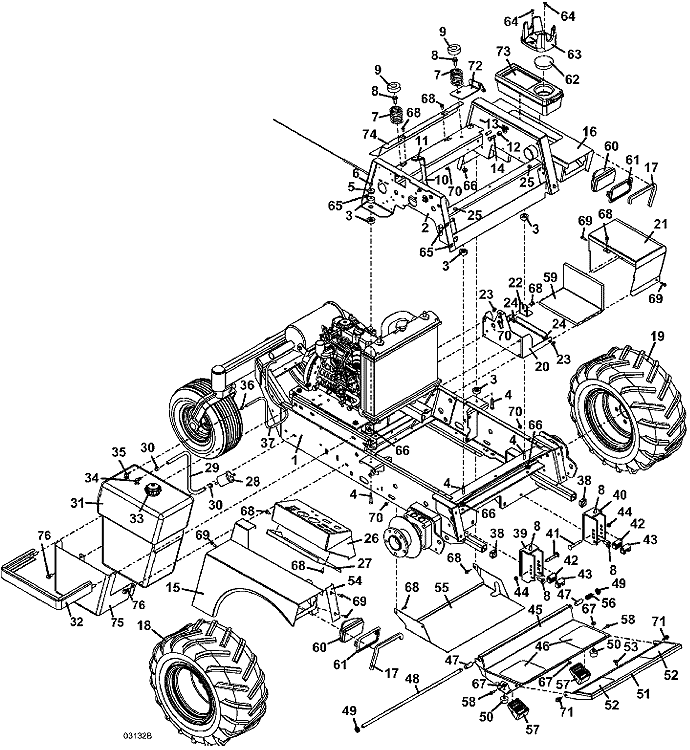

722D2 Tractor Assembly - 2006
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644297 - Lower Frame 722D | Call For Details | |
| 2 | 643872 - G2 2005 Upper Frame | Call For Details | |
| 3 | 257037 - Step Bushing | Add To Cart | |
| 4 | 243220 - Hex Bolt | Add To Cart | |
| 5 | 774020 - Washer | Add To Cart | |
| 6 | 253450 - Nylon Insert Nut | Add To Cart | |
| 7 | 283516 - Compression Spring | Add To Cart | |
| 8 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 9 | 422127 - Seat Spring Cap | Add To Cart | |
| 10 | 603858 - Throttle Assembly | Add To Cart | |
| - | 323656 - Throttle Cable Assembly | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| - | 722736 - Heavy Duty Throttle Stop | Add To Cart | |
| 11 | 422150 - Handle Grip | Add To Cart | |
| 12 | 902280 - Spacer | Add To Cart | |
| 13 | 257040 - Washer | Add To Cart | |
| 14 | 243335 - Hex Bolt | Add To Cart | |
| 15 | 693210 - Fender w/Decal 700/900S right | Add To Cart | |
| - | 163462 - 722D 06 Trim Decal -right | Call For Details | |
| 16 | 693211 - Fender w/Decal 700/900S left | Add To Cart | |
| - | 163463 - 722D 06 Trim Decal -left | Call For Details | |
| 17 | 822635 - Fender Edge Trim - 300/700/900 | Add To Cart | |
| 18 | 483942 - Wheel & Bar Tread Tire, 10' - right | Add To Cart | |
| - | 483420 - 5 Bolt Wheel Only, 10' | Add To Cart | |
| - | 482483 - Bar Tread Tire Only, 10' | Add To Cart | |
| - | 483946 - Wheel & Turf Tire, 10' | Add To Cart | |
| - | 482473 - Turf Tire Only, 10' | Add To Cart | |
| 19 | 483943 - Wheel & Bar Tread Tire, 10' - left | Add To Cart | |
| - | 483420 - 5 Bolt Wheel Only, 10' | Add To Cart | |
| - | 482483 - Bar Tread Tire Only, 10' | Add To Cart | |
| - | 483946 - Wheel & Turf Tire, 10' | Add To Cart | |
| - | 482473 - Turf Tire Only, 10' | Add To Cart | |
| 20 | 644163 - Battery Box w/o Draw Latch | Add To Cart | |
| 21 | 644478 - Battery Box Lid w/o Draw Latch | Add To Cart | |
| 22 | 754135 - Battery Hold Down Bracket | Add To Cart | |
| 23 | 257020 - Washer | Add To Cart | |
| 24 | 253440 - Nylon Insert Nut | Add To Cart | |
| 25 | 424015 - Rubber Bumper | Add To Cart | |
| 26 | 693104 - Console w/Decal for Liquid-Cooled Diesel | Add To Cart | |
| 27 | 721152 - Fill Panel - 96 Console | Add To Cart | |
| 28 | 101005 - Kubota Fuel Prefilter | Call For Details | |
| 29 | 821716 - 928D Fuel Line Hose | Add To Cart | |
| 30 | 280261 - Spring Hose Clamp | Add To Cart | |
| 31 | 604812 - Diesel Fuel Tank Assembly | Add To Cart | |
| 32 | 644826 - Fuel Tank Mounting Bracket | Add To Cart | |
| 33 | 141130 - Cap w/Fuel Level | Add To Cart | |
| 34 | 101837 - Fuel Tube | Add To Cart | |
| 35 | 101835 - Fuel Tube | Add To Cart | |
| 36 | 280257 - Spring Hose Clamp | Add To Cart | |
| 37 | 821741 - Fuel Return Hose - 300S | Add To Cart | |
| 38 | 422065 - Square Plastic Plug | Add To Cart | |
| 39 | 643092 - QD 700/900 Deck Mount - right | Add To Cart | |
| 40 | 643093 - QD 700/900 Deck Mount - left | Add To Cart | |
| 41 | 247280 - Special Carriage Bolt | Add To Cart | |
| 42 | 282575 - Deck Mount Bushing | Add To Cart | |
| 43 | 282576 - Floating Deck Mount Bushing | Add To Cart | |
| 44 | 253460 - Nylon Insert Nut | Add To Cart | |
| 45 | 604346 - Adjustable Foot Platform Assembly - 700/900 | Add To Cart | |
| 46 | 420905 - Foot Rest Tread | Add To Cart | |
| 47 | 422615 - Nylon Bearing | Add To Cart | |
| 48 | 780673 - Foot Platform Pivot Rod - 700 | Call For Details | |
| 49 | 253470 - Nylon Insert Nut | Add To Cart | |
| 50 | 424052 - Rubber Bumper | Add To Cart | |
| 51 | 603301 - Foot Platform Extension - 700 | Add To Cart | |
| 52 | 420904 - Foot Rest Extension Tread | Add To Cart | |
| 53 | 247130 - Carriage Bolt | Add To Cart | |
| 54 | 722062 - Fender Cover Panel - right | Add To Cart | |
| 55 | 721383 - Trash Shield - G2 | Add To Cart | |
| 56 | 283312 - Compression Spring | Add To Cart | |
| 57 | 424100 - Footrest Isolator Block | Add To Cart | |
| 58 | 243026 - Hex Bolt | Add To Cart | |
| 59 | 427278 - Battery Tray Pad | Add To Cart | |
| 60 | 182253 - Flood Worklamp | Add To Cart | |
| 61 | 182251 - Snap Mount Worklamp Bezel | Add To Cart | |
| 62 | 422066 - Cup Hole Plug | Add To Cart | |
| 63 | 150225 - Cup Holder | Add To Cart | |
| 64 | 259030 - Cap Screw | Add To Cart | |
| - | 254436 - Nut | Add To Cart | |
| 65 | 254431 - Speed Nut | Add To Cart | |
| 66 | 253043 - Whiz Nut | Add To Cart | |
| 67 | 253035 - Whiz Nut | Add To Cart | |
| 68 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 69 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 70 | 253025 - Whiz Nut | Add To Cart | |
| 71 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 72 | 729230 - Brake Pin Reinforcement | Call For Details | |
| 73 | 422040 - Tool Box | Add To Cart | |
| 74 | 722767 - I-Coupler Shield | Call For Details | |
| 75 | 723339 - 8-Gallon Tank Shield | Add To Cart | |
| 76 | 253200 - Whiz Bolt | Add To Cart | |
| 77 | 605307 - Decal Set - 722D2 | Add To Cart |
