725
Year Model:1990

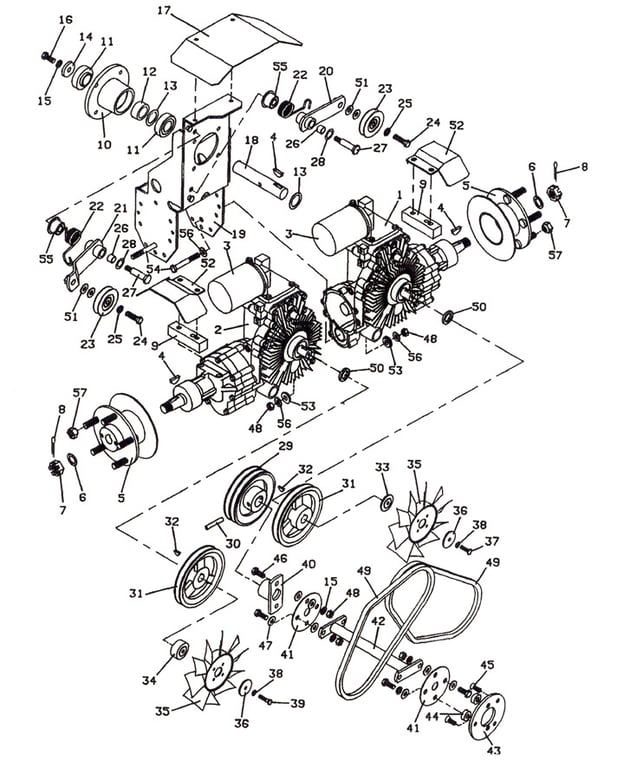

Drive Assembly
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603845 - Hydrostatic Transmission - Right | Call For Details | |
| 2 | 603844 - Hydrostatic Transmission - Left | Call For Details | |
| 3 | 100850 - Hydro Oil Filter | Add To Cart | |
| 4 | 281845 - Woodruff Key | Add To Cart | |
| 5 | 603419 - Hub | Add To Cart | |
| 6 | 257091 - Washer | Add To Cart | |
| 7 | 253500 - Nut w/Nylon Insert | Add To Cart | |
| 8 | 260652 - Cotter Pin | Add To Cart | |
| 9 | 901760 - Spacer | Call For Details | |
| 10 | 320522 - Spindle Housing | Add To Cart | |
| 11 | 120080 - Bearing | Add To Cart | |
| 12 | 282630 - Spacer | Add To Cart | |
| 13 | 257106 - Washer | Add To Cart | |
| 14 | 883801 - Washer Retainer | Add To Cart | |
| 15 | 257412 - Lock Washer | Add To Cart | |
| 16 | 243331 - Bolt | Add To Cart | |
| 17 | 722203 - Shield | Add To Cart | |
| 18 | 882840 - Shaft | Add To Cart | |
| 19 | 643615 - Mount - Center | Add To Cart | |
| 20 | 603066 - Lower Idler Arm Assembly w/Spring | Add To Cart | |
| 21 | 603065 - Upper Idler Arm Assembly w/Spring | Add To Cart | |
| 22 | 284425 - Torsion Spring | Add To Cart | |
| 23 | 393312 - Idler | Add To Cart | |
| 24 | 243340 - Bolt | Add To Cart | |
| 25 | 257412 - Lock Washer | Add To Cart | |
| 26 | 422558 - Nylon Bearing | Add To Cart | |
| 27 | 259745 - Shoulder Bolt | Add To Cart | |
| 28 | 282350 - Steel Shim | Add To Cart | |
| 29 | 415630 - Sheave | Add To Cart | |
| 30 | 261061 - Roll Pin | Add To Cart | |
| 31 | 415560 - Sheave | Add To Cart | |
| 32 | 281829 - Woodruff Key | Add To Cart | |
| 33 | 423725 - Fan Spacer - Right | Add To Cart | |
| 34 | 423726 - Fan Spacer - Left | Add To Cart | |
| 35 | 320856 - Nylon Fan CCW | Add To Cart | |
| 36 | 774023 - Washer | Add To Cart | |
| 37 | 243030 - Bolt | Add To Cart | |
| 38 | 257392 - Lock Washer | Add To Cart | |
| 39 | 243038 - Bolt | Add To Cart | |
| 40 | 824547 - Hub | Add To Cart | |
| 41 | 821530 - Coupling Disc | Add To Cart | |
| 42 | 643219 - Coupling Connector | Add To Cart | |
| 43 | 783458 - Coupling Adapter | Add To Cart | |
| 44 | 902318 - Coupling Spacer | Add To Cart | |
| 45 | 270346 - Screw | Add To Cart | |
| 46 | 243330 - Bolt | Add To Cart | |
| 47 | 257040 - Washer | Add To Cart | |
| 48 | 254450 - Nut | Add To Cart | |
| 49 | 381904 - Belt | Add To Cart | |
| 50 | 775003 - Washer | Call For Details | |
| 51 | 257030 - Washer | Add To Cart | |
| 52 | 724212 - Shield | Call For Details | |
| 53 | 882003 - Washer | Add To Cart | |
| 54 | 243365 - Bolt | Add To Cart | |
| 55 | 422750 - Idler Arm Bearing | Add To Cart | |
| 56 | 257410 - Washer | Add To Cart | |
| 57 | 254472 - Nut | Add To Cart |
