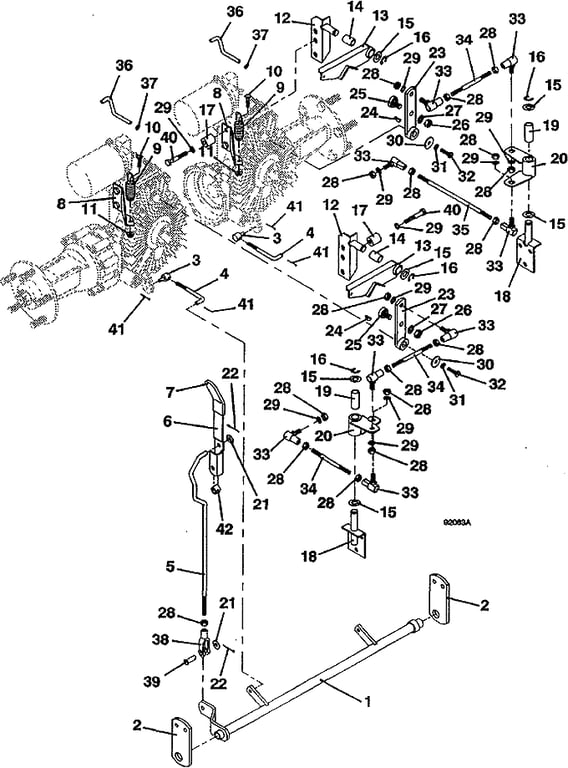

725 Drive Linkage - 1993
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643955 - 771 Brake Pivot | Add To Cart | |
| 2 | 783179 - Brake Pivot Rod Mount | Call For Details | |
| 3 | 880924 - Brake Linkage Pin | Add To Cart | |
| 4 | 730256 - Brake Linkage Rod | Add To Cart | |
| 5 | 730361 - 700 Brake Linkage | Add To Cart | |
| 6 | 729046 - 700 Brake Lever Assembly | Call For Details | |
| 7 | 422150 - Handle Grip | Add To Cart | |
| 8 | 729072 - Neutral Return Spring Bracket | Add To Cart | |
| 9 | 283823 - Extension Spring | Add To Cart | |
| 10 | 243030 - Hex Bolt | Add To Cart | |
| 11 | 253025 - Whiz Nut | Add To Cart | |
| 12 | 643603 - Neutral Return Pivot Mount | Add To Cart | |
| 13 | 603084 - Neutral Return Arm with Bearing | Add To Cart | |
| 14 | 422560 - Nylon Bearing | Add To Cart | |
| 15 | 257063 - Washer | Add To Cart | |
| 16 | 263500 - External Retainer | Add To Cart | |
| 17 | 902307 - Drive Mount Plate Spacer | Add To Cart | |
| 18 | 643627 - Control Linkage Pivot | Add To Cart | |
| 19 | 422585 - Nylon Bearing | Add To Cart | |
| 20 | 603567 - Linkage Pivot with Bearing | Add To Cart | |
| 21 | 257030 - Washer | Add To Cart | |
| 22 | 260624 - Cotter Pin | Add To Cart | |
| 23 | 643057 - 700 Control Arm | Call For Details | |
| 24 | 281823 - Woodruff Key | Add To Cart | |
| 25 | 603726 - Eccentric Roller Assembly | Add To Cart | |
| 26 | 254450 - Nut | Add To Cart | |
| 27 | 257412 - Lock Washer | Add To Cart | |
| 28 | 254441 - Nut | Add To Cart | |
| 29 | 257402 - Lock Washer | Add To Cart | |
| 30 | 774012 - Flat Washer | Add To Cart | |
| 31 | 257392 - Lock Washer | Add To Cart | |
| 32 | 243025 - Hex Bolt | Call For Details | |
| 33 | 265615 - righthand thread Ball Joint | Add To Cart | |
| 34 | 780160 - Ball Joint Rod | Add To Cart | |
| 35 | 780165 - Ball Joint Rod | Add To Cart | |
| 36 | 730088 - Dump Valve Lever | Add To Cart | |
| 37 | 262934 - Push-On Retainer | Add To Cart | |
| 38 | 265537 - Clevis Yoke | Add To Cart | |
| 39 | 261284 - Clevis Pin | Add To Cart | |
| 40 | 243225 - Hex Bolt | Add To Cart | |
| 41 | 260628 - Cotter Pin | Call For Details | |
| 42 | 423705 - Brake Lever Spacer | Add To Cart |
