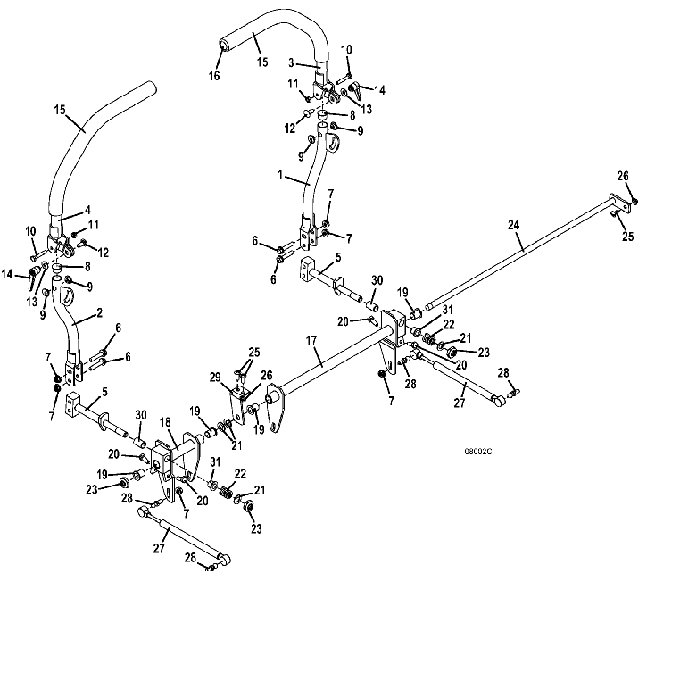

725DT6 Steering Assembly - 2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645748 - Lower Right Adjustable Steering Lever W/A | Add To Cart | |
| 2 | 645749 - Lower Left Folding Steering Lever W/A | Add To Cart | |
| 3 | 645744 - Upper Right Adjustable Steering Lever | Add To Cart | |
| 4 | 645745 - 700/900 Upper Left Adjustable Steering Lever W/A | Add To Cart | |
| 5 | 643926 - Adjustable Steering Lever Mount | Add To Cart | |
| 6 | 253195 - Hex Flange Whiz Bolt | Add To Cart | |
| 7 | 253035 - Whiz Nut | Add To Cart | |
| 8 | 422063 - Nylon Plug | Add To Cart | |
| 9 | 422508 - Step Bushing | Add To Cart | |
| 10 | 243035 - Hex Bolt | Add To Cart | |
| 11 | 253850 - Lock Nut | Add To Cart | |
| 12 | 247130 - Carriage Bolt | Add To Cart | |
| 13 | 257019 - Flat Washer | Add To Cart | |
| 14 | 254438 - Adjustable Lever Nut | Call For Details | |
| 15 | 422179 - Handle Grip | Call For Details | |
| 16 | 422095 - .75 ID Vinyl Cap | Call For Details | |
| 17 | 604606 - 700T Right Pivot with Stop & Bearings | Call For Details | |
| 18 | 604607 - 700T Left Pivot with Stop & Bearings | Call For Details | |
| 19 | 422559 - Sleeve Bearing w/Flange | Add To Cart | |
| 20 | 243197 - Hex Bolt | Add To Cart | |
| 21 | 257063 - Washer | Add To Cart | |
| 22 | 283324 - Compression Spring | Add To Cart | |
| 23 | 253470 - Nylon Insert Nut | Add To Cart | |
| 24 | 644601 - 700T Steering Pivot | Call For Details | |
| 25 | 253179 - Philips Truss Whiz Bolt | Add To Cart | |
| 26 | 253025 - Whiz Nut | Add To Cart | |
| 27 | 285032 - Reverse Damper with Ball Socket | Add To Cart | |
| 28 | 265680 - Ball Stud | Add To Cart | |
| 29 | 729404 - 700T Steering Rod Support | Call For Details | |
| 30 | 422557 - Sleeve Bearing | Add To Cart | |
| 31 | 422556 - Sleeve Bearing w/Flange | Add To Cart |
