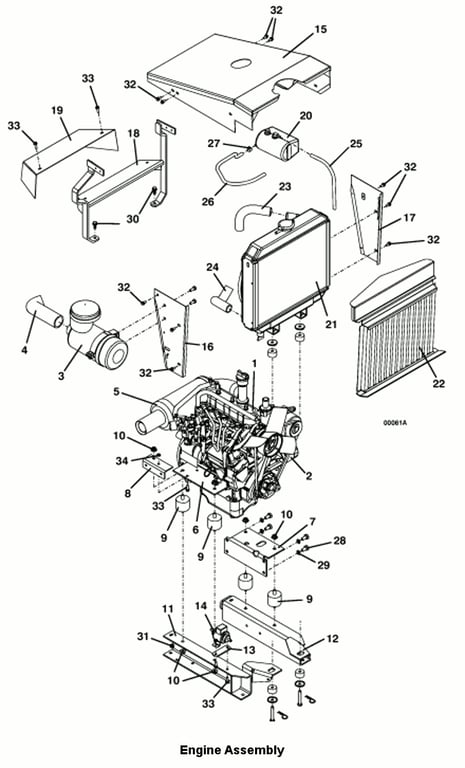

725G2 Engine Assembly - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 100171 - Kubota Gas Engine | Call For Details | |
| 2 | 100800 - Kubota Oil Filter | Add To Cart | |
| 3 | 100940 - Kubota Air Filter | Call For Details | |
| 4 | 424519 - Hose - Air Intake | Add To Cart | |
| 5 | 603590 - Muffler & Gasket Assembly | Add To Cart | |
| - | 101040 - Exhaust Flange Gasket | Add To Cart | |
| 6 | 643292 - Engine Upper Mount - RT | Add To Cart | |
| 7 | 643291 - Engine Upper Mount - LT | Add To Cart | |
| 8 | 724091 - Coil Bracket | Add To Cart | |
| 9 | 424078 - Vibration Isolator | Add To Cart | |
| 10 | 253043 - Nut Whiz | Add To Cart | |
| 11 | 643604 - Engine Lower Mount - RT | Add To Cart | |
| 12 | 643605 - Engine Lower Mount - LT | Add To Cart | |
| 13 | 782529 - Mount Plate - Fuel Pump | Add To Cart | |
| 14 | 101510 - Electric Fuel Pump | Call For Details | |
| 15 | 693300 - Hood - 700 w/Decals | Add To Cart | |
| 16 | 643799 - Grille Support RT | Call For Details | |
| 17 | 693260 - Grille Support LT w/Decal | Call For Details | |
| 18 | 643797 - Support Hood Rear | Add To Cart | |
| 19 | 643766 - Shield - Clutch | Add To Cart | |
| 20 | 422012 - Expansion Tank | Add To Cart | |
| 21 | 101610 - Kubota Radiator | Add To Cart | |
| 22 | 604381 - Grille Assembly w/Guard - 700 G2 | Add To Cart | |
| 23 | 101054 - Radiator Hose - Upper | Call For Details | |
| 24 | 101055 - Radiator Hose - Lower | Call For Details | |
| 25 | 821748 - Clear Vent Hose | Add To Cart | |
| 26 | 821749 - Hose | Add To Cart | |
| 27 | 280260 - Spring Hose Clamp | Add To Cart | |
| 28 | 271120 - Hex Bolt | Add To Cart | |
| 29 | 275580 - Lock Washer | Add To Cart | |
| 30 | 253192 - Flange Whiz Bolt | Add To Cart | |
| 31 | 253035 - Whiz Nut | Add To Cart | |
| 32 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 33 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 34 | 253025 - Whiz Nut | Add To Cart |
