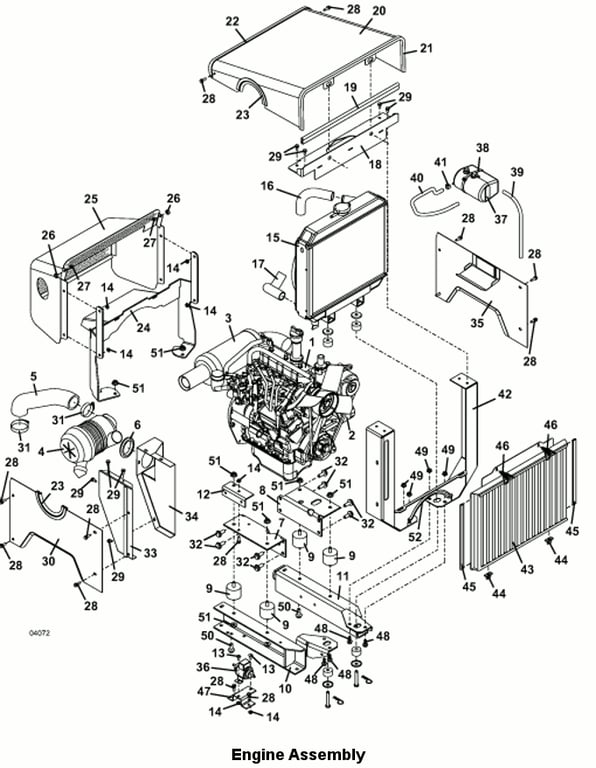

725G2 Engine Assembly - 2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 100171 - Kubota Gas Engine | Call For Details | |
| 2 | 100800 - Kubota Oil Filter | Add To Cart | |
| 3 | 603590 - Muffler & Gasket Assembly | Add To Cart | |
| - | 101040 - Exhaust Flange Gasket | Add To Cart | |
| 4 | 100208 - Air Cleaner | Add To Cart | |
| - | 100197 - Clip -Cover Air Cleaner | Add To Cart | |
| - | 100198 - Air Cleaner Cover | Call For Details | |
| - | 100202 - Dust Ejector | Call For Details | |
| - | 100218 - Weather Hood - 4 inch Air Cleaner | Call For Details | |
| - | 100942 - Air Filter - Primary - Short | Call For Details | |
| - | 100943 - Air Filter - Inner - Short | Call For Details | |
| 5 | 424524 - Hose - Air Intake 725G2 | Call For Details | |
| 6 | 424297 - Grommet | Add To Cart | |
| 7 | 643292 - Engine Upper Mount - RT | Add To Cart | |
| 8 | 643291 - Engine Upper Mount - LT | Add To Cart | |
| 9 | 424078 - Vibration Isolator | Add To Cart | |
| 10 | 643604 - Engine Lower Mount - RT | Add To Cart | |
| 11 | 643605 - Engine Lower Mount - LT | Add To Cart | |
| 12 | 724091 - Coil Bracket | Add To Cart | |
| 13 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 14 | 253025 - Whiz Nut | Add To Cart | |
| 15 | 101610 - Kubota Radiator | Add To Cart | |
| 16 | 101054 - Radiator Hose - Upper | Call For Details | |
| 17 | 101055 - Radiator Hose - Lower | Call For Details | |
| 18 | 644654 - Radiator Mount - Upper 725G2 | Call For Details | |
| 19 | 822512 - Radiator Trim Seal - Upper 19.5 | Add To Cart | |
| 20 | 644813 - Upper Hood - 725G2 | Call For Details | |
| 21 | 822639 - Front Hood Trim | Add To Cart | |
| 22 | 822634 - Front Hood Trim | Call For Details | |
| 23 | 822503 - Rear Hood Trim 725G2 | Call For Details | |
| 24 | 644807 - 722D Hood Support | Call For Details | |
| 25 | 644338 - Hood Rear | Add To Cart | |
| 26 | 902297 - Spacer | Add To Cart | |
| 27 | 253440 - Nylon Insert Nut | Add To Cart | |
| 28 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 29 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 30 | 722762 - Hood Side - RT | Call For Details | |
| 31 | 280303 - Screw Type Hose Clamp | Add To Cart | |
| 32 | 271121 - Hex Bolt | Add To Cart | |
| 33 | 644067 - Air Intake Box Mount 325/725G2 | Call For Details | |
| 34 | 644071 - Air Intake Box Cover | Call For Details | |
| 35 | 644314 - Left Hood Side 321D/325/725G2 | Call For Details | |
| 36 | 101510 - Electric Fuel Pump | Call For Details | |
| 37 | 422012 - Expansion Tank | Add To Cart | |
| 38 | 423154 - Tie | Add To Cart | |
| 39 | 821748 - Clear Vent Hose | Add To Cart | |
| 40 | 821749 - Fuel Line | Add To Cart | |
| 41 | 280260 - Spring Hose Clamp | Add To Cart | |
| 42 | 644657 - Radiator Mount - Lower 725G2 | Call For Details | |
| 43 | 644666 - Grille w/Guard - 725G2 | Call For Details | |
| 44 | 422090 - Rear Belt Shield Isolator | Add To Cart | |
| 45 | 822636 - Radiator Grille Trim | Add To Cart | |
| 46 | 281305 - Swell Latch Assembly | Add To Cart | |
| 47 | 724572 - Fuel Pump Mount 725/932 | Call For Details | |
| 48 | 253192 - Flange Whiz Bolt | Add To Cart | |
| 49 | 253035 - Whiz Nut | Add To Cart | |
| 50 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 51 | 253043 - Whiz Nut | Add To Cart | |
| 52 | 822509 - Lower Seal - 90 degree Bulb 7.0 | Call For Details |
